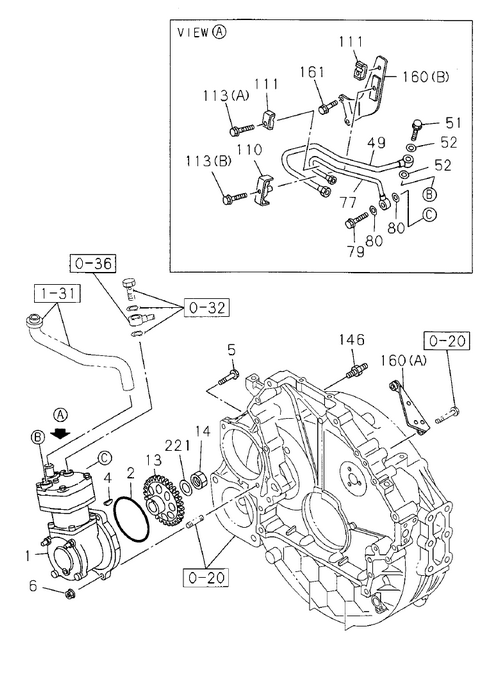

0-38 | AIR COMPRESSOR PIPING; ENGINE SIDE
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 221 | I0-91610 520-0 | WASHER; PL,GEAR | 1 | 1108- | A | ID=21 | ||
| 113 | I0-28650 640-0 | BOLT; CLIP,AIR PIPE | 1 | 1108- | A | (A) M6X40 FLANGE | ||
| 160 | I8-98074 255-0 | BRACKET; AIR PIPE | 1 | 1108- | A | (B) | ||
| 4 | I9-08055 516-0 | KEY; INJ PUMP GEAR | 1 | 1108- | A | |||
| 113 | I0-28050 640-0 | BOLT; CLIP,AIR PIPE | 1 | 1108- | A | (B) M6X40 FLANGE | ||
| 13 | I8-94394 511-4 | GEAR; AIR CMPR DRIVE | 1 | 1108- | A | Z=49 | ||
| 77 | I8-97618 724-0 | PIPE; AIR,GOV | 1 | 1108- | A | |||
| 52 | I9-09571 424-0 | GASKET; EYE BOLT,AIR PIPE | 2 | 1108- | A | ID=24.5 OD=32 | ||
| 1 | I8-98187 299-0 | COMPRESSOR ASM; AIR | 1 | 1108-1108 | A | |||
| 110 | I8-94393 037-0 | CLIP; AIR PIPE | 1 | 1108- | A | |||
| 146 | I1-09049 038-1 | STUD; AIR CMPR | 1 | 1108- | A | M10X16,M12X70 L=97.7 | ||
| 5 | I0-28151 270-0 | BOLT; AIR CMPR FIX | 2 | 1108- | A | M12X70 FLANGE | ||
| 160 | I8-97614 182-2 | BRACKET; AIR PIPE | 1 | 1108- | A | (A) | ||
| 2 | I1-09623 570-0 | GASKET; AIR CMPR | 1 | 1108- | A | ID=162.6 ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 161 | I0-28050 816-0 | BOLT; BRKT,AIR PIPE | 2 | 1108- | A | M8X16 FLANGE | ||
| 6 | I0-91180 212-0 | NUT; AIR CMPR | 1 | 1108- | A | M12 FLANGE | ||
| 1 | I8-98187 299-0 | COMPRESSOR ASM; AIR | 1 | 1108-1108 | A | |||
| 49 | I8-97618 722-0 | PIPE; AIR,CHARGE | 1 | 1108- | A | |||
| 111 | I8-98029 953-1 | CLIP; AIR PIPE | 2 | 1108- | A | |||
| 79 | I8-98037 824-0 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 1108- | A | M10X23 | ||
| 1 | I8-98187 299-0 | COMPRESSOR ASM; AIR | 1 | 1108- | A | |||
| 80 | I1-09630 083-0 | GASKET; AIR PIPE TO CMPR | 2 | 1108- | A | ID=10.2 OD=15.2 | ||
| 51 | I1-09675 175-2 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 1108- | A | M24X39 | ||
| 14 | I0-91110 520-0 | NUT; GEAR | 1 | 1108- | A | M2 0 |
