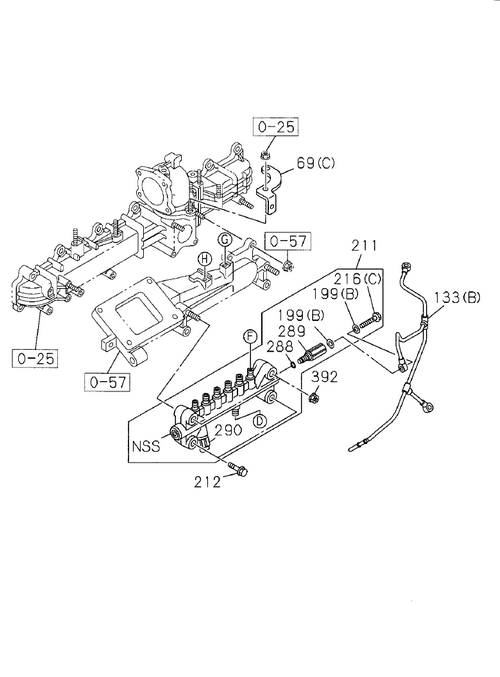

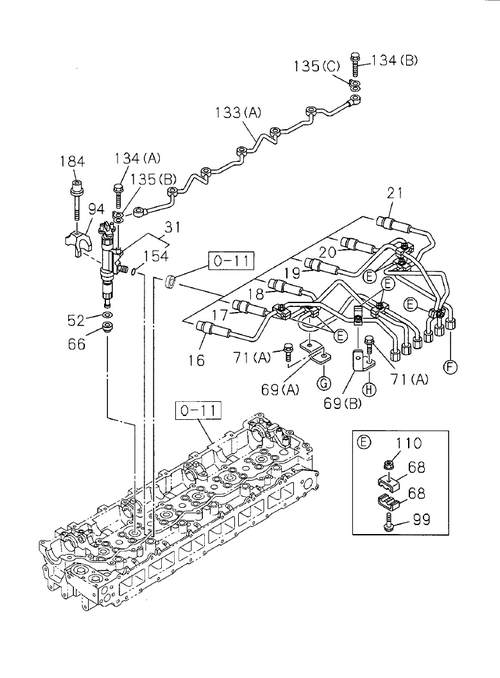

0-40 | FUEL INJECTION SYSTEM
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 69 | I8-98049 015-0 | BRACKET; INJ PIPE CLIP | 1 | 1108- | A | (A) | ||
| 290 | I8-98119 790-0 | SENSOR; PRESS | 1 | 1108- | A | |||
| 135 | I8-98065 992-0 | GASKET; JOINT BOLT,LEAK OFF PIPE | 6 | 1108- | A | (B) ID=8.3 | ||
| 131 | I8-98000 011-2 | CLIP; OVERFLOW LEAK OFF | 1 | 1108- | A | (B) | ||
| 16 | I8-98271 207-0 | PIPE; INJ NO.1 | 1 | 1108- | A | |||
| 2 | I8-94399 256-0 | BOLT; INJ PUMP | 3 | 1108- | A | M8X28 | ||
| 131 | I8-98000 010-2 | CLIP; OVERFLOW LEAK OFF | 1 | 1108- | A | (A) | ||
| 66 | I8-98079 248-0 | GASKET; INJ NOZZLE | 6 | 1108- | A | ID=9.2 T=8.1 | ||
| 216 | I8-98035 828-0 | BOLT; EYE | 1 | 1108- | A | (C) | ||
| 21 | I8-98271 212-0 | PIPE; INJ NO.6 | 1 | 1108- | A | |||
| 20 | I8-98271 211-0 | PIPE; INJ NO.5 | 1 | 1108- | A | |||
| 110 | I0-91180 106-0 | NUT; CLIP | 5 | 1108- | A | M6 FLANGE | ||
| 121 | I8-98126 331-0 | PIPE; FUEL,FEED PUMP,SUCTION | 1 | 1108- | A | |||
| 382 | I8-98161 995-0 | KEY; DRIVE SHAFT | 1 | 1108- | A | |||
| 52 | I8-94173 412-0 | GASKET; SLEEVE | 6 | 1108- | A | ID=23.3 ALSO INCLUDED IN GASKET SET(ENG. & HEAD) | ||
| 71 | I0-28151 200-0 | BOLT; BRKT | 1 | 1108- | A | (B) M12X100 FLANGE | ||
| 135 | I8-98231 393-1 | GASKET; JOINT BOLT,LEAK OFF PIPE | 1 | 1302- | A | (C ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) | ||
| 216 | I8-97351 388-0 | BOLT; EYE | 1 | 1108- | A | (B) | ||
| 6 | I8-97601 154-1 | BRACKET; INJ PUMP TO C/BL | 1 | 1108- | A | |||
| 424 | I8-98145 449-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 1108- | A | |||
| 135 | I8-98079 755-0 | GASKET; JOINT BOLT,LEAK OFF PIPE | 1 | 1108- | A | (A) ID=10.2 OD=17 | ||
| 289 | I8-98032 549-0 | LIMITER; FUEL PRESS | 1 | 1108- | A | |||
| 424 | I8-98145 449-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 1108- | A | |||
| 69 | I8-98038 941-0 | BRACKET; INJ PIPE CLIP | 1 | 1108- | A | (C) | ||
| 288 | I1-15641 046-0 | GASKET | 1 | 1108- | A | ID=11 OD=16.3 | ||
| 17 | I8-98271 208-0 | PIPE; INJ NO.2 | 1 | 1108- | A | |||
| 329 | I9-09566 110-0 | GASKET; SENSOR,FUEL TEMP | 1 | 1108- | A | |||
| 133 | I8-98203 705-1 | PIPE; INJ NOZZLE LEAK OFF | 1 | 1207- | A | |||
| 1 | I8-97605 946-8 | PUMP ASM; INJ | 1 | 1108- | A | |||
| 216 | I5-15759 003-0 | BOLT; EYE | 1 | 1108- | A | (A) | ||
| 199 | I1-15619 507-0 | GASKET; EYE BOLT | 2 | 1108- | A | (A) ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 154 | I0-95690 111-0 | GASKET; CONNECTOR | 6 | 1108- | A | ID=11 . 0 ALSO INCLUDED IN GASKET SET(ENG. & HEAD) | ||
| 69 | I8-98059 807-0 | BRACKET; INJ PIPE CLIP | 1 | 1108- | A | (D) | ||
| 31 | I8-97609 789-6 | NOZZLE ASM; INJ | 6 | 1108- | A | |||
| 71 | I0-28151 016-0 | BOLT; BRKT | 1 | 1108- | A | (C) M10X16 FLANGE | ||
| 134 | I8-94396 711-0 | BOLT; JOINT,LEAK OFF PIPE | 2 | 1108- | A | (B) M10X21 FLANGE | ||
| 271 | I8-98031 844-0 | GASKET; INJ PUMP | 1 | 1108- | A | (B) ID=52 | ||
| 94 | I8-98028 999-1 | BRACKET; INJ NOZZLE | 6 | 1108- | A | |||
| 184 | I8-98008 895-0 | BOLT; NOZZLE HOLDER | 6 | 1108- | A | M8X54 | ||
| 20 | I8-98271 211-0 | PIPE; INJ NO.5 | 1 | 1108- | A | |||
| 216 | I8-98035 828-0 | BOLT; EYE | 1 | 1108- | A | (C) | ||
| 133 | I8-94391 311-0 | PIPE; INJ NOZZLE LEAK OFF | 1 | 1108- | A | (A) | ||
| 99 | I0-28050 635-0 | BOLT; CLIP,INJ,PIPE | 3 | 1108- | A | M6X35 FLANGE | ||
| 18 | I8-98271 209-0 | PIPE; INJ NO.3 | 1 | 1108- | A | |||
| 212 | I8-97372 243-0 | BOLT; RAIL ASM | 2 | 1108- | A | M10X5 0 FLANGE | ||
| 31 | I8-97609 789-6 | NOZZLE ASM; INJ | 6 | 1108- | A | |||
| 169 | I0-91180 112-0 | NUT; BRKT | 1 | 1108- | A | (B) M12 FLANGE IDN | ||
| 210 | I8-98059 805-0 | PIPE; INJ,C/R | 1 | 1108- | A | |||
| 205 | I8-98023 581-0 | SENSOR; FUEL TEMP | 1 | 1108- | A | |||
| 71 | I0-28050 816-0 | BOLT; BRKT | 2 | 1108- | A | (A) M8X16 FLANGE | ||
| 211 | I8-97609 980-2 | RAIL ASM; COMMON | 1 | 1108- | A | |||
| 68 | I8-98039 293-0 | CLIP; INJ PIPE | 14 | 1108- | A | |||
| 135 | I8-97240 975-0 | GASKET; JOINT BOLT,LEAK OFF PIPE | 1 | 1108- | A | (C) ID=10.6 ALSO INCLUDED IN GASKET SET(ENG. & HEAD) | ||
| 69 | I8-98038 940-0 | BRACKET; INJ PIPE CLIP | 1 | 1108- | A | (B) | ||
| 134 | I1-09675 037-1 | BOLT; JOINT,LEAK OFF PIPE | 6 | 1108- | A | (A) M8X18 EYE BOLT | ||
| 199 | I8-97602 218-0 | GASKET; EYE BOLT | 4 | 1108- | A | (B) | ||
| 169 | I0-91180 110-0 | NUT; BRKT | 2 | 1108- | A | (A) M10 FLANGE | ||
| 19 | I8-98298 614-0 | PIPE; INJ NO.4 | 1 | 1108- | A | |||
| 16 | I8-98271 207-0 | PIPE; INJ NO.1 | 1 | 1108- | A | |||
| 392 | I0-91180 110-0 | NUT; RAIL ASM | 2 | 1108- | A | M10 FLANGE | ||
| 17 | I8-98271 208-0 | PIPE; INJ NO.2 | 1 | 1108- | A | |||
| 18 | I8-98271 209-0 | PIPE; INJ NO.3 | 1 | 1108- | A | |||
| 133 | I8-98059 804-0 | PIPE; INJ NOZZLE LEAK OFF | 1 | 1108- | A | (B) | ||
| 271 | I1-09623 464-0 | GASKET; INJ PUMP | 1 | 1108- | A | (A) ID=139.6 | ||
| 1 | I8-97605 946-8 | PUMP ASM; INJ | 1 | 1108- | A |
