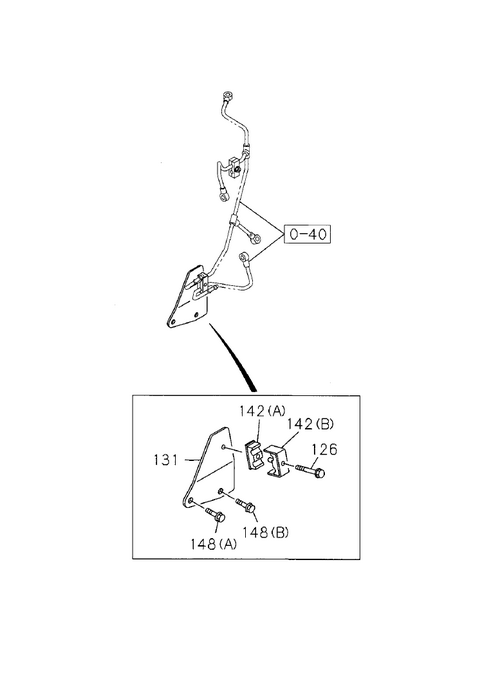

0-42 | FUEL PUMP AND PIPE
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 148 | I0-28151 016-0 | BOLT; BRKT | 1 | 1108- | A | (B) M10X16 FLANGE | ||
| 126 | I0-28650 635-0 | BOLT; CLIP, FUEL PIPE | 1 | 1108- | A | M6X3 5 FLANGE | ||
| 142 | I8-94393 280-3 | CLIP; FUEL PIPE | 1 | 1108- | A | (B) ID=10 & 10 L=25 | ||
| 131 | I8-98059 806-0 | BRACKET; FUEL PIPE CLIP | 1 | 1108- | A | |||
| 142 | I8-98000 011-2 | CLIP; FUEL PIPE | 1 | 1310- | AB | (B) | ||
| 148 | I0-28151 025-0 | BOLT; BRKT | 1 | 1108- | A | (A) M10X25 FLANGE | ||
| 142 | I8-98000 010-2 | CLIP; FUEL PIPE | 1 | 1310- | AB | (A) | ||
| 142 | I1-09701 180-0 | CLIP; FUEL PIPE | 1 | 1108- | A | (A) |
