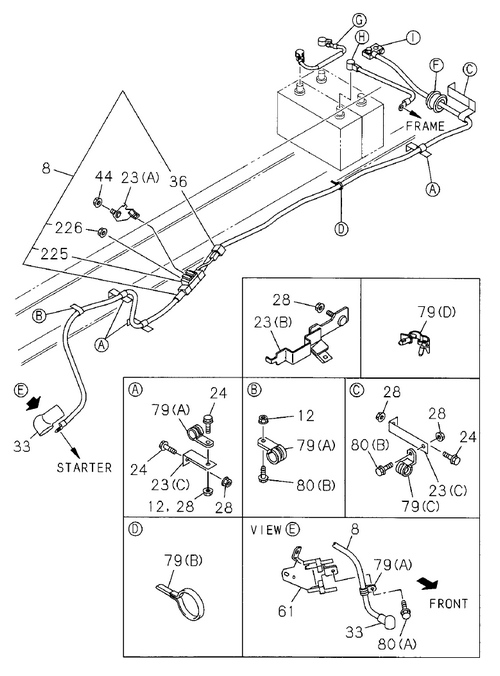

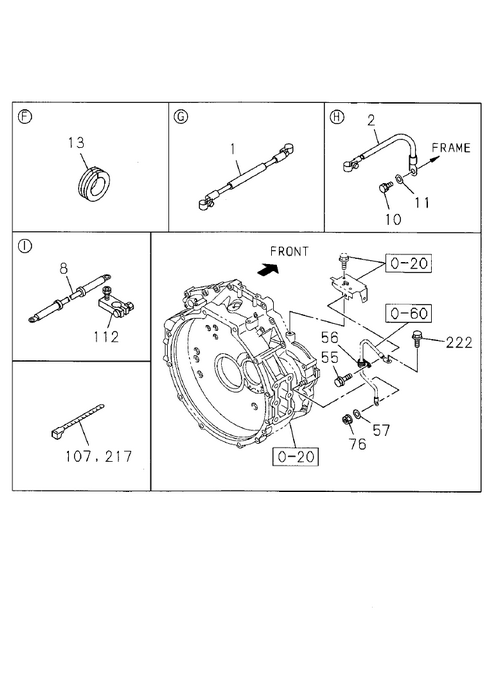

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I8-98195 168-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1108- | A | |||
| 23 | I1-47475 304-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1108- | A | |||
| 23 | I1-53441 518-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1108- | A | |||
| 107 | I5-09707 031-1 | CLIP; BAND | 1 | 1108- | A | L=140 IDN | ||
| 36 | I8-97615 498-1 | FUSIBLE LINK; BATTERY | 1 | 1108- | A | |||
| 76 | I7-05110 010-A | NUT; BATTERY CABLE | 1 | 1108- | A | |||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 1108- | A | M10X25 W/LK&PL WASHER | ||
| 33 | I1-82699 431-0 | CAP; INSULATOR | 1 | 1108- | A | |||
| 79 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 1108- | A | (A) ID=16 L=28 | ||
| 226 | I8-94424 179-0 | NUT; FUSIBLE LINK | 1 | 1108- | A | M6 W/LK WASHER | ||
| 76 | I7-05110 010-A | NUT; BATTERY CABLE | 1 | 1108- | A | |||
| 8 | I8-98182 518-A | CABLE; BATTERY,STARTER | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) IDN | ||
| 225 | I8-98029 689-0 | BLOCK; TERMINAL | 1 | 1108- | A | |||
| 79 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 1108- | A | (A) ID=16 L=28 | ||
| 8 | I8-98186 400-A | CABLE; BATTERY,STARTER | 1 | 1108- | A | WHEEL BASE 7100MM(71W) | ||
| 44 | I7-05110 010-A | NUT; BRKT | 1 | 1108- | A | |||
| 2 | I8-98035 647-A | CABLE; BATTERY | 1 | 1108- | A | |||
| 2 | I8-98035 647-A | CABLE; BATTERY | 1 | 1108- | A | |||
| 44 | I7-05110 010-A | NUT; BRKT | 1 | 1108- | A | |||
| 217 | I5-09707 030-1 | CLIP; BAND,CABLE | 1 | 1108- | A | L=250 IDN | ||
| 10 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 1108- | A | |||
| 23 | I1-82699 085-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1108- | A | |||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 1108- | A | M10X25 W/LK&PL WASHER | ||
| 13 | I1-09332 112-0 | GROMMET; BATTERY CABLE | 1 | 1108- | A | |||
| 61 | I8-98051 379-1 | BRACKET; BATTERY CABLE | 1 | 1108- | A | |||
| 8 | I8-98186 230-A | CABLE; BATTERY,STARTER | 1 | 1108- | A | WHEEL BASE 5500MM(55W) | ||
| 8 | I8-98186 230-A | CABLE; BATTERY,STARTER | 1 | 1108- | A | WHEEL BASE 5500MM(55W) | ||
| 23 | I8-98044 882-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1108- | A | |||
| 217 | I1-09707 183-0 | CLIP; BAND,CABLE | 1 | 1108- | A | WHEEL BASE 5500MM(55W) L=350 | ||
| 24 | I0-28650 830-0 | BOLT; BRKT TO FRAME | 3 | 1108- | A | |||
| 1 | I8-98025 412-A | CABLE; BATTERY | 1 | 1108- | A | |||
| 79 | I1-09700 109-1 | CLIP; BATTERY CABLE | 1 | 1108- | A | |||
| 79 | I1-09709 293-0 | CLIP; BATTERY CABLE | 3 | 1108- | A | (D) ID=13-18 L=26 | ||
| 80 | I0-28050 816-0 | BOLT; BATTERY CABLE CLIP | 1 | 1108- | A | (A) M8X16 FLANGE | ||
| 23 | I8-98201 490-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) (D) | ||
| 1 | I8-98025 412-A | CABLE; BATTERY | 1 | 1108- | A | |||
| 8 | I8-98186 400-A | CABLE; BATTERY,STARTER | 1 | 1108- | A | WHEEL BASE 7100MM(71W) | ||
| 56 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 1108- | A | |||
| 11 | I1-09503 265-0 | WASHER; BATTERY CABLE EARTH | 1 | 1108- | A | |||
| 57 | I0-91610 610-0 | WASHER; PL,BATTERY CABLE | 1 | 1108- | A | |||
| 12 | I0-91180 108-0 | NUT; BATTERY CABLE CLIP | 3 | 1108- | A | |||
| 79 | I8-98019 191-0 | CLIP; BATTERY CABLE | 2 | 1108- | A | (A) ID=21 L=24 | ||
| 10 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 1108- | A | |||
| 80 | I0-28650 825-0 | BOLT; BATTERY CABLE CLIP | 3 | 1108- | A | (B) M8X25 FLANGE IDN | ||
| 55 | I0-28050 816-0 | BOLT; CLIP,BATTERY CABLE | 1 | 1108- | A | |||
| 56 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 1108- | A | |||
| 23 | I1-53441 518-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1108- | A | |||
| 79 | I1-09700 485-0 | CLIP; BATTERY CABLE | 1 | 1108- | A | |||
| 28 | I0-91180 108-0 | NUT; BRKT TO FRAME | 5 | 1108- | A | |||
| 112 | I8-97365 771-0 | TERMINAL; BATTERY | 1 | 1108- | A | |||
| 8 | I8-98182 518-A | CABLE; BATTERY,STARTER | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) IDN |
