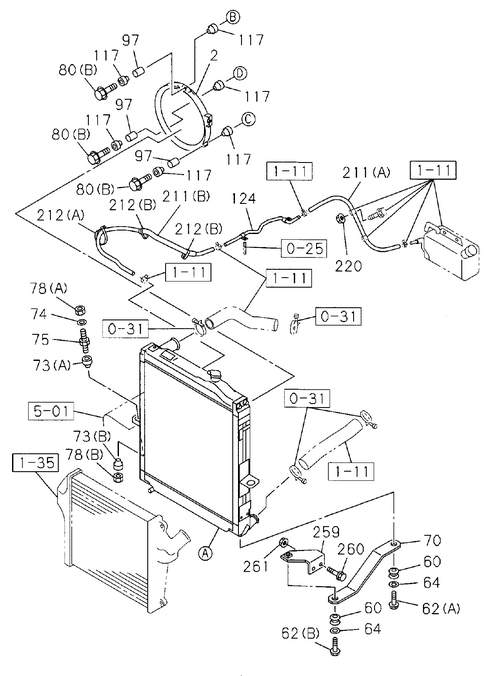

| 259 |
I8-98071 822-0 |
|
BRACKET; RAD STAY |
1 |
1108- |
R |
A |
|
| 70 |
I8-98004 132-2 |
|
STAY; RAD |
2 |
1108- |
|
A |
|
| 211 |
I8-98073 545-A |
A |
HOSE; RAD TO PIPE |
1 |
1310- |
|
B |
L=970 IDN |

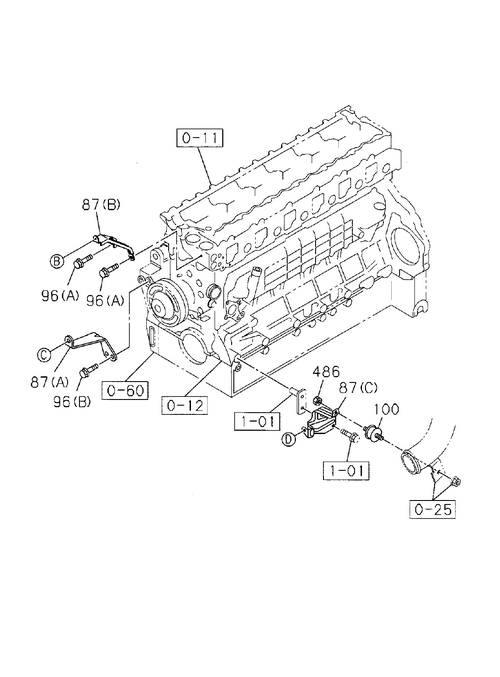

| 87 |
I8-97602 988-0 |
|
STAY; FAN GUIDE |
1 |
1108- |
|
A |
(A) |
| 97 |
I9-09651 072-0 |
|
TUBE; DIST,FAN GUIDE |
3 |
1108- |
|
A |
|
| 73 |
I1-21467 011-1 |
|
RUBBER; CUSHION,RAD MTG |
2 |
1108- |
|
A |
(B) T=24 |
| 2 |
I8-94393 779-1 |
|
GUIDE; FAN |
1 |
1108- |
|
A |
|
| 261 |
I0-91180 108-0 |
|
NUT; BRKT |
4 |
1108- |
|
A |
M8 FLANGE |
| 87 |
I8-94393 776-1 |
|
STAY; FAN GUIDE |
1 |
1108- |
|
A |
(B) |

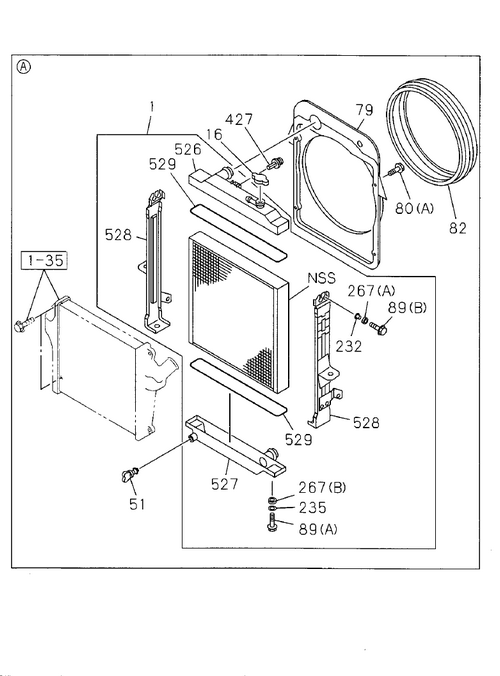

| 528 |
I8-98042 839-2 |
|
PLATE; SIDE,RADIATOR CORE |
1 |
1108- |
L |
A |
|
| 1 |
I8-98042 837-B |
A |
RADIATOR ASM |
1 |
1108- |
|
A |
|
| 1 |
I8-98042 837-B |
A |
RADIATOR ASM |
1 |
1108- |
|
A |
|
| 267 |
I1-21469 130-0 |
|
RUBBER; CUSHION |
4 |
1108- |
|
A |
(A) |
| 1 |
I8-98185 752-B |
A |
RADIATOR ASM |
1 |
1310- |
|
B |
IDN |
| 211 |
I8-98119 375-A |
A |
HOSE; RAD TO PIPE |
1 |
1108- |
|
A |
(A) |
| 78 |
I0-91180 212-0 |
|
NUT; CUSHION RUBBER |
2 |
1108- |
|
A |
(B) M12 FLANGE |
| 79 |
I8-98004 207-0 |
|
GUIDE; FAN,RAD |
1 |
1108- |
|
A |
|
| 527 |
I8-98004 203-0 |
|
TANK; LWR,RADIATOR CORE |
1 |
1108- |
|
A |
|
| 64 |
I0-91610 612-0 |
|
WASHER; STAY TO RAD |
4 |
1108- |
|
A |
ID=12.5 OD=26 |
| 87 |
I8-94393 778-2 |
|
STAY; FAN GUIDE |
1 |
1108- |
|
A |
(C) |
| 73 |
I1-21467 004-0 |
|
RUBBER; CUSHION,RAD MTG |
2 |
1108- |
|
A |
(A) T=14 |
| 212 |
I5-09707 031-1 |
|
CLIP; HOSE |
1 |
1108- |
|
A |
(B) L=140 IDN |
| 1 |
I8-98042 837-B |
|
RADIATOR ASM |
1 |
1108- |
|
A |
|
| 16 |
I8-98096 226-0 |
|
CAP; RAD |
1 |
1310- |
|
B |
|
| 75 |
I1-21466 007-3 |
|
BOLT; CUSHION RUBBER,RAD MTG |
2 |
1108- |
|
A |
M12X26.5,M10X19 L=86.5 |
| 212 |
I5-09707 030-1 |
|
CLIP; HOSE |
2 |
1108- |
|
A |
(A) L=250 IDN |
| 96 |
I0-28151 016-0 |
|
BOLT; STAY FIX |
2 |
1108- |
|
A |
(A) M10X16 FLANGE |
| 51 |
I8-97171 437-0 |
|
PLUG; DRAIN |
1 |
1108- |
|
A |
W/GASKET |
| 528 |
I8-98042 838-3 |
|
PLATE; SIDE,RADIATOR CORE |
1 |
1108- |
R |
A |
|
| 528 |
I8-98010 372-4 |
|
PLATE; S::DI:,RADIATOR CORE |
1 |
1310- |
|
B |
IDN |
| 528 |
I8-98185 754-0 |
|
PLATE; S::DI:,RADIATOR CORE |
1 |
1310- |
|
B |
IDN |
| 80 |
I0-28650 830-0 |
|
BOLT; FAN GUIDE |
3 |
1108- |
|
A |
(B) M8X30 FLANGE |
| 80 |
I8-98046 222-0 |
|
BOLT; FAN GUIDE |
4 |
1108- |
|
A |
(A) M8X14 |
| 16 |
I8-97239 187-0 |
|
CAP; RAD |
1 |
1108- |
|
A |
|
| 96 |
I0-28050 816-0 |
|
BOLT; STAY FIX |
2 |
1108- |
|
A |
(B) M8X16 FLANGE |
| 78 |
I7-05110 010-A |
|
NUT; CUSHION RUBBER |
2 |
1108- |
|
A |
(A) M10 FLANGE |
| 82 |
I8-98004 211-0 |
|
COVER; FAN,RAD |
1 |
1108- |
|
A |
|
| 235 |
I1-21469 133-0 |
|
WASHER; CUSHION RUBBER |
2 |
1108- |
|
A |
|
| 74 |
I1-09503 154-2 |
|
WASHER; PL,CUSHION RUBBER |
2 |
1108- |
|
A |
ID=8.4 OD=22 |
| 220 |
I0-91180 108-0 |
|
NUT; CLIP |
1 |
1108- |
|
A |
M8 FLANGE |
| 427 |
I1-09470 009-0 |
|
CLIP; FAN GUIDE |
1 |
1108- |
|
A |
|
| 267 |
I1-21469 131-0 |
|
RUBBER; CUSHION |
2 |
1108- |
|
A |
(B) |
| 100 |
I8-98148 109-0 |
|
RUBBER; MTG |
1 |
1108- |
|
A |
|
| 78 |
I7-05110 010-A |
C |
NUT; CUSHION RUBBER |
2 |
1108- |
|
A |
(A) M10 FLANGE |
| 60 |
I1-09332 117-0 |
|
GROMMET |
4 |
1108- |
|
A |
|
| 117 |
I8-94395 766-0 |
|
RUBBER; MTG,FAN GUIDE |
6 |
1108- |
|
A |
|
| 260 |
I0-28650 820-0 |
|
BOLT; BRKT |
4 |
1108- |
|
A |
M8X2 0 FLANGE IDN |
| 211 |
I8-98073 544-A |
|
HOSE; RAD TO PIPE |
1 |
1108- |
|
A |
(B) L=940 |
| 1 |
I8-98042 837-B |
|
RADIATOR ASM |
1 |
1108- |
|
A |
|
| 89 |
I1-21469 153-0 |
|
BOLT 0-28050-612-0 |
4 |
1108- |
|
A |
(B) M8X25 |
| 124 |
I8-97483 408-0 |
|
PIPE; WATER,TANK TO RAD |
1 |
1108- |
|
A |
|
| 211 |
I8-98073 544-A |
A |
HOSE; RAD TO PIPE |
1 |
1108- |
|
A |
(B) L=940 |
| 79 |
I8-98010 384-0 |
|
GUIDE; FAN,RAD |
1 |
1310- |
|
B |
IDN |
| 1 |
I8-98185 752-B |
|
RADIATOR ASM |
1 |
1310- |
|
B |
IDN |
| 529 |
I8-98004 206-0 |
|
GASKET; CORE,RADIATOR |
2 |
1108- |
|
A |
|
| 62 |
I1-09009 020-1 |
|
BOLT; STAY |
2 |
1108- |
|
A |
(A) M8X30 |
| 232 |
I8-98141 232-0 |
|
COLLAR; DIST,CUSHION RUBBER |
4 |
1108- |
|
A |
|
| 211 |
I8-98119 375-A |
|
HOSE; RAD TO PIPE |
1 |
1108- |
|
A |
(A) |
| 526 |
I8-98004 202-2 |
|
TANK; UPR,RADIATOR CORE |
1 |
1108- |
|
A |
|
| 62 |
I1-09009 175-0 |
|
BOLT; STAY |
2 |
1108- |
|
A |
(B) M8X26 |
| 211 |
I8-98073 545-A |
|
HOSE; RAD TO PIPE |
1 |
1310- |
|
B |
L=970 IDN |
| 259 |
I8-98071 821-0 |
|
BRACKET; RAD STAY |
1 |
1108- |
L |
A |
|
| 89 |
I0-28050 612-0 |
|
BOLT |
2 |
1108- |
|
A |
(A) M6X12 FLANGE |
| 486 |
I0-91180 108-0 |
|
NUT; MTG RUBBER |
1 |
1108- |
|
A |
M8 FLANGE |
