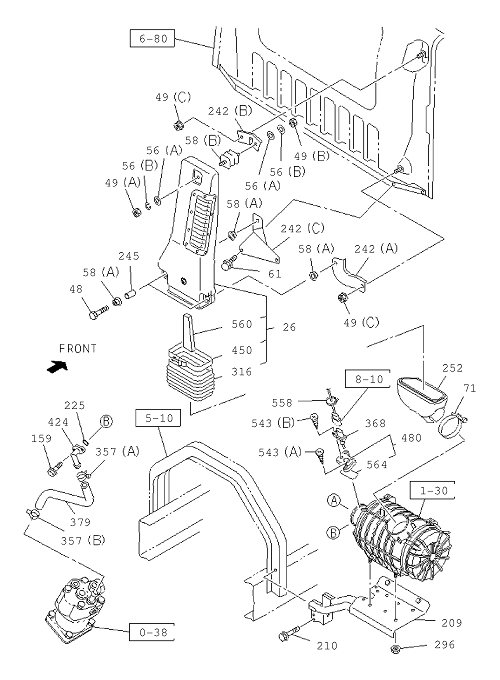

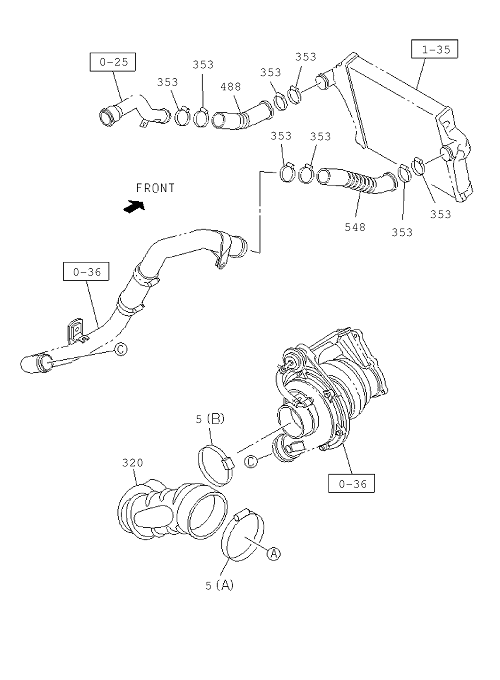

1-31 | AIR DUCT
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | I8-94327 073-0 | C | NUT; AIR DUCT | 2 | 1108- | A | (C) M8 FLANGE IDN | |
| 357 | I8-94342 958-0 | C | CLIP; RUBBER HOSE | 1 | 1108- | A | (A) ID=26 | |
| 242 | I8-98019 301-3 | BRACKET; AIR DUCT | 1 | 1108- | A | (B) | ||
| 368 | I8-98065 377-0 | SENSOR; TEMP | 1 | 1108- | A | |||
| 296 | I0-91180 108-0 | NUT; ACL | 4 | 1108- | A | M8 FLANGE | ||
| 58 | I8-98125 944-A | SUPPORT; AIR INL DUCT | 1 | 1108- | A | (B) | ||
| 320 | I8-98073 259-A | A | HOSE; CONN,ACL | 1 | 1310- | B | ||
| 56 | I0-91610 708-0 | WASHER; LK,AIR INT DUCT | 2 | 1108- | A | (B) ID=8.4 OD=22 | ||
| 5 | I8-98133 365-0 | CLIP; AIR DUCT | 1 | 1108- | A | (B) ID=90-110 | ||
| 48 | I1-09030 044-1 | BOLT; AIR DUCT | 2 | 1108- | A | M10X26 | ||
| 558 | I5-09707 030-1 | CLIP; AIR FLOW SENSOR | 2 | 1108- | A | L=250 IDN | ||
| 357 | I8-94342 958-0 | CLIP; RUBBER HOSE | 1 | 1108- | A | (A) ID=26 | ||
| 58 | I1-14119 267-0 | SUPPORT; AIR INL DUCT | 4 | 1108- | A | (A) OD=40 T=18.5 | ||
| 320 | I8-98073 257-A | A | HOSE; CONN,ACL | 1 | 1108- | A | ||
| 379 | I8-97639 463-A | HOSE; RUBBER | 1 | 1310- | B | IDN | ||
| 210 | I0-28651 025-0 | BOLT; ACL BRKT | 4 | 1108- | A | M10X2 5 FLANGE IDN | ||
| 245 | I1-79998 228-0 | PIECE; DIST,AIR DUCT | 2 | 1108- | A | |||
| 379 | I8-97639 463-A | A | HOSE; RUBBER | 1 | 1310- | B | IDN | |
| 357 | I8-97354 979-0 | CLIP; RUBBER HOSE | 1 | 1108- | A | (B) ID=29.5 | ||
| 450 | I1-09707 157-0 | CLAMP; HOSE | 1 | 1108- | A | |||
| 49 | I8-94327 073-0 | NUT; AIR DUCT | 2 | 1108- | A | (C) M8 FLANGE IDN | ||
| 252 | I8-98021 989-1 | DUCT; AIR INT | 1 | 1310- | B | |||
| 49 | I0-91110 508-0 | C | NUT; AIR DUCT | 1 | 1108- | A | (B) M8 FLANGE | |
| 26 | I8-98010 361-2 | DUCT; AIR INT | 1 | 1108- | A | |||
| 543 | I0-36230 412-0 | SCREW; SENSOR | 2 | 1108- | A | (A) M4X12 W/LK&PL WASHER | ||
| 252 | I8-98012 861-1 | DUCT; AIR INT | 1 | 1108- | A | |||
| 61 | I8-98074 570-0 | BOLT; BRKT,AIR DUCT | 2 | 1108- | A | M8X25 FLANGE | ||
| 5 | I8-98133 359-0 | CLIP; AIR DUCT | 1 | 1108- | A | (A) ID=110-130 | ||
| 320 | I8-98073 259-A | HOSE; CONN,ACL | 1 | 1310- | B | |||
| 316 | I8-98152 269-0 | RUBBER; CUSHION,DUCT | 1 | 1108- | A | |||
| 424 | I8-98081 834-0 | PIPE; AIR,INL | 1 | 1108- | A | |||
| 379 | I8-97619 194-A | HOSE; RUBBER | 1 | 1108- | A | |||
| 543 | I0-36220 514-0 | SCREW; SENSOR | 1 | 1108- | A | (B) M5X14 W/LK WASHER | ||
| 480 | I8-98086 417-0 | ADAPTER | 1 | 1108- | A | |||
| 71 | I8-98133 367-0 | CLIP; AIR DUCT | 1 | 1108- | A | ID=120-140 | ||
| 320 | I8-98073 257-A | HOSE; CONN,ACL | 1 | 1108- | A | |||
| 49 | I0-91110 508-0 | NUT; AIR DUCT | 1 | 1108- | A | (B) M8 FLANGE | ||
| 488 | I8-98012 936-1 | HOSE; RUBBER,PIPE | 1 | 1108- | A | |||
| 225 | I1-09623 057-0 | GASKET; AIR PIPE | 1 | 1108- | A | ID=24. 4 | ||
| 5 | I8-98133 360-0 | CLIP; AIR DUCT | 1 | 1310- | B | ID=130-150 | ||
| 548 | I8-98181 974-A | HOSE; RUBBER,TURBO TO INL PIPE | 1 | 1108- | A | |||
| 159 | I0-28050 616-0 | BOLT; AIR PIPE | 2 | 1108- | A | M6X16 FLANGE IDN | ||
| 558 | I1-09707 107-1 | CLIP; AIR FLOW SENSOR | 1 | 1108- | A | L=600 | ||
| 56 | I1-09985 177-0 | WASHER; LK,AIR INT DUCT | 2 | 1108- | A | (A) ID=8.2 | ||
| 242 | I8-98019 302-1 | BRACKET; AIR DUCT | 1 | 1108- | A | (C) | ||
| 548 | I8-98181 974-A | A | HOSE; RUBBER,TURBO TO INL PIPE | 1 | 1108- | A | ||
| 450 | I1-09707 157-0 | C | CLAMP; HOSE | 1 | 1108- | A | ||
| 71 | I8-98133 368-0 | CLIP; AIR DUCT | 1 | 1310- | B | ID=140-160 | ||
| 58 | I8-98125 944-A | A | SUPPORT; AIR INL DUCT | 1 | 1108- | A | (B) | |
| 49 | I1-09984 126-0 | NUT; AIR DUCT | 1 | 1108- | A | (A) M8 FLANGE | ||
| 209 | I8-98021 995-1 | BRACKET; ACL | 1 | 1108- | A | |||
| 560 | I8-98061 675-0 | FILTER; VERTICAL DUCT | 2 | 1108- | A | |||
| 564 | I8-98071 416-0 | GASKET; ADAPTER | 1 | 1108- | A | |||
| 379 | I8-97619 194-A | C | HOSE; RUBBER | 1 | 1108- | A | ||
| 242 | I8-98019 304-1 | BRACKET; AIR DUCT | 1 | 1108- | A | (A) | ||
| 353 | I8-98133 349-0 | CLIP; RUBBER HOSE | 8 | 1108- | A | ID=55-75 | ||
| 56 | I0-91610 708-0 | C | WASHER; LK,AIR INT DUCT | 2 | 1108- | A | (B) ID=8.4 OD=22 |
