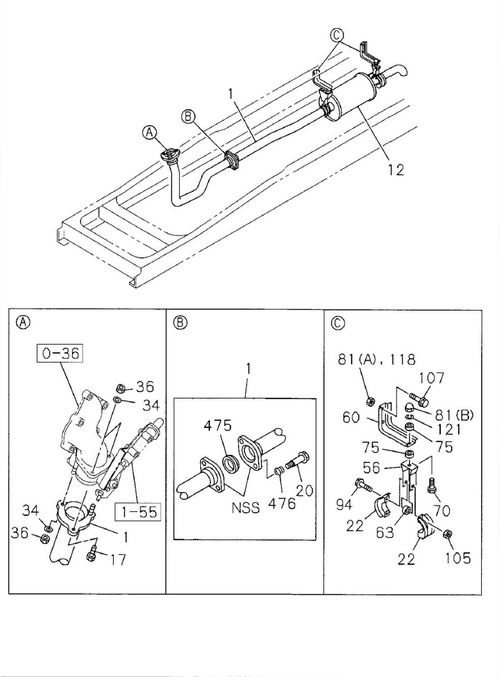

1-50 | EXHAUST PIPE AND SILENCER
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98183 953-A | PIPE; EXH | 1 | 1108- | A | IDN | ||
| 81 | I7-05110 010-A | NUT; BRKT | 2 | 1108- | A | (A) M10 FLANGE | ||
| 60 | I8-98183 955-A | BRACKET; FRAME TO BRKT | 2 | 1108- | A | IDN | ||
| 20 | I8-97039 586-0 | BOLT; FLANGE,EXH PIPE | 2 | 1108- | A | M10X49.8 | ||
| 60 | I8-98183 955-A | BRACKET; FRAME TO BRKT | 2 | 1108- | A | IDN | ||
| 107 | I0-28651 035-0 | BOLT; BRKT | 4 | 1108- | A | M10X35 FLANGE IDN | ||
| 1 | I8-98183 953-A | PIPE; EXH | 1 | 1108- | A | IDN | ||
| 118 | I7-05110 010-A | NUT; SILENCER MTG BRKT | 2 | 1108- | A | M10 FLANGE | ||
| 94 | I0-28651 040-0 | BOLT; CLAMP | 4 | 1108- | A | M10X40 FLANGE | ||
| 12 | I8-97695 279-A | SILENCER ASM; EXH | 1 | 1108- | A | |||
| 81 | I7-05110 010-A | NUT; BRKT | 2 | 1108- | A | (A) M10 FLANGE | ||
| 12 | I8-97695 279-A | SILENCER ASM; EXH | 1 | 1108- | A | |||
| 36 | I1-09400 010-0 | NUT; EXH PIPE | 3 | 1108- | A | M12 | ||
| 121 | I0-91614 810-0 | WASHER; PL,BRKT | 2 | 1108- | A | ID=10.5 OD=32 | ||
| 56 | I1-22139 045-A | BRACKET; CLAMP,EXH PIPE | 2 | 1108- | A | H=74 | ||
| 75 | I1-22159 106-1 | RUBBER; SUPPORT,BRKT | 4 | 1108- | A | OD=30 | ||
| 12 | I8-97695 279-A | SILENCER ASM; EXH | 1 | 1108- | A | |||
| 81 | I0-91370 010-0 | NUT; BRKT | 2 | 1108- | A | (B) M10 LOCK NUT IDN | ||
| 475 | I1-22119 294-1 | BEARING; SEAL,VIBNON,EXH PIPE | 1 | 1108- | A | OD=112 | ||
| 17 | I1-09000 293-0 | BOLT; EXH PIPE | 1 | 1108- | A | M12X120 | ||
| 476 | I8-97021 428-0 | SPRING; VIBNON,EXH PIPE | 2 | 1108- | A | |||
| 476 | I8-97021 428-0 | SPRING; VIBNON,EXH PIPE | 2 | 1108- | A | |||
| 475 | I1-22119 294-1 | BEARING; SEAL,VIBNON,EXH PIPE | 1 | 1108- | A | OD=112 | ||
| 22 | I1-22133 233-A | CLAMP; EXH PIPE | 4 | 1108- | A | ID=80-84 | ||
| 12 | I8-97695 279-A | SILENCER ASM; EXH | 1 | 1108- | A | |||
| 63 | I1-22139 026-A | TUBE; DIST,BRKT | 2 | 1108- | A | L=11 | ||
| 63 | I1-22139 026-A | TUBE; DIST,BRKT | 2 | 1108- | A | L=11 | ||
| 70 | I0-10856 050-0 | BOLT; BRKT | 2 | 1108- | A | M10X50 | ||
| 118 | I7-05110 010-A | NUT; SILENCER MTG BRKT | 2 | 1108- | A | M10 FLANGE | ||
| 56 | I1-22139 045-A | BRACKET; CLAMP,EXH PIPE | 2 | 1108- | A | H=74 | ||
| 22 | I1-22133 233-A | CLAMP; EXH PIPE | 4 | 1108- | A | ID=80-84 | ||
| 105 | I7-05110 010-A | NUT; CLAMP | 4 | 1108- | A | M10 FLANGE | ||
| 34 | I1-09500 030-0 | WASHER; EXH PIPE | 3 | 1108- | A | ID=13 OD=24 DISH | ||
| 105 | I7-05110 010-A | NUT; CLAMP | 4 | 1108- | A | M10 FLANGE |
