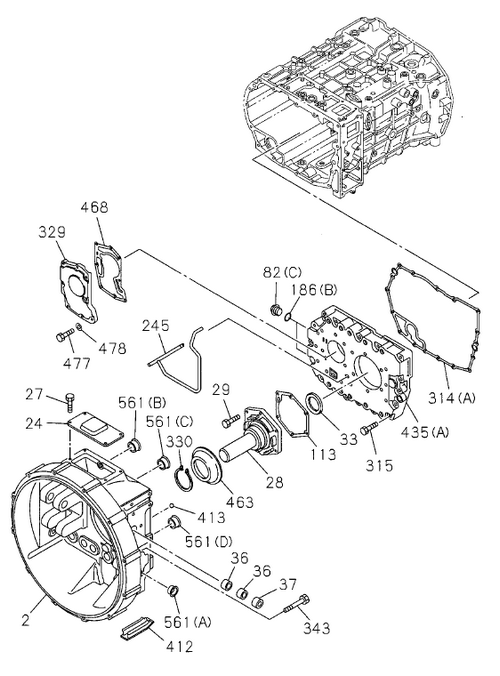

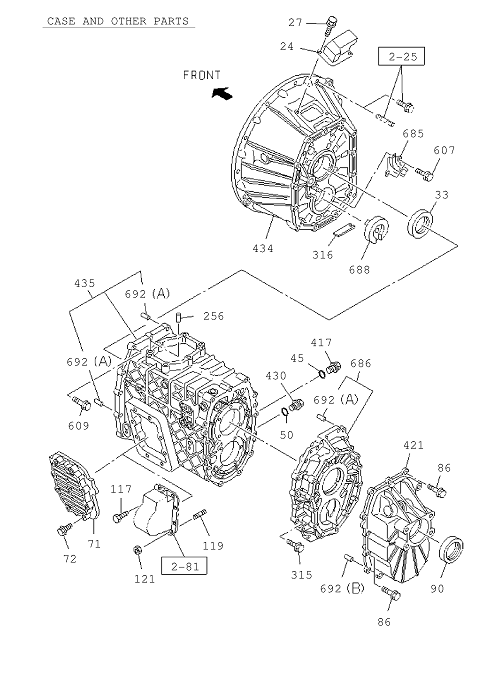

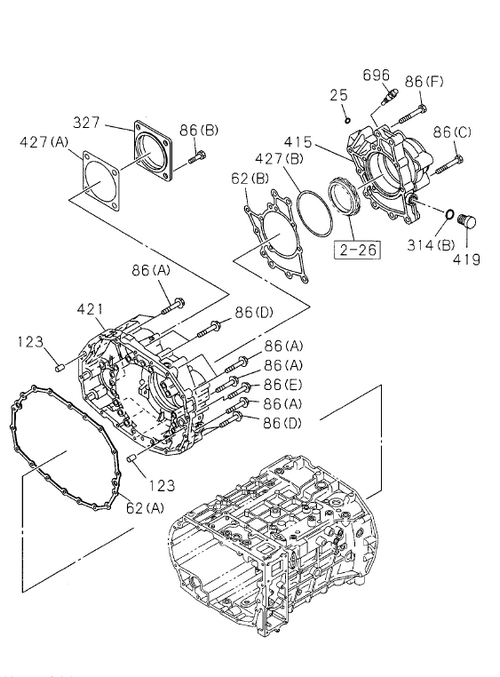

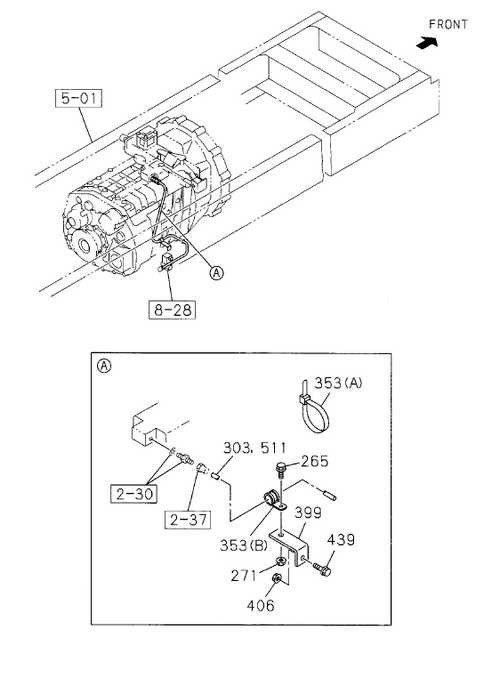

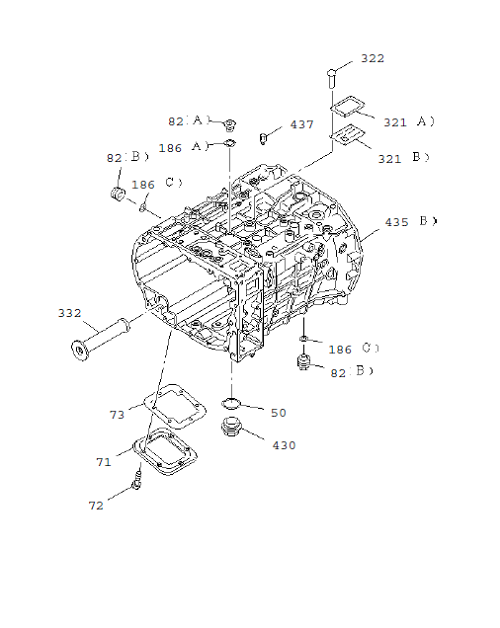

2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 468 | I8-98361 933-0 | GASKET; OIL PUMP | 1 | 1310- | B | FVM-HP | ||
| 315 | I0-28050 840-0 | BOLT; CASE | 18 | 1108- | A | M8X40 FLANGE | ||
| 413 | I1-31119 014-0 | BALL; CLU HSG | 4 | 1310- | B | FVM-HP | ||
| 511 | I1-87411 019-0 | TUBE; CORRUGATE | 1 | 1310- | B | FVM-HP; L=2000 ID=10 | ||
| 353 | I1-09707 183-0 | CLIP; NYLON TUBE | 3 | 1310- | B | FVM-HP; (A) L=350 | ||
| 463 | I1-33129 018-0 | COVER; DUST,FRT COVER | 1 | 1310- | B | FVM-HP | ||
| 427 | I1-33132 054-0 | GASKET; RR COVER | 1 | 1310- | B | FVM-HP; (A) EXC. PTO CONTROL | ||
| 477 | I1-33549 581-0 | BOLT; OIL PUMP | 8 | 1310- | B | FVM-HP; M8x30 | ||
| 33 | I8-97377 947-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1108- | A | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 696 | I1-83227 018-0 | SENSOR; PULSE | 1 | 1310- | B | FVM-HP | ||
| 688 | I8-98309 860-0 | NOZZLE;OIL,COUNTER FRONT | 1 | 1509- | A | |||
| 314 | I8-98361 933-0 | GASKET; CASE | 1 | 1310- | B | FVM-HP; (A) | ||
| 430 | I1-33119 156-0 | PLUG; OIL DRAIN | 1 | 1310- | B | FVM-HP | ||
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 1108- | A | ID=17 ALSO INCLUDED IN GASKET SET(M/T). | ||
| 332 | I1-33119 437-0 | FILTER; OIL | 1 | 1310- | B | FVM-HP | ||
| 265 | I0-28650 820-0 | BOLT; CLIP | 1 | 1310- | B | FVM-HP; M8x20 | ||
| 86 | I1-33139 235-0 | BOLT; RR COVER | 5 | 1310- | B | FVM-HP; (D) M10x110 | ||
| 86 | I1-33139 061-0 | BOLT; RR COVER | 8 | 1310- | B | FVM-HP; (F) M10x65 | ||
| 72 | I1-09044 081-0 | BOLT; SIDE COVER | 8 | 1108- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X5 0 FLANGE | ||
| 686 | I8-97388 873-1 | CASE; RR,TRANS | 1 | 1108- | A | |||
| 72 | I1-33119 592-0 | BOLT; SIDE COVER | 6 | 1310- | B | FVM-HP; M10x22 | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 1108- | A | |||
| 86 | I1-33139 239-0 | BOLT; RR COVER | 5 | 1310- | B | FVM-HP; (C) M12x75 | ||
| 62 | I1-33132 087-0 | GASKET; RR COVER | 1 | 1310- | B | FVM-HP; (A) | ||
| 25 | I8-98231 755-0 | GASKET; COVER | 1 | 1310- | B | FVM-HP; ALSO INCLUDED IN GASKET SET(M/T). | ||
| 430 | I1-33119 156-0 | PLUG; OIL DRAIN | 1 | 1310- | A | |||
| 2 | I1-31111 183-0 | HOUSING; CLU | 1 | 1310- | B | FVM-HP | ||
| 186 | I1-33119 249-0 | RING; SEAL | 2 | 1310- | B | FVM-HP; (A) | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 1108- | A | OD=6 L=12 | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 1108- | A | ID=17 ALSO INCLUDED IN GASKET SET(M/T). | ||
| 609 | I0-28050 840-0 | BOLT; HSG TO CASE | 22 | 1108- | A | M8X40 FLANGE | ||
| 82 | I1-33119 619-0 | PLUG; SCREW,CASE | 2 | 1310- | B | FVM-HP; (A) | ||
| 353 | I1-09700 606-0 | CLIP; NYLON TUBE | 1 | 1310- | B | FVM-HP; (B) ID=15 H=24 L=20 | ||
| 427 | I8-98241 467-0 | GASKET; RR COVER | 1 | 1310- | B | FVM-HP; (B) | ||
| 71 | I8-98122 318-0 | COVER; SIDE,TRANS CASE | 1 | 1108- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 692 | I9-11229 058-1 | PIN; DOWEL | 4 | 1108- | A | (A) OD=11 L=8 | ||
| 27 | I1-31119 058-0 | BOLT; COVER TO CLU HSG | 4 | 1310- | B | FVM-HP | ||
| 86 | I1-33119 594-0 | BOLT; RR COVER | 4 | 1310- | B | FVM-HP; (B) M12x25 ; EXC. PTO CONTROL | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 1108- | A | |||
| 415 | I1-33131 274-0 | COVER; BRG | 1 | 1310- | B | FVM-HP | ||
| 329 | I1-34150 123-0 | PUMP ASM; OIL | 1 | 1310- | B | FVM-HP | ||
| 62 | I1-33132 076-0 | GASKET; RR COVER | 1 | 1310- | B | FVM-HP; (B) | ||
| 607 | I0-28050 816-0 | BOLT; COVER | 2 | 1108- | A | M8X16 FLANGE | ||
| 322 | I1-33119 556-0 | RIVET; NAME PLATE | 4 | 1310- | A | |||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 1108- | A | OD=6 L=12 | ||
| 399 | I1-47475 530-0 | BRACKET; CLIP | 1 | 1310- | B | FVM-HP; L=90 B=25 | ||
| 417 | I8-98009 333-0 | PLUG; OIL FILLER,TRANS | 1 | 1108- | A | M20X10.5 | ||
| 688 | I8-98309 860-0 | NOZZLE; OIL,COUNTER | 1 | 1111- | A | |||
| 421 | I8-98004 790-1 | COVER; RR,TRANS | 1 | 1108- | A | |||
| 434 | I8-98004 506-2 | HOUSING; CLU | 1 | 1108- | A | |||
| 435 | I1-33111 380-0 | CASE; TRANS | 1 | 1310- | B | FVM-HP; (A) ZF | ||
| 322 | I1-33119 556-0 | RIVET; NAME PLATE | 4 | 1310- | B | FVM-HP | ||
| 24 | I1-31119 059-0 | COVER; CHECK HOLE,DUST | 1 | 1310- | B | FVM-HP; (C) | ||
| 321 | I1-33119 520-0 | PLATE; NAME | 1 | 1310- | B | FVM-HP; (B) | ||
| 29 | I1-33549 581-0 | BOLT; FRT COVER | 6 | 1310- | B | FVM-HP; M8x30 | ||
| 123 | I1-33119 292-0 | DOWEL; TRANS CASE | 4 | 1310- | B | FVM-HP | ||
| 421 | I1-33131 275-0 | COVER; RR,TRANS | 1 | 1310- | B | FVM-HP | ||

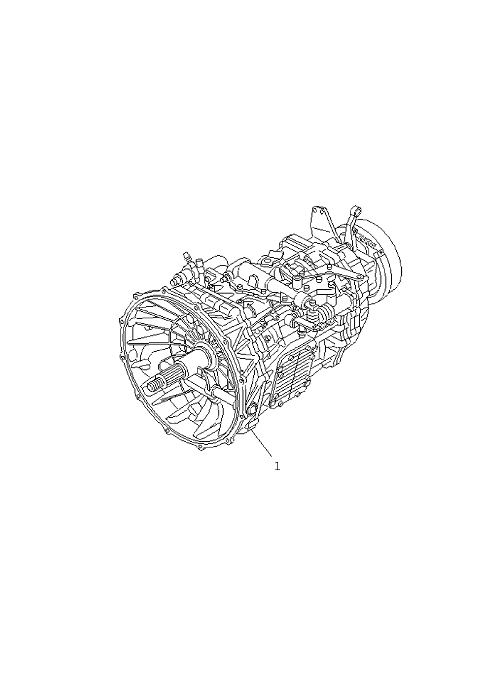

| 1 | I8-98183 351-1 | TRANSMISSION ASM; MANUAL | 1 | 1310- | B | FVM-HP; PTO CONTROL | ||
| 186 | I1-33119 286-0 | RING; SEAL | 2 | 1310- | B | FVM-HP; (B) | ||
| 86 | I1-33139 236-0 | BOLT; RR COVER | 1 | 1310- | B | FVM-HP; (E) M10x50 | ||
| 330 | I1-33129 005-0 | RING; RET | 1 | 1310- | B | FVM-HP | ||
| 685 | I8-98018 864-1 | COVER; OIL PORT | 1 | 1108- | A | |||
| 90 | I8-97377 948-0 | SEAL; OIL,RR COVER | 1 | 1108- | A | NOK ALSO INCLUDED IN GASKET SET(M/T). | ||
| 1 | I8-98134 530-0 | TRANSMISSION ASM; MANUAL | 1 | 1108- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 27 | I0-28050 812-A | BOLT; COVER TO CLU HSG | 2 | 1108- | A | M8X12 FLANGE | ||
| 435 | I8-98236 421-1 | CASE; TRANS | 1 | 1108- | A | MZW6P | ||
| 439 | I0-28650 830-0 | BOLT; BRKT | 1 | 1310- | B | FVM-HP; M8x30 | ||
| 1 | I8-98183 351-1 | TRANSMISSION ASM; MANUAL | 1 | 1310- | B | FVM-HP; PTO CONTROL | ||
| 82 | I1-33119 620-0 | PLUG; SCREW,CASE | 2 | 1310- | B | FVM-HP; (B) | ||
| 688 | I8-98309 860-0 | NOZZLE; OIL,COUNTER | 1 | 1108-1110 | A | |||
| 478 | I1-33549 583-0 | WASHER; LK,OIL PUMP | 8 | 1310- | B | FVM-HP | ||
| 37 | I1-09625 002-0 | SEAL; DUST,CLU HSG | 2 | 1310- | B | FVM-HP; ALSO INCLUDED IN GASKET SET(M/T). | ||
| 343 | I8-94399 669-1 | BOLT; CLU HSG TO PLATE | 1 | 1310- | B | FVM-HP; M10x75 FLANGE | ||
| 315 | I1-33119 616-0 | BOLT; CASE | 17 | 1310- | B | FVM-HP; (A) M10x70 | ||
| 245 | I1-33119 517-0 | PIPE; OIL | 1 | 1310- | B | FVM-HP | ||
| 688 | I8-98309 860-0 | NOZZLE; OIL,COUNTER | 1 | 1108-1110 | A | |||
| 321 | I1-33119 519-0 | PLATE; NAME | 1 | 1310- | B | FVM-HP; (A) | ||
| 113 | I8-98361 933-0 | GASKET; FRT COVER TO TRANS CASI | 1 | 1310- | B | FVM-HP | ||
| 82 | I1-34539 113-0 | PLUG; SCREW,CASE | 2 | 1310- | A | |||
| 327 | I1-33131 273-0 | COVER; RR,COUNTER | 1 | 1310- | B | FVM-HP | ||
| 86 | I1-33119 616-0 | BOLT; RR COVER | 12 | 1310- | B | FVM-HP; (A) M10x70 | ||
| 86 | I1-33139 061-0 | BOLT; RR COVER | 8 | 1310- | A | |||
| 71 | I1-33119 622-0 | COVER; SIDE,TRANS CASE | 1 | 1310- | B | FVM-HP | ||
| 36 | I1-09811 396-0 | BEARING; NEEDLE,CLU HSG | 4 | 1310- | B | FVM-HP | ||
| 119 | I0-44011 035-0 | STUD; PTO FIX | 6 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50 | ||
| 692 | I9-11319 065-3 | PIN; DOWEL | 2 | 1108- | A | (B) OD=14 L=10 | ||
| 82 | I1-34539 113-0 | PLUG; SCREW,CASE | 2 | 1310- | B | FVM-HP; (C) | ||
| 28 | I1-33121 166-0 | COVER; FRT,TRANS CASE | 1 | 1310- | B | FVM-HP | ||
| 24 | I1-31131 041-0 | COVER; CHECK HOLE,DUST | 1 | 1108- | A | |||
| 1 | I8-98134 530-0 | TRANSMISSION ASM; MANUAL | 1 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 33 | I8-97552 229-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1310- | B | FVM-HP; ALSO INCLUDED IN GASKET SET(M/T). | ||
| 121 | I7-05110 010-A | NUT; PTO FIX | 6 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE | ||
| 412 | I1-31119 026-0 | CAP; CLU HSG | 1 | 1310- | B | FVM-HP | ||
| 406 | I0-91180 108-0 | NUT; BRKT | 1 | 1310- | B | FVM-HP; M8 FLANGE | ||
| 303 | I1-87411 006-0 | TUBE; NYLON | 1 | 1310- | B | FVM-HP; L=2000 OD=8 | ||
| 186 | I1-33119 435-0 | RING; SEAL | 2 | 1310- | B | FVM-HP; (C) | ||
| 121 | I7-05110 010-A | NUT; PTO FIX | 6 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE | ||
| 86 | I8-98045 397-0 | BOLT; RR COVER | 14 | 1108- | A | M10X4 0 FLANGE | ||
| 435 | I1-33111 372-0 | CASE; TRANS | 1 | 1310- | B | FVM-HP; (B) ZF | ||
| 117 | I0-28151 040-0 | BOLT; PTO FIX | 2 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X4 0 FLANGE | ||
| 437 | I1-36122 006-0 | BREATHER; TRANS | 1 | 1310- | B | FVM-HP | ||
| 186 | I8-97481 421-0 | RING; SEAL | 2 | 1710- | B | FVM-HP; (D) | ||
| 73 | I1-33119 237-0 | GASKET; SIDE COVER TO TRANS CAS | 1 | 1310- | B | FVM-HP; ALSO INCLUDED IN GASKET SET(M/T). | ||
| 314 | I1-33379 021-0 | GASKET; CASE | 1 | 1310- | B | FVM-HP; (B) | ||
| 419 | I1-33549 594-0 | PLUG; RR COVER | 1 | 1310- | B | FVM-HP | ||
| 50 | I1-33119 293-0 | GASKET; DRAIN PLUG | 1 | 1310- | B | FVM-HP; ALSO INCLUDED IN GASKET SET(M/T). | ||
| 271 | I0-91180 108-0 | NUT; CLIP | 1 | 1310- | B | FVM-HP; M8 FLANGE |
