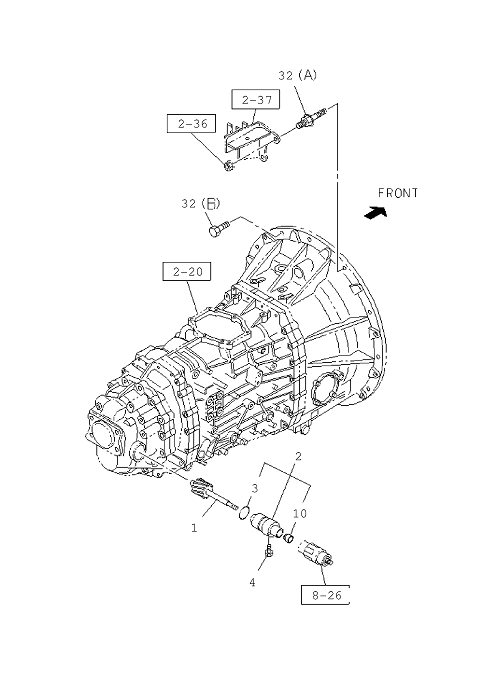

2-25 | SPEEDOMETER DRIVEN GEAR
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I1-33372 133-5 | GEAR; DRIVEN,SPD | 1 | 1108- | A | Z=15 | ||
| 32 | I8-98010 334-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 1108- | A | (A) M10X20,M10X26 L=56 | ||
| 19 | I1-31119 012-0 | WASHER; PL,CLU HSG TO TRAINS | 10 | 1310- | A | |||
| 4 | I8-98014 141-0 | BOLT; RET,DRIVEN GEAR | 1 | 1108- | A | M6X12.5 FLANGE | ||
| 10 | I1-09625 510-0 | SEAL; OIL,DRIVE GEAR | 1 | 1108- | A | NOK ALSO INCLUDED IN GASKET SET(M/T). | ||
| 3 | I1-09623 246-0 | GASKET; BUSHING | 1 | 1108- | A | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 18 | I1-31119 057-0 | BOLT; CLU HSG TO TRANS | 10 | 1310- | A | |||
| 2 | I8-98000 271-0 | BUSHING; DRIVEN GEAR,SPEEDOMETER | 1 | 1108- | A | |||
| 32 | I8-94399 669-1 | BOLT; CLU HSG TO FLYWHEEL HSG | 9 | 1310- | A | M10X75 FLANGE | ||
| 32 | I0-28151 030-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 10 | 1108- | A | (B) M10X3 0 FLANGE |
