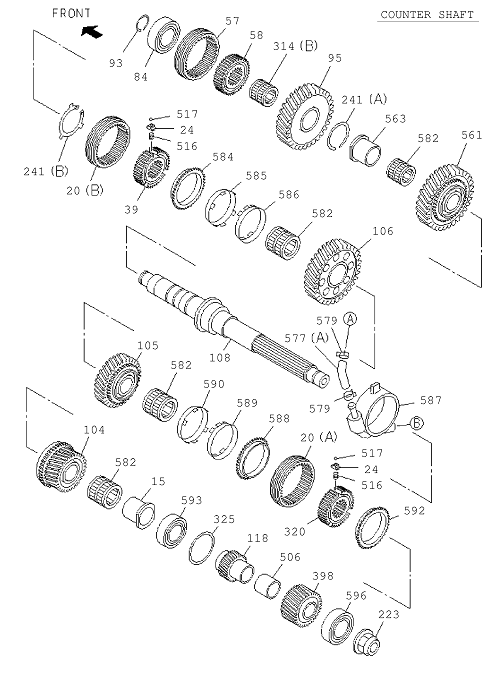

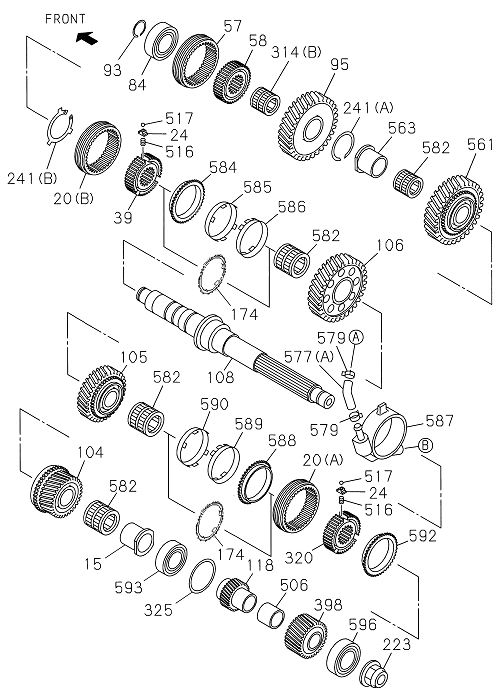

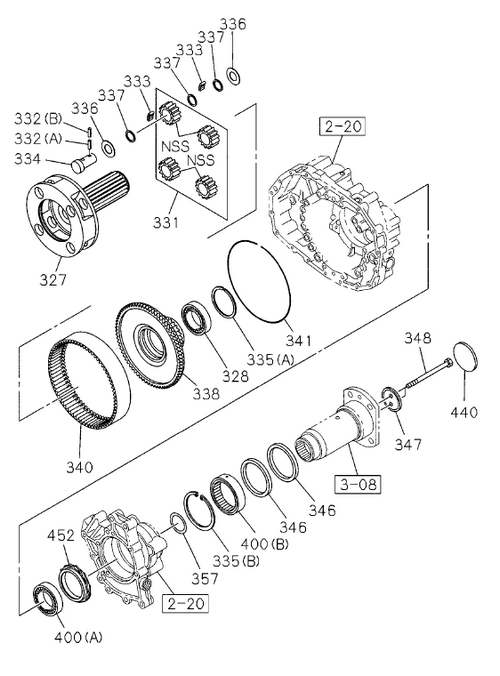

2-26 | MANUAL TRANSMISSION GEAR
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 93 | I1-33319 253-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1310- | B | FVM-HP; T= 2.4 | ||
| 587 | I8-97377 959-0 | CASE; PUMP,COUNTER | 1 | 1108- | A | |||
| 589 | I8-97241 309-1 | RING; OUTSIDE,3RD | 1 | 1108- | A | |||
| 108 | I8-98223 607-0 | SHAFT; COUNTER | 1 | 1108- | A | Z=27-42-26 | ||
| 301 | I1-33139 225-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=2.2 0 | ||
| 298 | I1-09623 380-0 | GASKET; MAINSHAFT | 1 | 1108- | A | ID=4 7 T=5 | ||
| 595 | I8-97377 991-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 1 | I1-33215 040-0 | SHAFT; TOP GEAR,TRANS | 1 | 1310- | B | FVM-HP | ||
| 325 | I1-33389 076-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.70 | ||
| 301 | I1-33139 047-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.20 | ||
| 347 | I1-09509 060-0 | WASHER; FLANGE | 1 | 1310- | A | FVM-HP | ||
| 325 | I8-97377 996-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.68 | ||
| 82 | I8-98245 057-0 | SHAFT; MAIN,TRANS | 1 | 1309- | A | |||
| 241 | I8-97254 743-0 | RING; SNAP | 1 | 1108- | A | (A) ID=46.5 T=1.8 | ||
| 326 | I0-29261 050-0 | BOLT; REV SHAFT | 1 | 1108- | A | (A) M10X50 FLANGE | ||
| 306 | I1-33319 070-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.75 | ||
| 569 | I1-33269 097-0 | DAM; OIL | 1 | 1310- | A | FVM-HP | ||
| 517 | I8-97252 935-0 | BALL; SYNCHRO,INDEX | 9 | 1108- | A | |||
| 335 | I1-33339 079-0 | RING; SNAP,BEARING | 1 | 1310- | A | FVM-HP; (A) T= 2.10 | ||
| 306 | I1-33319 076-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.45 | ||
| 582 | I8-97253 110-0 | BEARING; NEEDLE,COUNTER GEAR | 4 | 1108- | A | |||
| 314 | I8-97253 111-0 | BEARING; NEEDLE,REV GEAR | 1 | 1108- | A | (B) NSK | ||
| 325 | I1-33389 087-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.35 | ||
| 39 | I8-98075 732-0 | HUB; CLU,LOW & 2ND | 1 | 1108- | A | |||
| 70 | I1-33251 434-0 | GEAR; 1ST,MAINSHAFT | 1 | 1310- | B | FVM-HP | ||
| 93 | I1-33319 254-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1310- | B | FVM-HP; T= 2.3 | ||
| 20 | I8-98034 769-0 | SLEEVE | 1 | 1108- | A | (B) | ||
| 325 | I8-98009 377-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.50 | ||
| 301 | I1-33139 042-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.60 | ||
| 595 | I8-97377 985-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 306 | I1-43319 103-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (B) T=2.0 | ||
| 325 | I8-98022 219-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.20 | ||
| 135 | I1-33361 096-0 | GEAR; REV IDLER | 1 | 1310- | B | FVM-HP | ||
| 334 | I1-33239 359-0 | SHAFT; PLANETARY GEAR | 4 | 1310- | A | FVM-HP | ||
| 332 | I1-33239 178-0 | PIN; LOCK,SHAFT | 4 | 1310- | A | FVM-HP; (A) | ||
| 572 | I8-98168 500-0 | GEAR; 4TH,INPUT | 1 | 1108- | A | Z=3 7 | ||
| 126 | I1-33259 053-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (A) T= 2.5 | ||
| 18 | I1-33259 060-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; T= 2.3 | ||
| 126 | I1-33259 051-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (A) T= 2.7 | ||
| 301 | I1-33139 227-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=2.10 | ||
| 18 | I1-33259 061-0 | RING; SNAP,CLU HUB | 1 | 1608- | B | FVM-HP; T= 2.2 | ||
| 178 | I8-97253 099-1 | BEARING; NEEDLE,MAINSHAFT | 1 | 1108- | A | |||
| 132 | I8-98009 372-0 | SHAFT; REV | 1 | 1108- | A | |||
| 521 | I0-28050 812-A | BOLT | 1 | 1108- | A | M8X12 FLANGE | ||
| 306 | I1-33319 075-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.50 | ||
| 335 | I1-33339 076-0 | RING; SNAP,BEARING | 1 | 1310- | A | FVM-HP; (A) T= 2.40 | ||
| 341 | I1-33339 096-0 | WIRE; LOCK,CARRIER | 1 | 1310- | A | FVM-HP | ||
| 32 | I1-33259 140-0 | COLLAR; 3RD GEAR | 1 | 1310- | B | FVM-HP | ||
| 475 | I8-98101 505-0 | BEARING; 6TH | 1 | 1108- | A | COLLAR OD=-49.999 | ||
| 135 | I8-98005 601-1 | GEAR; REV IDLER | 1 | 1108- | A | Z=2 7 | ||
| 301 | I1-33139 232-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.85 | ||
| 336 | I1-33239 174-0 | WASHER; THRUST,PLANETARY GEAR | 8 | 1310- | A | FVM-HP | ||
| 408 | I1-33269 042-0 | SPRING | 6 | 1310- | A | FVM-HP; (A) | ||
| 230 | I1-33262 239-0 | SLEEVE; 4TH TO 5TH | 1 | 1310- | B | FVM-HP | ||
| 306 | I1-43319 021-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (B) T=2.5 | ||
| 105 | I8-98168 501-0 | GEAR; 3RD,COUNTER | 1 | 1108- | A | Z=35 | ||
| 595 | I8-97377 988-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 233 | I1-33269 096-0 | RING; BLOCK 4TH TO 5TH | 2 | 1310- | B | FVM-HP | ||
| 325 | I1-33389 075-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.80 | ||
| 9 | I1-33265 631-0 | CLUTCH; DOG,TOP GEAR | 1 | 1310- | B | FVM-HP | ||
| 260 | I8-98014 140-0 | NUT; MAINSHAFT END | 1 | 1108- | A | M3 6 FLANGE | ||
| 325 | I8-97377 995-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1. 62 | ||
| 331 | I1-33239 350-0 | GEAR SET; PLANETARY | 1 | 1310- | A | FVM-HP | ||
| 306 | I1-33319 066-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.95 | ||
| 324 | I1-33261 230-0 | HUB; CLU | 1 | 1310- | B | FVM-HP | ||
| 468 | I8-98075 734-0 | HUB; CLU,5TH & 6TH | 1 | 1108- | A | |||
| 301 | I1-33139 201-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.45 | ||
| 400 | I1-33339 049-0 | BEARING; OUTPUT SHAFT RR | 1 | 1310- | A | FVM-HP; (B) | ||
| 18 | I8-98351 453-0 | RING; SNAP,CLU HUB | 1 | 1608- | B | FVM-HP; H= 4.0 | ||
| 580 | I8-97377 953-0 | BEARING; MAINSHAFT RR | 1 | 1108- | A | |||
| 18 | I1-33259 054-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; T= 2.4 | ||
| 400 | I8-97377 977-0 | BEARING; OUTPUT SHAFT RR | 1 | 1108- | A | |||
| 325 | I1-33389 074-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.90 | ||
| 573 | I8-98212 241-0 | PUMP ASM; OIL | 1 | 1206- | A | |||
| 593 | I8-97377 976-0 | BEARING; COUNTER MIDDLE | 1 | 1108- | A | |||
| 93 | I1-33319 256-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1310- | B | FVM-HP; T= 2.1 | ||
| 594 | I8-98005 633-0 | WASHER; THRUST,REV IDLE | 1 | 1108- | A | |||
| 95 | I8-98005 229-0 | GEAR; REV,COUNTER | 1 | 1108- | A | Z=44 | ||
| 301 | I1-33139 045-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.40 | ||
| 313 | I1-33259 047-0 | BEARING; NEEDLE,LOW GEAR | 1 | 1310- | B | FVM-HP | ||
| 36 | I1-33252 478-0 | GEAR; 3RD,MAINSHAFT | 1 | 1310- | B | FVM-HP | ||
| 82 | I1-33231 337-0 | SHAFT; MAIN,TRANS | 1 | 1310- | B | FVM-HP | ||
| 338 | I1-33331 275-0 | CARRIER; RING GEAR | 1 | 1310- | A | FVM-HP | ||
| 325 | I8-98009 374-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.32 | ||
| 66 | I1-33339 069-0 | RING; BLOCK,SYN | 2 | 1310- | B | FVM-HP | ||
| 325 | I1-33389 089-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.25 | ||
| 41 | I1-33265 498-0 | RING; BLOCK,2ND & 3RD | 2 | 1310- | B | FVM-HP | ||
| 126 | I1-33269 047-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (B) T= 4.0 | ||
| 427 | I1-33332 132-0 | GEAR; 2ND & 3RD,COUNTER | 1 | 1310- | A | FVM-HP | ||
| 24 | I8-97241 313-1 | BLOCK; INDEX,SYN | 9 | 1108- | A | |||
| 325 | I1-33389 079-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.85 | ||
| 323 | I1-33263 027-0 | INSERT | 9 | 1310- | B | FVM-HP; (B) | ||
| 595 | I8-98022 221-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 596 | I8-97377 968-0 | BEARING; ROOLER,COUNTER END | 1 | 1108- | A | |||
| 588 | I8-98223 605-0 | RING; BLOCK,3RD | 1 | 1210- | A | Z=45 | ||
| 84 | I8-97377 957-1 | BEARING; COUNTER SHAFT,FRT | 1 | 1108- | A | |||
| 93 | I1-33319 255-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1310- | B | FVM-HP; T= 2.2 | ||
| 325 | I8-98009 375-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.38 | ||
| 516 | I8-98032 197-0 | SPRING; SYNCHRO,INDEX | 9 | 1108- | A | |||
| 357 | I1-33139 218-0 | RING | 1 | 1310- | A | FVM-HP | ||
| 325 | I8-98009 376-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.44 | ||
| 584 | I8-98223 605-0 | RING; BLOCK,2ND | 1 | 1210- | A | Z=45 | ||
| 440 | I1-37249 152-0 | COVER; FLANGE | 1 | 1310- | A | FVM-HP | ||
| 506 | I8-97377 965-0 | COLLAR; 6TH,COUNTER | 1 | 1108- | A | |||
| 335 | I1-33339 075-0 | RING; SNAP,BEARING | 1 | 1310- | A | FVM-HP; (A) T= 2.50 | ||
| 339 | I1-33265 649-0 | CLUTCH; PLANETARY GEAR | 1 | 1310- | A | FVM-HP; (A) | ||
| 335 | I1-33339 077-0 | RING; SNAP,BEARING | 1 | 1310- | A | FVM-HP; (A) T= 2.30 | ||
| 18 | I1-33259 064-0 | RING; SNAP,CLU HUB | 1 | 1310-1607 | B | FVM-HP; T= 1.9 | ||
| 400 | I1-33339 049-0 | BEARING; OUTPUT SHAFT RR | 1 | 1310- | A | FVM-HP; (B) | ||
| 301 | I1-33139 046-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.30 | ||
| 93 | I1-33319 251-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1310- | B | FVM-HP; T= 2.0 | ||
| 314 | I1-09811 017-0 | BEARING; NEEDLE,REV GEAR | 2 | 1108- | A | (A) KOYO | ||
| 108 | I8-98303 643-0 | SHAFT;COUNTER | 1 | 1502- | A | z=27-42-26 | ||
| 424 | I8-98125 318-0 | COLLAR; 6TH GEAR | 1 | 1108- | A | |||
| 325 | I1-33389 048-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.55 | ||
| 118 | I8-98005 292-1 | GEAR; 6TH,COUNTER | 1 | 1108- | A | Z=17 | ||
| 97 | I1-33338 407-0 | GEAR; 5TH,COUNTER | 1 | 1310- | B | FVM-HP | ||
| 126 | I1-33259 050-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (A) T= 2.8 | ||
| 301 | I1-33139 205-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.25 | ||
| 301 | I1-33139 050-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.10 | ||
| 109 | I1-33312 020-0 | BEARING; COUNTER SHAFT, RR | 1 | 1310- | B | FVM-HP | ||
| 126 | I1-33269 050-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (B) T= 3.7 | ||
| 577 | I8-98033 982-0 | HOSE; OIL PUMP | 2 | 1108- | A | (B) | ||
| 325 | I8-98009 373-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.26 | ||
| 106 | I8-98140 884-0 | GEAR; 2ND,COUNTER | 1 | 1108- | A | Z=44 | ||
| 20 | I8-98258 279-0 | SLEEVE FVM34 | 1 | 1312- | A | (A) Z=45 | ||
| 337 | I1-33239 176-0 | WASHER; PLANETARY GEAR,INNER | 12 | 1310- | A | FVM-HP | ||
| 592 | I8-97241 306-1 | RING; BLOCK,4TH | 1 | 1108- | A | Z=45 | ||
| 581 | I8-98137 255-1 | CLUTCH; DOG,5TH GEAR | 1 | 2004- | A | |||
| 223 | I8-98005 894-0 | NUT; COUNTER SHAFT END | 1 | 1108- | A | M3 4 FLANGE | ||
| 20 | I8-98258 279-0 | SLEEVE | 2 | 1108- | A | (A) | ||
| 595 | I8-97377 986-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 577 | I8-98033 981-0 | HOSE; OIL PUMP | 4 | 1108- | A | (A) | ||
| 301 | I1-33139 204-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.15 | ||
| 320 | I8-98075 733-0 | HUB; CLU,4TH & 3RD | 1 | 1108- | A | |||
| 104 | I8-98198 297-0 | GEAR; 4TH,COUNTER | 1 | 1108- | A | Z=29 | ||
| 332 | I1-33239 179-0 | PIN; LOCK,SHAFT | 4 | 1310- | A | FVM-HP; (B) | ||
| 301 | I1-33139 226-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=2.15 | ||
| 581 | I8-97377 956-0 | CLUTCH; DOG,5TH GEAR | 1 | 1108-2003 | A | |||
| 104 | I1-33338 406-0 | GEAR; 4TH,COUNTER | 1 | 1310- | B | FVM-HP | ||
| 129 | I1-33369 026-0 | BEARING; NEEDLE,IDLER | 2 | 1310- | B | FVM-HP | ||
| 408 | I1-33269 038-0 | SPRING | 9 | 1310- | A | FVM-HP; (B) | ||
| 595 | I8-98009 379-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 587 | I8-98212 196-0 | CASE; PUMP,COUNTER | 1 | 1206- | A | |||
| 49 | I1-33259 058-0 | BEARING; NEEDLE,2ND GEAR | 2 | 1310- | A | |||
| 306 | I1-33319 074-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.55 | ||
| 301 | I1-33139 231-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.90 | ||
| 77 | I8-98137 256-0 | GEAR; 6TH,MAINSHAFT | 1 | 1204- | A | Z=46 | ||
| 571 | I8-97377 951-0 | RING; SNAP,BRG | 1 | 1108- | A | |||
| 346 | I1-33339 051-0 | GASKET; FLANGE | 2 | 1310- | A | FVM-HP | ||
| 306 | I1-43319 104-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (B) T=2.1 | ||
| 335 | I1-33339 050-0 | RING; SNAP,BEARING | 1 | 1310- | A | FVM-HP; (B) | ||
| 82 | I8-98245 057-0 | SHAFT; MAIN,TRANS | 1 | 1108- | A | Z=19-26 | ||
| 15 | I8-98146 345-0 | COLLAR; 4TH GEAR | 1 | 1108- | A | |||
| 325 | I8-98080 571-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.50 | ||
| 50 | I1-33251 448-0 | GEAR; 2ND,MAINSHAFT | 1 | 1310- | B | FVM-HP | ||
| 348 | I1-09009 168-0 | BOLT; SHAFT | 2 | 1310- | A | FVM-HP | ||
| 316 | I1-33265 629-0 | CLUTCH; DOG,3RD GEAR | 1 | 1310- | B | FVM-HP | ||
| 325 | I1-33389 047-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.60 | ||
| 325 | I1-33389 082-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.10 | ||
| 306 | I1-33319 068-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.85 | ||
| 301 | I1-33139 234-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.65 | ||
| 3 | I1-33219 340-0 | BEARING; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP | ||
| 33 | I1-33259 127-0 | BEARING; NEEDLE,3RD GEAR | 1 | 1310- | B | FVM-HP | ||
| 335 | I1-33339 078-0 | RING; SNAP,BEARING | 1 | 1310- | A | FVM-HP; (A) T= 2.20 | ||
| 301 | I1-33139 043-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.50 | ||
| 325 | I1-33389 047-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.60 | ||
| 301 | I1-33139 224-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=2.25 | ||
| 586 | I8-98223 606-0 | RING; INSIDE,2ND | 1 | 1210- | A | |||
| 301 | I1-33139 039-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.80 | ||
| 108 | I8-98223 607-0 | SHAFT; COUNTER | 1 | 1108- | A | Z=27-42-26 | ||
| 333 | I1-33239 232-0 | ROLLER; PLANETARY GEAR | AR | 1310- | A | FVM-HP | ||
| 301 | I1-33139 233-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.75 | ||
| 301 | I1-33139 223-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=2.3 0 | ||
| 595 | I8-98352 508-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | T=1.44 | ||
| 561 | I8-98000 330-0 | GEAR; LOW,COUNTER | 1 | 1108- | A | Z=44 | ||
| 325 | I1-33389 080-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.95 | ||
| 108 | I1-33311 347-0 | SHAFT; COUNTER | 1 | 1310- | B | FVM-HP | ||
| 317 | I1-33265 630-0 | CLUTCH; DOG,4TH GEAR | 1 | 1310- | B | FVM-HP | ||
| 452 | I1-33139 217-0 | DISC; COUNTING | 1 | 1310- | A | FVM-HP | ||
| 325 | I1-33389 086-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.4 0 | ||
| 306 | I1-33319 069-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.80 | ||
| 11 | I8-97241 306-1 | RING; BLOCK,5TH & 6TH | 2 | 1108- | A | Z=45 | ||
| 39 | I8-98309 852-0 | HUB; CLU,LOW & 2ND | 1 | 1502- | A | z=45 | ||
| 241 | I8-98009 391-0 | RING; SNAP | 1 | 1108- | A | (B) ID=96 T=2.5 | ||
| 306 | I1-33319 072-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.65 | ||
| 595 | I8-97377 987-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 36 | I8-98168 499-0 | GEAR; 3RD,MAINSHAFT | 1 | 1108- | A | Z=29 | ||
| 306 | I1-43319 102-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (B) T=2.3 | ||
| 132 | I1-33351 024-0 | SHAFT; REV | 1 | 1310- | B | FVM-HP | ||
| 590 | I8-97241 312-1 | RING; INSIDE,3RD | 1 | 1108- | A | |||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 10 | 1108- | A | ID=16 | ||
| 588 | I8-97241 306-1 | RING; BLOCK,3RD | 1 | 1108- | A | Z=45 | ||
| 84 | I1-33312 016-0 | BEARING; COUNTER SHAFT,FRT | 1 | 1310- | A | |||
| 325 | I8-97377 998-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.80 | ||
| 595 | I8-98022 222-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 306 | I1-43319 105-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (B) T=2.2 | ||
| 335 | I1-33339 080-0 | RING; SNAP,BEARING | 1 | 1310- | A | FVM-HP; (A) T= 2.00 | ||
| 306 | I1-33319 073-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.60 | ||
| 27 | I1-33259 128-0 | BEARING; 4TH GEAR | 2 | 1310- | B | FVM-HP | ||
| 21 | I1-33261 295-0 | HUB; CLU,4TH & 5TH | 1 | 1310- | B | FVM-HP | ||
| 93 | I8-97377 958-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1108- | A | |||
| 323 | I1-33263 030-0 | INSERT | 6 | 1310- | B | FVM-HP; (A) | ||
| 325 | I1-33389 084-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.2 0 | ||
| 584 | I8-98034 770-0 | RING; BLOCK,2ND | 1 | 1108- | A | Z=45 | ||
| 328 | I1-33339 094-0 | BEARING; CARRIER | 1 | 1310- | A | FVM-HP | ||
| 93 | I1-33319 264-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1310- | B | FVM-HP; T= 2.6 | ||
| 595 | I8-97377 990-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 429 | I1-33262 244-0 | SLEEVE; 2ND & 3RD | 1 | 1310- | A | FVM-HP | ||
| 326 | I8-98014 738-0 | BOLT; REV SHAFT | 1 | 1108- | A | (B) M10X50 | ||
| 313 | I1-33259 047-0 | BEARING; NEEDLE,LOW GEAR | 1 | 1310- | B | FVM-HP | ||
| 590 | I8-98223 606-0 | RING; INSIDE,3RD | 1 | 1210- | A | |||
| 301 | I1-33139 041-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.70 | ||
| 325 | I1-33389 083-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.15 | ||
| 393 | I1-33259 104-0 | BEARING; MAINSHAFT END | 1 | 1310- | A | FVM-HP | ||
| 49 | I1-33259 058-0 | BEARING; NEEDLE,2ND GEAR | 2 | 1310- | B | FVM-HP | ||
| 586 | I8-97241 312-1 | RING; INSIDE,2ND | 1 | 1108- | A | |||
| 339 | I8-97496 720-0 | CLUTCH; PLANETARY GEAR | 1 | 1310- | A | FVM-HP; (B) | ||
| 301 | I1-33139 230-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.95 | ||
| 77 | I8-98137 256-0 | GEAR; 6TH,MAINSHAFT | 1 | 1108- | A | Z=46 | ||
| 18 | I8-97256 855-0 | RING; SNAP,CLU HUB | 1 | 1108- | A | ID=35.7 T=1.8 | ||
| 314 | I1-33259 125-0 | BEARING; NEEDLE,REV GEAR | 1 | 1310- | B | FVM-HP | ||
| 327 | I1-33231 338-0 | CARRIER; PLANETARY GEAR | 1 | 1310- | A | FVM-HP | ||
| 30 | I1-33251 449-0 | GEAR; 4TH,MAINSHAFT | 1 | 1310- | B | FVM-HP | ||
| 58 | I8-98005 296-0 | HUB; CLU,REV | 1 | 1108- | A | |||
| 398 | I8-97380 568-0 | GEAR; COUNTER | 1 | 1108- | A | Z=22 | ||
| 325 | I8-97377 997-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.74 | ||
| 325 | I1-33389 077-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.65 | ||
| 325 | I1-33389 081-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.05 | ||
| 301 | I1-33139 206-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.35 | ||
| 42 | I1-33262 195-0 | SLEEVE | 1 | 1310- | B | FVM-HP | ||
| 475 | I8-98142 265-0 | BEARING; 6TH | 1 | 1108- | A | COLLAR OD=50.000- | ||
| 473 | I8-97377 950-0 | BEARING; INPUT SHAFT | 1 | 1108- | A | |||
| 59 | I1-33257 101-0 | GEAR; REV MAINSHAFT | 1 | 1310- | B | FVM-HP | ||
| 68 | I1-33259 049-0 | SLEEVE; 1ST TO REV | 1 | 1310- | B | FVM-HP | ||
| 301 | I1-33139 202-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=1.55 | ||
| 299 | I8-97377 970-0 | BEARING; OUTPUT SHAFT FRT | 1 | 1108- | A | |||
| 126 | I1-33259 054-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; T= 2.4 | ||
| 18 | I1-33259 063-0 | RING; SNAP,CLU HUB | 1 | 1310-1607 | B | FVM-HP; T= 2.0 | ||
| 325 | I1-33389 088-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.3 0 | ||
| 306 | I1-33319 067-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.90 | ||
| 189 | I1-44519 224-0 | RING; SNAP,REV,GEAR | 1 | 1310- | B | FVM-HP | ||
| 126 | I1-33269 049-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (B) T= 3.8 | ||
| 18 | I8-98351 451-0 | RING; SNAP,CLU HUB | 1 | 1310-1607 | B | FVM-HP; H= 3.8 | ||
| 44 | I1-33261 303-0 | HUB; CLU,2ND & 3RD,MAIN | 1 | 1310- | B | FVM-HP | ||
| 325 | I1-33389 078-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=1.75 | ||
| 408 | I1-33269 039-0 | SPRING | 9 | 1310- | A | FVM-HP; (C) | ||
| 306 | I1-43319 101-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (B) T=2.4 | ||
| 18 | I8-98351 452-0 | RING; SNAP,CLU HUB | 1 | 1608- | B | FVM-HP; H= 3.9 | ||
| 340 | I1-33339 099-0 | GEAR; RING | 1 | 1310- | A | FVM-HP | ||
| 315 | I1-33265 629-0 | CLUTCH; DOG,2ND GEAR | 1 | 1310- | B | FVM-HP | ||
| 573 | I8-98044 683-0 | PUMP ASM; OIL | 1 | 1108- | A | |||
| 325 | I1-33389 073-0 | SHIM; COUNTER SHAFT BRG | 1 | 1310- | B | FVM-HP; T=2.00 | ||
| 563 | I8-98146 345-0 | COLLAR; 1ST GEAR | 1 | 1108- | A | |||
| 67 | I1-33259 135-0 | HUB; CLU,1ST TO REV | 1 | 1310- | B | FVM-HP | ||
| 400 | I1-33139 212-0 | BEARING; OUTPUT SHAFT RR | 1 | 1310- | A | FVM-HP; (A) | ||
| 301 | I1-33139 228-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=2.05 | ||
| 386 | I9-08150 408-0 | PIN; REV SHAFT | 1 | 1108- | A | |||
| 325 | I8-98022 218-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.14 | ||
| 16 | I1-33239 212-0 | BEARING; PILOT,MAINSHAFT | 1 | 1310- | B | FVM-HP | ||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 10 | 1108- | A | ID=16 | ||
| 306 | I1-33319 071-0 | RING; SNAP,MAINSHAFT | 1 | 1310- | B | FVM-HP; (A) T=2.70 | ||
| 585 | I8-97241 309-1 | RING; OUTSIDE,2ND | 1 | 1108- | A | |||
| 57 | I8-94421 871-1 | SLEEVE; REV | 1 | 1108- | A | |||
| 578 | I8-98009 345-0 | SCREEN; OIL PUMP | 2 | 1108- | A | |||
| 80 | I8-97377 978-0 | GEAR; SPD DRIVE | 1 | 1108- | A | Z=5 | ||
| 325 | I8-97377 994-0 | SHIM; COUNTER SHAFT BRG | 1 | 1108- | A | T=1.56 | ||
| 294 | I8-97380 571-0 | SHAFT; OUTPUT | 1 | 1108- | A | |||
| 301 | I1-33139 229-0 | SHIM; TOP GEAR SHAFT | 1 | 1310- | B | FVM-HP; T=2.00 | ||
| 131 | I9-09571 410-0 | GASKET; REV SHAFT | 2 | 1108- | A | ID=10.2 OD=16.0 | ||
| 129 | I1-33369 026-0 | BEARING; NEEDLE,IDLER | 2 | 1310- | A | |||
| 311 | I1-33239 349-0 | PIPE; MAINSHAFT | 1 | 1310- | B | FVM-HP | ||
| 18 | I1-33259 062-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; T= 2.1 | ||
| 126 | I1-33259 052-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (A) T= 2.6 | ||
| 104 | I8-98198 297-0 | GEAR; 4TH,COUNTER | 1 | 1108- | A | Z=29 | ||
| 126 | I1-33269 048-0 | RING; SNAP,CLU HUB | 1 | 1310- | B | FVM-HP; (B) T= 3.9 | ||
| 595 | I8-97377 989-0 | SHIM; OUTPUT SHAFT | 1 | 1108- | A | |||
| 330 | I1-33259 134-0 | GEAR; SUN | 1 | 1310- | A | FVM-HP | ||
| 93 | I1-33319 252-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1310- | B | FVM-HP; T= 2.5 | ||
| 174 | I8-98315 823-2 | SYNCHRONIZER ASM;2ND | 2 | 1509- | A | |||
| 320 | I8-98309 859-0 | HUB; CLU,4TH & 3RD | 1 | 1502- | A | z=45 | ||
| 84 | I1-33312 016-0 | BEARING; COUNTER SHAFT,FRT | 1 | 1310- | B | FVM-HP |
