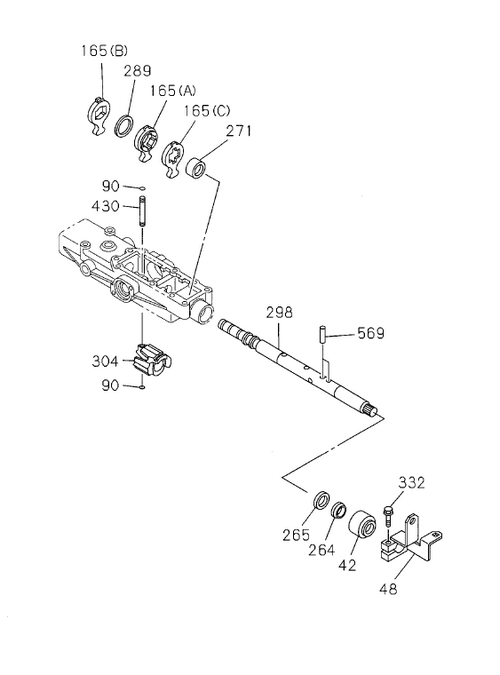

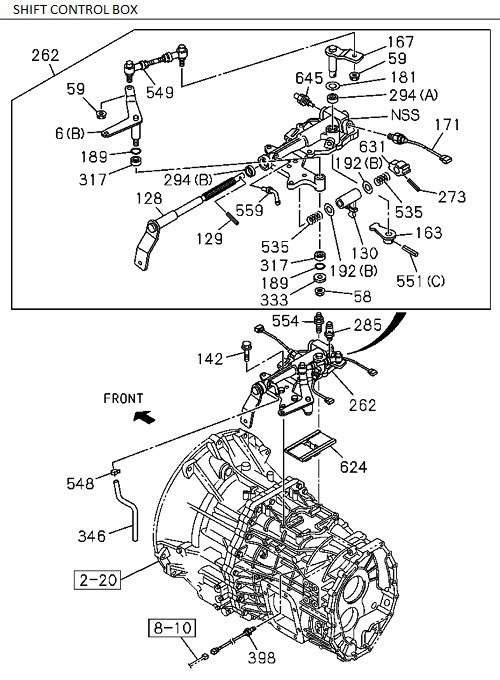

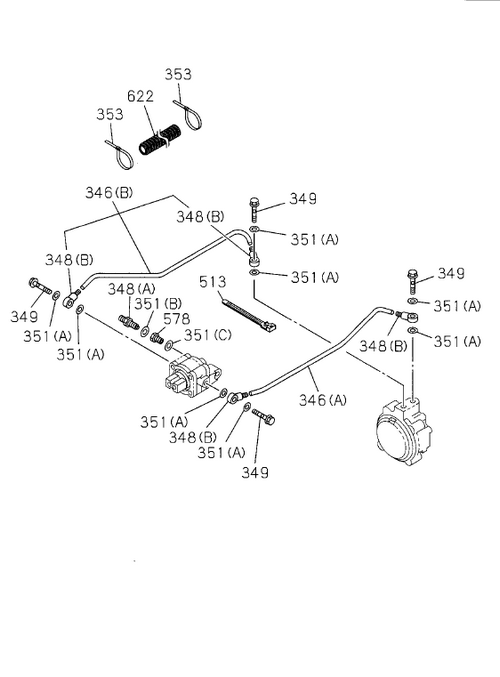

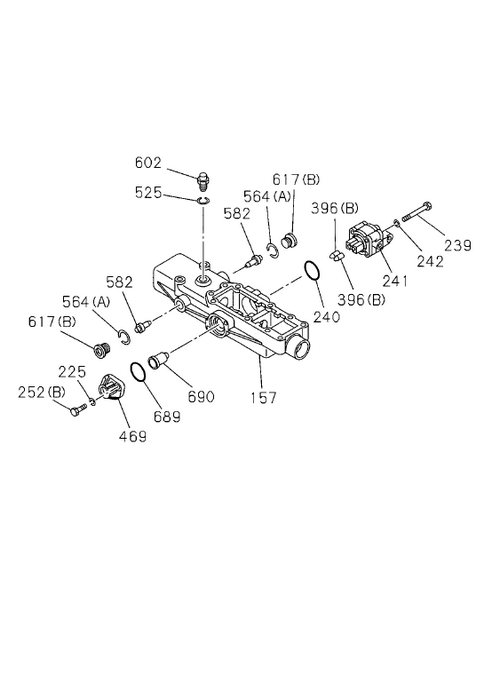

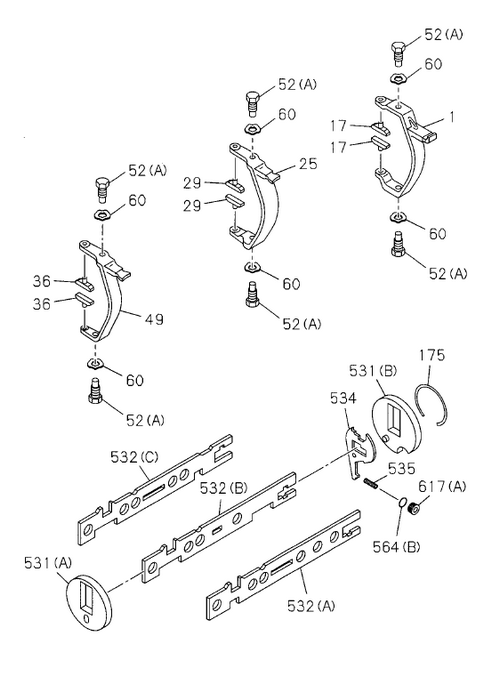

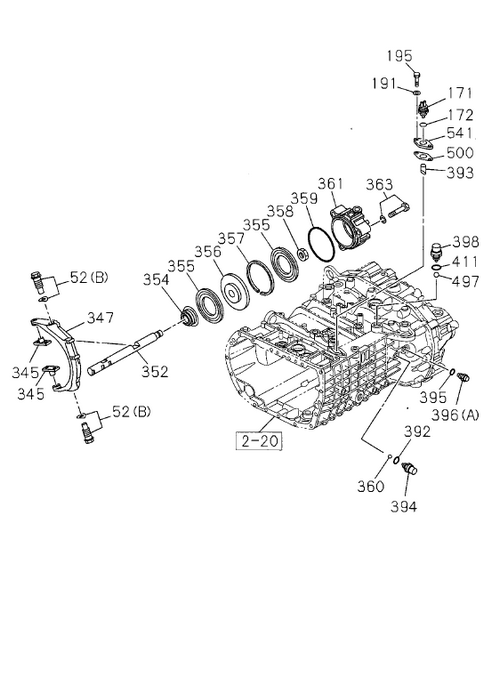

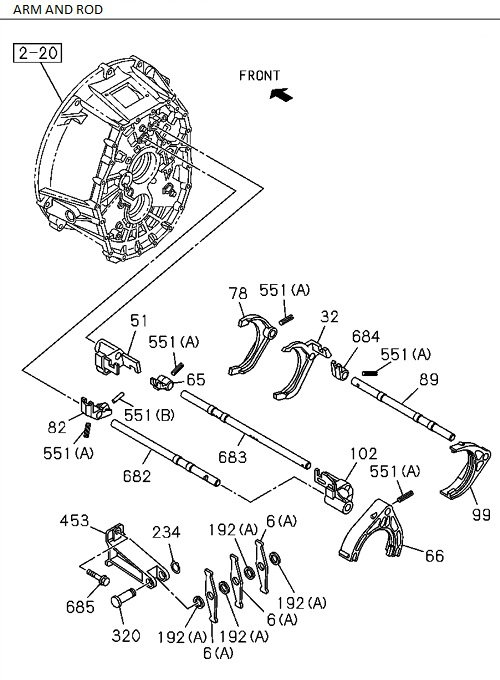

2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 548 | I8-97031 674-0 | CLIP; HOSE | 1 | 1108- | A | |||
| 287 | I8-98372 703-0 | COVER; AIR BREATHER | 1 | 1710- | B | |||
| 354 | I1-33519 045-0 | SEAL; AIR CYL | 1 | 1310- | B | FVM-HP | ||
| 559 | I8-97358 318-0 | PIPE; BREATHER | 1 | 1108- | A | |||
| 244 | I1-33549 583-0 | WASHER; LK,COVER | 4 | 1310- | B | FVM-HP | ||
| 453 | I8-97377 927-1 | BLOCK; RELAY LEVER | 1 | 1108- | A | |||
| 175 | I1-33539 103-0 | RING; STOPPER,SHIFT LEVER | 1 | 1310- | B | FVM-HP | ||
| 347 | I1-33511 529-0 | ARM; SHIFT,RANGE CHANGE | 1 | 1310- | B | FVM-HP | ||
| 130 | I8-97306 647-0 | LEVER; SHIFT,INTERNAL | 1 | 1108- | A | |||
| 513 | I5-09707 030-1 | CLIP; BAND | 6 | 1310- | B | FVM-HP; L=250 | ||
| 351 | I1-33549 578-0 | GASKET; CONNECTOR | 8 | 1310- | B | FVM-HP; (A) | ||
| 617 | I1-33539 109-0 | PLUG | 1 | 1310- | B | FVM-HP; (A) | ||
| 241 | I1-33549 407-0 | VALVE; CUT OFF | 1 | 1310- | B | FVM-HP | ||
| 532 | I1-33531 492-0 | PLATE; SHIFT FORK | 1 | 1310- | B | FVM-HP; (A) | ||
| 181 | I8-97367 327-0 | WASHER; PL,SELECT LEVER | 1 | 1108- | A | |||
| 1 | I1-33511 657-0 | ARM; SHIFT,1ST & REV | 1 | 1310- | B | FVM-HP | ||
| 303 | I1-33539 040-0 | RING; SNAP,SHAFT | 2 | 1310- | B | FVM-HP | ||
| 285 | I8-97383 656-0 | BREATHER; AIR,QUAD BOX | 1 | 1204- | A | |||
| 294 | I8-97305 662-0 | SEAL; OIL,SELECT | 1 | 1108- | A | (A) | ||
| 684 | I8-97388 970-0 | BLOCK; SHIFT,REV,SUB | 1 | 1108- | A | |||
| 89 | I8-98062 172-0 | ROD; SHIFT,REV | 1 | 1108- | A | |||
| 262 | I8-97529 377-0 | BOX ASM; SHIFT CONT | 1 | 1903- | A | |||
| 549 | I8-98022 841-0 | ROD; LINK | 1 | 1108- | A | |||
| 564 | I1-33119 249-0 | SEAL; RING | 2 | 1310- | B | FVM-HP | ||
| 19 | I1-33539 030-0 | SPRING; COIL COMP | 2 | 1310- | B | FVM-HP; (B) | ||
| 240 | I1-33549 198-0 | GASKET; CUT OFF VALVE | 1 | 1310- | B | FVM-HP | ||
| 192 | I1-09503 032-0 | WASHER; PL | 4 | 1108- | A | (A) ID=18.2 OD=2 9 | ||
| 287 | I1-34141 026-0 | COVER; AIR BREATHER | 1 | 1310- | B | FVM-HP | ||
| 541 | I1-33119 300-0 | PLATE; SWITCH | 1 | 1310- | B | FVM-HP | ||
| 42 | I1-33549 589-0 | CAP; QUAD BOX | 1 | 1310- | B | FVM-HP | ||
| 163 | I8-97305 663-0 | LEVER; SELECT,INTERNAL | 1 | 1108- | A | |||
| 531 | I1-33539 044-0 | PLATE; BEARING | 1 | 1310- | B | FVM-HP; (A) | ||
| 48 | I8-98085 725-0 | LEVER; 4TH,SHIFT | 1 | 1310- | B | FVM-HP | ||
| 637 | I0-28050 816-0 | BOLT; BRACKET | 2 | 1108- | A | M8X16 FLANGE | ||
| 398 | I8-98292 810-0 | SWITCH; REV LAMP | 1 | 1310- | B | FVM-HP | ||
| 82 | I8-97388 969-0 | BLOCK; SHIFT,REV | 1 | 1108- | A | |||
| 6 | I8-98022 855-0 | LEVER; RELAY | 1 | 1108- | A | (B) | ||
| 25 | I1-33511 642-0 | ARM; SHIFT,2ND & 3RD | 1 | 1310- | B | FVM-HP | ||
| 411 | I1-33119 249-0 | GASKET; REV LAMP SW | 1 | 1310- | B | FVM-HP | ||
| 157 | I1-33549 570-0 | BOX; QUAD,TRANS | 1 | 1310- | B | FVM-HP | ||
| 622 | I1-83129 017-0 | TUBE; CORRUGATE | 1 | 1310- | B | FVM-HP; ID=22 L=350 | ||
| 624 | I8-97241 317-3 | PLATE; INTER LOCK | 1 | 1108- | A | |||
| 252 | I1-33549 591-0 | BOLT; SIDE COVER | 4 | 1310- | B | FVM-HP; (A) M8X20 | ||
| 381 | I0-28650 616-0 | BOLT | 1 | 1108- | A | M6X16 FLANGE | ||
| 59 | I0-91180 108-0 | NUT | 2 | 1108- | A | M8 FLANGE | ||
| 682 | I8-97388 974-0 | ROD; SHIFT,REV,SUB | 1 | 1108- | A | |||
| 497 | I1-33119 252-0 | BALL; SWITCH | 1 | 1310- | B | FVM-HP | ||
| 346 | I1-33549 598-0 | HOSE; AIR | 1 | 1310- | B | FVM-HP; (B) | ||
| 551 | I1-09748 032-0 | PIN; SPRING | 1 | 1108- | A | (C) L=17 | ||
| 352 | I1-33531 497-0 | ROD; SHIFT,RANGE CHANGE | 1 | 1310- | B | FVM-HP | ||
| 319 | I8-98085 740-0 | BRACKET; SELECT LEVER | 1 | 1310- | B | FVM-HP | ||
| 242 | I1-33549 583-0 | WASHER; CUT OFF VALVE | 4 | 1310- | B | FVM-HP | ||
| 569 | I1-33529 128-0 | PIN; QUADRANT BOX | 2 | 1310- | B | FVM-HP | ||
| 554 | I8-97365 378-0 | STUD; CONT BOX | 2 | 1108- | A | M8X15,M8X25 L=49 | ||
| 395 | I1-33549 497-0 | GASKET; PLUNGER | 1 | 1310- | B | FVM-HP | ||
| 148 | I1-33542 064-0 | GASKET; QUAD BOX | 1 | 1310- | B | FVM-HP | ||
| 78 | I8-97388 975-1 | ARM; SHIFT,REV | 1 | 1108- | A | |||
| 165 | I1-33549 488-0 | LEVER; SHIFT | 1 | 1310- | B | FVM-HP; (C) | ||
| 683 | I8-98062 173-1 | ROD; SHIFT,5TH & 6TH | 1 | 1108- | A | |||
| 49 | I1-33511 664-0 | ARM; SHIFT,4TH & 5TH | 1 | 1310- | B | FVM-HP | ||
| 239 | I1-33549 585-0 | BOLT; CUT OFF VALVE | 4 | 1310- | B | FVM-HP | ||
| 534 | I1-33539 087-0 | LEVER; LOCK,SHIFT PLATE | 1 | 1310- | B | FVM-HP | ||
| 690 | I1-33549 496-0 | PIN; STOP | 1 | 1310- | B | FVM-HP | ||
| 348 | I1-33549 139-0 | CONNECTOR; AIR HOSE | 4 | 1310- | B | FVM-HP; (B) | ||
| 19 | I1-33549 221-0 | SPRING; COIL COMP | 1 | 1310- | B | FVM-HP; (D) | ||
| 99 | I8-98309 861-0 | ARM; SHIFT,4TH & 3RD | 1 | 1108- | A | |||
| 65 | I8-97388 980-1 | BLOCK ASM; SHIFT,5TH & 6TH | 1 | 1108- | A | |||
| 636 | I8-97610 096-2 | BRACKET; CLIP | 1 | 1108- | A | |||
| 346 | I8-97309 855-0 | HOSE; AIR | 1 | 1108- | A | |||
| 264 | I1-33549 119-0 | SEAL; DUST,SHAFT | 1 | 1310- | B | FVM-HP | ||
| 356 | I1-33519 197-0 | PISTON; AIR CYL | 1 | 1310- | B | FVM-HP | ||
| 551 | I8-97241 340-0 | PIN; SPRING | 1 | 1108- | A | (B) L=20 | ||
| 295 | I0-84000 805-0 | ROD; LINK,RELAY LEVER | 1 | 1310- | B | FVM-HP; M8 L=50 | ||
| 292 | I1-09440 062-1 | NUT; LINK ROD | 2 | 1310- | B | FVM-HP; (B) M8 FLANGE | ||
| 142 | I1-33549 587-0 | BOLT; QUAD BOX | 4 | 1310- | B | FVM-HP; (C) M8X40 | ||
| 433 | I1-09623 594-0 | GASKET; BUSHING | 2 | 1310- | A | |||
| 234 | I1-44519 224-0 | RING; SNAP | 1 | 1310- | B | FVM-HP | ||
| 532 | I1-33531 494-0 | PLATE; SHIFT FORK | 1 | 1310- | B | FVM-HP; (C) | ||
| 348 | I1-09654 246-0 | CONNECTOR; AIR HOSE | 1 | 1310- | B | FVM-HP; (A) M12 STRAIGHT | ||
| 398 | I8-98242 173-1 | SWITCH; REV LAMP | 1 | 1108- | A | |||
| 360 | I1-33119 252-0 | BALL; AIR CYL | 1 | 1310- | B | FVM-HP | ||
| 296 | I1-09760 108-0 | ROD END | 2 | 1310- | B | FVM-HP | ||
| 353 | I1-33549 475-0 | CLIP; AIR HOSE | 2 | 1310- | B | FVM-HP | ||
| 578 | I1-33549 553-0 | CONNECTOR | 1 | 1310- | B | FVM-HP | ||
| 262 | I8-98004 477-0 | BOX ASM; SHIFT CONT | 1 | 1108- | A | |||
| 99 | I8-98309 861-0 | ARM ASM;SHIFT,3RD-4TH | 1 | 1507- | A | |||
| 535 | I8-98015 113-0 | SPRING; LEVER | 2 | 1903- | A | |||
| 172 | I1-33119 249-0 | GASKET; NEUTRAL SW | 1 | 1310- | B | FVM-HP | ||
| 265 | I1-33549 118-0 | SEAL; OIL,SHIFT | 1 | 1310- | B | FVM-HP | ||
| 396 | I1-33529 085-0 | PLUNGER; SHIFT ROD | 2 | 1310- | B | FVM-HP; (B) | ||
| 29 | I1-33519 081-0 | BLOCK; SHIFT,2ND & 3RD | 2 | 1310- | B | FVM-HP | ||
| 532 | I1-33531 493-0 | PLATE; SHIFT FORK | 1 | 1310- | B | FVM-HP; (B) | ||
| 363 | I1-33119 616-0 | BOLT; AIR CYL | 3 | 1310- | B | FVM-HP; M10x70 | ||
| 192 | I8-97305 661-0 | WASHER; PL | 2 | 1108- | A | (B) | ||
| 171 | I1-33119 627-0 | SWITCH; NEUTRAL | 1 | 1310- | B | FVM-HP | ||
| 398 | I8-98292 810-0 | SWITCH; REV LAMP | 1 | 1310- | B | FVM-HP | ||
| 66 | I8-97388 981-0 | ARM; SHIFT,5TH & 6TH | 1 | 1108- | A | |||
| 346 | I1-33549 618-0 | HOSE; AIR | 1 | 1310- | B | FVM-HP; (A) | ||
| 158 | I8-97367 984-1 | CLIP; HARNESS | 2 | 1108- | A | ID=12 | ||
| 332 | I0-28650 840-0 | BOLT; 4TH, SHIFT LEVER | 1 | 1310- | B | FVM-HP; M8x40 FLANGE | ||
| 165 | I1-33549 603-0 | LEVER; SHIFT | 1 | 1310- | B | FVM-HP; (B) | ||
| 36 | I1-33519 081-0 | BLOCK; SHIFT,4TH & 5TH | 2 | 1310- | B | FVM-HP | ||
| 294 | I8-97363 225-0 | SEAL; OIL,SELECT | 1 | 1108- | A | (B) | ||
| 348 | I1-33549 139-0 | CONNECTOR; AIR HOSE | 4 | 1310- | B | FVM-HP; (B) | ||
| 262 | I8-97529 377-1 | BOX ASM; SHIFT CONT | 1 | 1310- | A | |||
| 582 | I1-33549 487-0 | BOLT; SPRING GUIDE | 2 | 1310- | B | FVM-HP | ||
| 52 | I1-33519 190-0 | BOLT; SHIFT ARM | 6 | 1310- | B | FVM-HP; (A) | ||
| 359 | I1-33519 093-0 | GASKET; AIR CYL | 1 | 1310- | B | FVM-HP | ||
| 469 | I8-98304 308-0 | COVER; SPRING,QUAD BOX | 1 | 1310- | A | |||
| 703 | I8-97305 733-0 | CASE; CONT BOX | 1 | 1108- | A | |||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 1108- | A | M8X2 2 FLANGE | ||
| 129 | I1-09748 031-0 | PIN; SPR,SHIFT | 1 | 1108- | A | D=4 | ||
| 274 | I1-33549 579-0 | COVER; SHAFT,QUAD BOX | 1 | 1310- | B | FVM-HP | ||
| 234 | I0-91800 618-0 | RING; SNAP | 1 | 1108- | B | FVM-HP | ||
| 394 | I1-33119 627-0 | SWITCH; RANGE CHANGE | 1 | 1310- | B | FVM-HP | ||
| 564 | I1-33549 578-0 | SEAL; RING | 1 | 1310- | B | FVM-HP; (A) | ||
| 333 | I0-91610 710-0 | WASHER; PL,LEVER | 1 | 1108- | A | ID=10.5 | ||
| 396 | I1-33519 189-0 | PLUNGER; SHIFT ROD | 1 | 1310- | B | FVM-HP; (A) | ||
| 602 | I1-34539 113-0 | PLUNGER; DETENT | 1 | 1310- | B | FVM-HP | ||
| 393 | I1-33119 298-0 | PIN; SW | 1 | 1310- | B | FVM-HP | ||
| 315 | I8-98085 738-0 | LEVER; SELECT | 1 | 1310- | B | FVM-HP | ||
| 6 | I8-97241 342-0 | LEVER; RELAY | 3 | 1108- | A | (A) | ||
| 602 | I1-34539 113-0 | PLUNGER; DETENT | 1 | 1310- | B | FVM-HP | ||
| 630 | I8-98019 536-0 | DETENT ASM | 4 | 1108- | A | |||
| 251 | I1-33549 590-0 | COVER; SIDE | 1 | 1310- | B | FVM-HP | ||
| 178 | I9-09567 113-0 | GASKET; PLUG | 1 | 1108- | A | |||
| 689 | I1-33542 063-0 | GASKET; COVER | 1 | 1310- | B | FVM-HP | ||
| 102 | I8-97388 978-2 | BLOCK; SHIFT,3RD & 4TH | 1 | 1108- | A | |||
| 52 | I1-33519 196-0 | BOLT; SHIFT ARM | 2 | 1310- | B | FVM-HP; (B) | ||
| 195 | I1-33119 593-0 | BOLT | 2 | 1310- | B | FVM-HP | ||
| 142 | I1-33549 582-0 | BOLT; QUAD BOX | 6 | 1310- | B | FVM-HP; (A) M8X100 | ||
| 398 | I8-98324 878-0 | SWITCH; REV LAMP | 1 | 1108- | A | |||
| 252 | I1-33549 581-0 | BOLT; SIDE COVER | 2 | 1310- | B | FVM-HP; (B) M8X30 | ||
| 272 | I1-44519 217-0 | RING; SNAP,QUAD BOX | 1 | 1310- | B | FVM-HP | ||
| 358 | I1-33519 188-0 | NUT; SHIFT ROD | 1 | 1310- | B | FVM-HP | ||
| 32 | I8-98236 424-0 | ARM; SHIFT,1ST & 2ND | 1 | 1108- | A | |||
| 277 | I1-33539 107-0 | PLATE; SPRING SEAT | 2 | 1310- | B | FVM-HP | ||
| 320 | I8-98085 739-0 | SHAFT; LEVER | 1 | 1310- | B | FVM-HP | ||
| 321 | I0-28065 813-0 | BOLT; BRKT,RELAY LEVER | 2 | 1310- | B | FVM-HP; M8x130 FLANGE | ||
| 225 | I1-33549 583-0 | WASHER; LK,QUAD BOX | 14 | 1310- | B | FVM-HP | ||
| 142 | I1-33549 584-0 | BOLT; QUAD BOX | 2 | 1310- | B | FVM-HP; (B) M8X75 | ||
| 430 | I1-33549 493-0 | PIN; SPR,SHIFT ROD | 1 | 1310- | B | FVM-HP | ||
| 345 | I1-33519 095-0 | BLOCK; SHIFT,RANGE CHANGE | 2 | 1310- | B | FVM-HP | ||
| 524 | I1-33549 501-0 | DETENT; QUAD BOX | 1 | 1310- | B | FVM-HP | ||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1108- | A | |||
| 320 | I8-97377 928-0 | SHAFT; LEVER | 1 | 1108- | A | |||
| 531 | I1-33539 047-0 | PLATE; BEARING | 1 | 1310- | B | FVM-HP; (B) | ||
| 51 | I8-98074 457-1 | BLOCK; SHIFT,1ST & 2ND | 1 | 1108- | A | |||
| 392 | I1-33119 249-0 | GASKET; PLUG & SW | 1 | 1310- | B | FVM-HP | ||
| 191 | I1-33549 583-0 | WASHER; LK | 2 | 1310- | B | FVM-HP | ||
| 391 | I8-97300 273-1 | PLUG; SW HOLE | 1 | 1108- | A | |||
| 292 | I9-09111 508-A | NUT; LINK ROD | 2 | 1310- | B | FVM-HP; (A) M8 | ||
| 505 | I1-33659 186-1 | SPACER; BRKT | 2 | 1310- | B | FVM-HP; L=24.5 | ||
| 535 | I8-97385 713-0 | SPRING; LEVER | 2 | 1108-1902 | A | |||
| 273 | I8-97103 142-0 | PIN; SPR,STOPPER | 1 | 1108- | A | D=4.2 L=25 | ||
| 90 | I1-33549 494-0 | RING; SNAP,SHIFT ROD | 2 | 1310- | B | FVM-HP | ||
| 289 | I1-33549 491-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1310- | B | FVM-HP | ||
| 19 | I1-33539 027-0 | SPRING; COIL COMP | 1 | 1310- | B | FVM-HP; (A) | ||
| 617 | I1-33119 619-0 | PLUG | 2 | 1310- | B | FVM-HP; (B) | ||
| 285 | I8-97383 656-0 | BREATHER; AIR,QUAD BOX | 1 | 1204- | A | |||
| 271 | I1-33549 124-0 | BUSHING; QUAD BOX | 1 | 1310- | B | FVM-HP | ||
| 513 | I5-09707 031-1 | CLIP; BAND | 1 | 1310- | B | FVM-HP; L=140 | ||
| 165 | I1-33549 489-0 | LEVER; SHIFT | 1 | 1310- | B | FVM-HP; (A) | ||
| 361 | I1-33519 092-0 | CYLINDER; AIR,SHIFT | 1 | 1310- | B | FVM-HP | ||
| 645 | I8-98019 536-0 | DETENT ASM | 1 | 1108- | A | |||
| 60 | I1-36129 025-0 | WASHER; LK | 6 | 1608- | A | |||
| 406 | I0-28050 816-0 | BOLT; HARNESS CLIP | 2 | 1108- | A | M8X16 FLANGE | ||
| 128 | I8-97306 927-0 | LEVER; SHIFT,EXTERNAL | 1 | 1108- | A | |||
| 241 | I1-33549 407-0 | VALVE; CUT OFF | 1 | 1310- | B | FVM-HP | ||
| 304 | I1-33549 492-0 | BLOCK; SHIFT SHAFT | 1 | 1310- | B | FVM-HP | ||
| 19 | I1-33539 104-0 | SPRING; COIL COMP | 1 | 1310- | B | FVM-HP; (C) | ||
| 167 | I8-98022 857-0 | LEVER; SELECT,EXTERNAL | 1 | 1108- | A | |||
| 688 | I1-33549 572-0 | SHIFT; INTERLOCK | 1 | 1310- | B | FVM-HP | ||
| 351 | I1-33549 554-0 | GASKET; CONNECTOR | 1 | 1310- | B | FVM-HP; (C) | ||
| 298 | I1-33522 205-0 | SHAFT; SHIFT LEVER | 1 | 1310- | B | FVM-HP | ||
| 189 | I1-09623 594-0 | GASKET; SELECT LEVER,CONT BOX | 2 | 1108- | A | |||
| 685 | I8-98034 764-0 | BOLT; BLOCK | 2 | 1108- | A | M8X3 0 FLANGE | ||
| 58 | I0-91180 110-0 | NUT | 1 | 1108- | A | M10 FLANGE | ||
| 351 | I8-98251 344-0 | GASKET; CONNECTOR | 1 | 1410- | B | FVM-HP; (B) ID=12.2 | ||
| 500 | I1-33119 299-0 | GASKET; SW | 1 | 1310- | B | FVM-HP | ||
| 631 | I8-97305 666-0 | STOPPER; SPRING | 1 | 1108- | A | |||
| 351 | I1-09630 084-0 | GASKET; CONNECTOR | 1 | 1310- | B | FVM-HP; (B) ID=12.2 | ||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 1108- | A | |||
| 512 | I1-09709 178-0 | CLIP; PIPE | 4 | 1310- | B | FVM-HP; OD=9 H=6 | ||
| 256 | I1-33542 065-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 1310- | B | FVM-HP | ||
| 17 | I1-33519 172-0 | BLOCK; SHIFT,1ST & REV | 2 | 1310- | B | FVM-HP | ||
| 32 | I8-98236 424-0 | ARM; SHIFT,1ST & 2ND | 1 | 1309- | A | |||
| 535 | I1-33539 049-0 | SPRING; LEVER | 1 | 1310- | B | FVM-HP | ||
| 551 | I8-97011 596-2 | PIN; SPRING | 5 | 1108- | A | (A) L=32 | ||
| 171 | I8-98242 173-1 | SWITCH; NEUTRAL | 1 | 1108- | A | |||
| 525 | I1-33119 286-0 | RING; DETENT | 1 | 1310- | B | FVM-HP | ||
| 349 | I1-33549 592-0 | BOLT; EYE,AIR HOSE | 4 | 1310- | B | FVM-HP; M14 |
