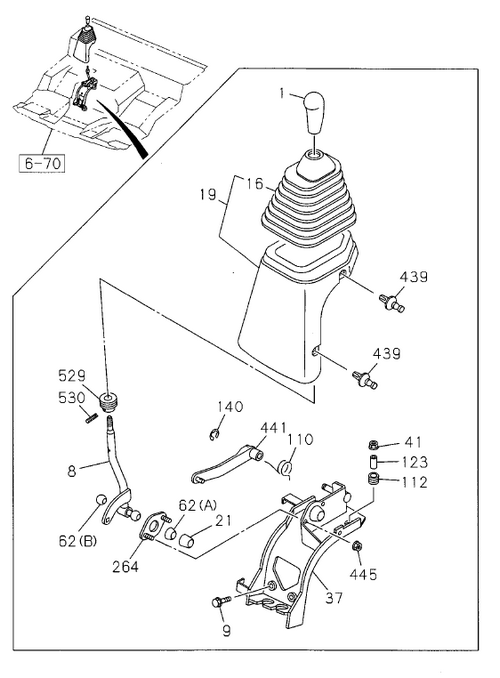

2-35 | MANUAL TRANSMISSION SHIFT CONTROL LEVER
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 529 | I1-33619 504-0 | RING; BOOT | 1 | 1108- | A | |||
| 110 | I1-33619 435-0 | SPRING; RETURN,CHANGE LEVER | 1 | 1310- | A | ZF9S1110 | ||
| 530 | I1-33619 505-0 | PIN; SPRING | 1 | 1108- | A | |||
| 21 | I1-33619 429-0 | SEAT; CHANGE LEVER | 1 | 1108- | A | |||
| 8 | I8-98093 455-0 | LEVER; CHANGE | 1 | 1310- | A | ZF9S1110 | ||
| 1 | I1-33611 070-1 | KNOB; CHANGE LEVER | 1 | 1108- | A | MZW6P | ||
| 123 | I1-33619 443-0 | COLLAR; DIST,CHANGE LEVER | 4 | 1108- | A | |||
| 8 | I8-98071 282-0 | LEVER; CHANGE | 1 | 1201- | A | MZW6P | ||
| 1 | I1-33611 099-1 | KNOB; CHALNGE LEVER | 1 | 1310- | A | ZF9S1110 | ||
| 37 | I8-98071 302-0 | BRACKET; CHANGE LEVER SUPPORT | 1 | 1201- | A | MZW6P | ||
| 110 | I8-97532 374-0 | SPRING; RETURN,CHANGE LEVER | 1 | 1903- | A | MZW6P | ||
| 16 | I1-79998 751-4 | BOOT; CHANGE LEVER | 1 | 1108- | A | |||
| 110 | I1-33619 586-0 | SPRING; RETURN,CHANGE LEVER | 1 | 1201-1902 | A | MZW6P | ||
| 264 | I1-33619 430-0 | PLATE; COVER | 1 | 1108- | A | |||
| 441 | I8-98093 449-0 | LEVER; SELECT | 1 | 1310- | A | ZF9S1110 | ||
| 41 | I8-97329 625-0 | NUT; CHANGE LEVER | 2 | 1108- | A | M8 W/DISHED WASHER | ||
| 445 | I0-91180 106-0 | NUT; PLATE | 2 | 1108- | A | M6 FLANGE | ||
| 140 | I0-91805 510-0 | RING; SNAP | 1 | 1108- | A | ID=10 | ||
| 112 | I1-33619 442-0 | RUBBER; CUSHION | 4 | 1108- | A | |||
| 439 | I8-97407 955-0 | FASTENER; COVER | 4 | 1108- | A | GRAY | ||
| 37 | I8-98093 444-0 | BRACKET; CHANGE LEVER SUPPORT | 1 | 1310- | A | ZF9S1110 | ||
| 441 | I8-98071 283-0 | LEVER; SELECT | 1 | 1201- | A | MZW6P | ||
| 19 | I8-97407 954-0 | COVER; CHANGE LEVER | 1 | 1108- | A | GRAY | ||
| 62 | I1-33619 427-0 | SEAT; BALL,CHANGE LEVER | 1 | 1108- | A | (A) | ||
| 62 | I8-97049 147-0 | SEAT; BALL,CHANGE LEVER | 1 | 1108- | A | (B) | ||
| 9 | I8-94471 688-1 | BOLT; CHANGE LEVER | 2 | 1108- | A | M8X25 |
