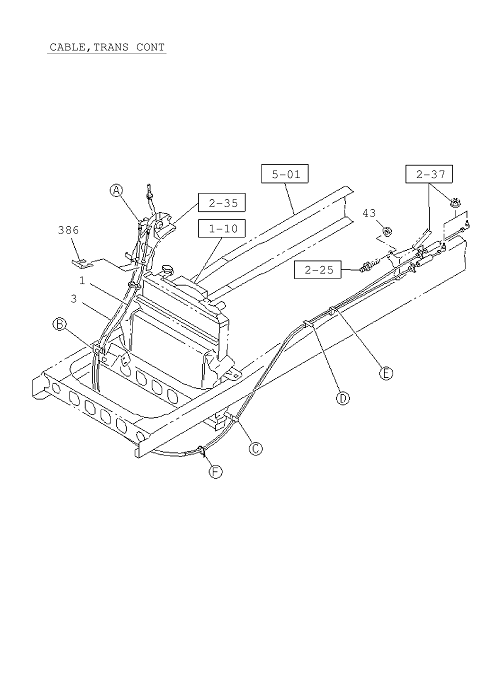

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
GIGA
GIGA FVM

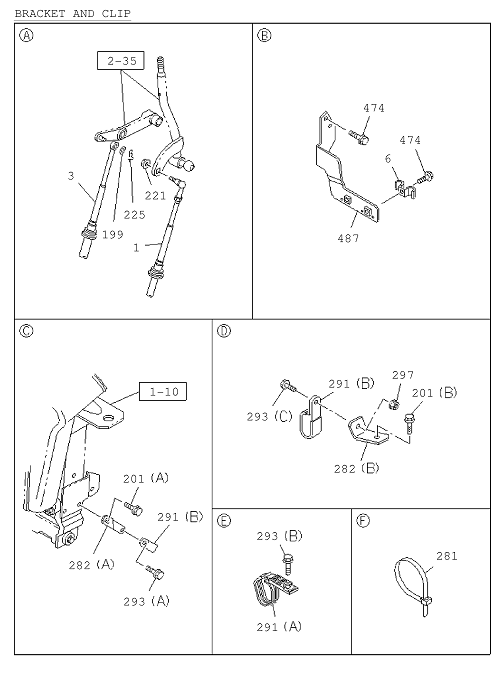

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-98017 495-A | CABLE; SELECT,TRANS CONT | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) L=3560 | ||
| 1 | I8-98017 469-A | CABLE; SHIFT,TRANS CONT | 1 | 1108- | A | L=3510 | ||
| 291 | I8-98023 991-0 | CLIP; SHIFT TO SELECT,FRAME | 1 | 1108- | A | (A) | ||
| 293 | I0-28050 820-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 1108- | A | (B) M8X20 FLANGE | ||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 1108- | A | ID=8.4 OD=16 | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 1108- | A | |||
| 201 | I0-28050 820-0 | BOLT; BRKT | 1 | 1108- | A | (B) M8X2 0 FLANGE | ||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 1108- | A | |||
| 487 | I8-98184 319-A | BRACKET; CONT CABLE | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) IDN | ||
| 297 | I0-91180 108-0 | NUT; CLIP | 1 | 1108- | A | M8 FLANGE | ||
| 1 | I8-98017 469-A | CABLE; SHIFT,TRANS CONT | 1 | 1108- | A | L=3510 | ||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 1108- | A | L=2 7 . 7 | ||
| 1 | I8-98184 317-A | CABLE; SHIFT,TRANS CONT | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) L=3630 | ||
| 3 | I8-98010 474-A | CABLE; SELECT,TRANS CONT | 1 | 1108- | A | L=3690 | ||
| 1 | I8-98017 469-A | CABLE; SHIFT,TRANS CONT | 1 | 1108- | A | L=3510 | ||
| 43 | I7-05110 010-A | NUT; BRKT | 2 | 1108- | A | M10 FLANGE | ||
| 487 | I8-98184 319-A | BRACKET; CONT CABLE | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) IDN | ||
| 293 | I0-28050 816-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 1108- | A | (A) M8X16 FLANGE | ||
| 6 | I1-09700 739-0 | CLIP; CABLE | 1 | 1108- | A | ID=11 & 11 L=17.5 & 17.5 | ||
| 1 | I8-98017 469-A | CABLE; SHIFT,TRANS CONT | 1 | 1108- | A | L=3510 | ||
| 3 | I8-98010 474-A | CABLE; SELECT,TRANS CONT | 1 | 1108- | A | L=3690 | ||
| 293 | I0-28650 820-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 1108- | A | (C) M8X2 0 FLANGE IDN | ||
| 6 | I8-98023 991-0 | CLIP; CABLE | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) | ||
| 282 | I8-98098 265-2 | BRACKET; TRANS SIDE | 1 | 1310- | A | 6HK1-TCS ENG(80L) | ||
| 282 | I8-98010 418-0 | BRACKET; TRANS SIDE | 1 | 1108- | A | (A) | ||
| 316 | I8-98086 439-0 | BRACKET; CLIP | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) | ||
| 43 | I7-05110 010-A | NUT; BRKT | 2 | 1108- | A | M10 FLANGE | ||
| 487 | I8-98183 009-0 | BRACKET; CONT CABLE | 1 | 1108- | A | |||
| 282 | I1-82699 199-0 | BRACKET; TRANS SIDE | 1 | 1108- | A | (B) | ||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 1108- | A | M8 FLANGE | ||
| 1 | I8-98184 317-A | CABLE; SHIFT,TRANS CONT | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) L=3630 | ||
| 201 | I0-28050 816-0 | BOLT; BRKT | 1 | 1108- | A | (A) M8X16 FLANGE | ||
| 291 | I0-95325 026-0 | CLIP; SHIFT TO SELECT,FRAME | 2 | 1108- | A | (B) ID=11X2 L=16 | ||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 1108- | A | L=2 7 . 7 | ||
| 3 | I8-98017 495-A | CABLE; SELECT,TRANS CONT | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) L=3560 | ||
| 281 | I1-09707 001-1 | CLIP; BAND | 1 | 1108- | A | L=300 |
