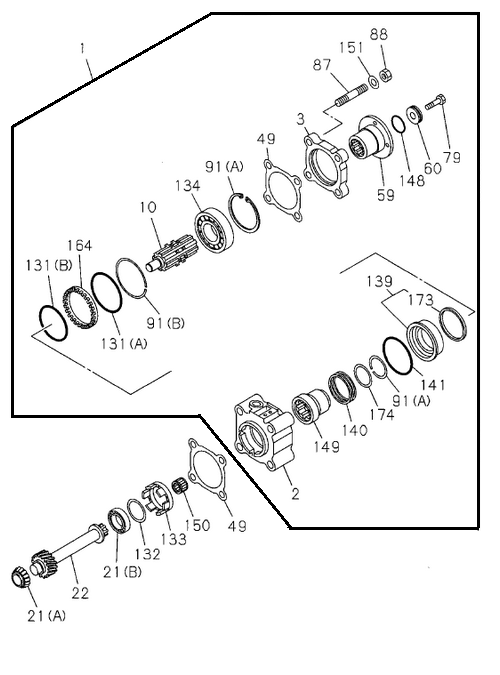

2-82 | POWER TAKE OFF; TRANSMISSION REAR
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 148 | I1-38519 014-0 | GASKET; YOKE | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 062-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=0.90 | ||
| 132 | I1-33389 048-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.55 | ||
| 141 | I1-38129 035-0 | GASKET; PISTON,RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 173 | I1-38129 034-0 | RING; MAGNET | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 047-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.60 | ||
| 132 | I1-33389 055-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.25 | ||
| 21 | I1-33389 068-0 | BEARING; MAIN DRIVE SHAFT,TRANS | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 91 | I1-38219 038-0 | RING; SNAP | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 059-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.05 | ||
| 132 | I1-33389 056-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.20 | ||
| 139 | I1-38129 039-0 | PISTON; RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 066-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=0.70 | ||
| 59 | I1-38229 020-0 | YOKE; SPINDLE,PTO OUTPUT SHAFT, RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I8-98080 566-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=0.80 | ||
| 150 | I8-98080 565-0 | BEARING; OUTPUT SHAFT | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 91 | I1-38219 037-0 | RING; SNAP | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 063-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=0.85 | ||
| 59 | I1-38229 020-0 | YOKE; SPINDLE,PTO OUTPUT SHAFT, RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 053-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.30 | ||
| 49 | I1-33132 084-0 | GASKET; PTO GEAR CASE TO TRANS | 2 | 1310- | A | PTO CONTROL<SV6> | ||
| 87 | I1-38119 103-0 | STUD; GEAR CASE | 4 | 1310- | A | PTO CONTROL<SV6> | ||
| 151 | I8-98080 563-0 | WASHER; PL,COVER | 4 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 060-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.00 | ||
| 131 | I1-38129 036-0 | GASKET; OUTPUT SHAFT | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 88 | I1-38119 104-0 | NUT; COVER | 4 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 050-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.45 | ||
| 132 | I1-33389 052-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.35 | ||
| 3 | I1-38159 009-0 | COVER; GEAR CASE,TRANS RI | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 60 | I1-38519 021-0 | WASHER; YOKE,OUTPUT SHAFT,RR PT | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I8-98080 571-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.50 | ||
| 1 | I8-98080 559-0 | POWER TAKE OFF ASM; TRANS | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 1 | I8-98080 559-0 | POWER TAKE OFF ASM; TRANS | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 058-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.10 | ||
| 164 | I1-38129 038-0 | RING; CENTERING,PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 065-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=0.75 | ||
| 131 | I1-38129 035-0 | GASKET; OUTPUT SHAFT | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 10 | I1-38221 064-0 | SHAFT; PTO OUTPUT GEAR,TRANS RI | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 22 | I8-98095 602-0 | SHAFT; MAIN DRIVE,TRANS RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 057-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.15 | ||
| 132 | I1-33389 047-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.60 | ||
| 22 | I8-98095 602-0 | SHAFT; MAIN DRIVE,TRANS RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 174 | I1-38129 040-0 | DISK; PRESSURE | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 055-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.25 | ||
| 132 | I8-98080 567-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=0.95 | ||
| 140 | I1-38129 042-0 | SPRING; PISTON,RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 79 | I1-37249 216-0 | BOLT | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 134 | I1-38219 015-0 | BEARING; OUTPUT SHAFT | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I1-33389 067-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=0.65 | ||
| 149 | I1-38229 060-0 | SLEEVE; SLIDING | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 132 | I8-98080 570-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.40 | ||
| 132 | I1-33389 058-0 | SHIM; BRG | 1 | 1310- | A | PTO CONTROL<SV6> T=1.10 | ||
| 21 | I1-33389 090-0 | BEARING; MAIN DRIVE SHAFT,TRANS | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 2 | I1-38111 120-0 | CASE; GEAR,TRANS RR PTO | 1 | 1310- | A | PTO CONTROL<SV6> | ||
| 133 | I1-33389 046-0 | BUSHING; SHAFT | 1 | 1310- | A | PTO CONTROL<SV6> |
