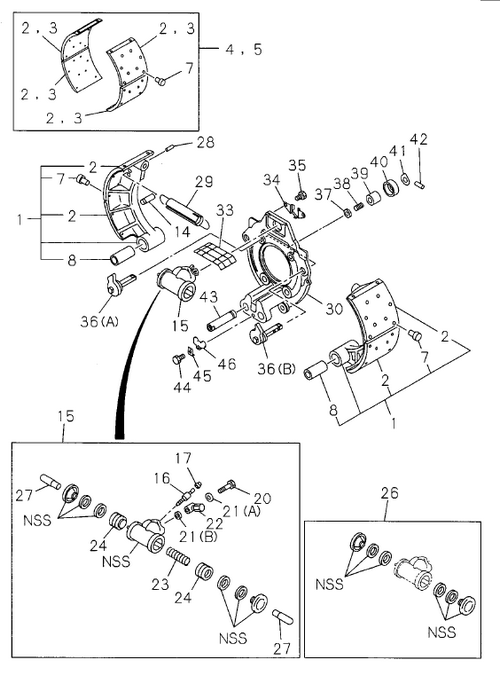

| 8 |
I1-47112 011-0 |
|
BUSHING; BRK SHOE |
4 |
1108- |
|
A |
|
| 2 |
I1-47125 811-0 |
|
LINING; FRT BRK SHOE,STANDARD |
8 |
1108- |
|
A |
|
| 24 |
I9-47624 210-0 |
|
PISTON; FRT WHEEL CYL |
4 |
1108- |
|
A |
|
| 15 |
I1-47600 778-0 |
|
CYLINDER; WHEEL,FRT BRK |
1 |
1108- |
|
A |
|
| 17 |
I1-47619 011-0 |
|
CAP; BLEEDER,FRT WHEEL CYL |
2 |
1108- |
|
A |
OD=12 |
| 3 |
I1-47125 812-0 |
|
LINING; FRT BRK SHOE,OVER SIZE |
8 |
1108- |
|
A |
|
| 40 |
I1-47169 031-0 |
|
COVER; BOOT,ADJ CAM |
4 |
1108- |
|
A |
|
| 4 |
I1-88310 495-1 |
|
LINING SET; FRT BRK,STANDARD |
2 |
1108- |
|
A |
|
| 14 |
I1-47119 017-1 |
|
PIN; SHOE RETURN SPR |
4 |
1108- |
|
A |
L=73.5 |
| 23 |
I9-09940 435-0 |
|
SPRING; COIL |
2 |
1108- |
|
A |
|
| 5 |
I1-88310 496-1 |
|
LINING SET; FRT BRK,OVER SIZE |
2 |
1108- |
|
A |
|
| 39 |
I1-47169 034-0 |
|
BOOT; ADJ CAM |
4 |
1108- |
|
A |
|
| 42 |
I1-47169 030-0 |
|
PIN; SPINDLE |
4 |
1108- |
|
A |
|
| 22 |
I1-47631 057-1 |
|
JOINT; PIPE |
2 |
1108- |
|
A |
|
| 37 |
I1-47169 033-0 |
|
WASHER; ADJ CAM |
4 |
1108- |
|
A |
|
| 1 |
I1-47120 706-0 |
|
SHOE; BRK,FRT |
4 |
1108- |
|
A |
|
| 15 |
I1-47600 777-0 |
|
CYLINDER; WHEEL,FRT BRK |
1 |
1108- |
|
A |
|
| 29 |
I1-09583 269-1 |
|
SPRING; RETURN,FRT BRK SHOE |
2 |
1108- |
|
A |
|
| 33 |
I1-47159 080-0 |
|
COVER; WHEEL CYL |
2 |
1108- |
|
A |
|
| 38 |
I1-47169 046-0 |
|
SPRING; ADJ CAM |
4 |
1108- |
|
A |
|
| 7 |
I1-09732 034-0 |
|
RIVET; LINING,FRT BRK |
80 |
1108- |
|
A |
L=18.5 |
| 21 |
I1-09630 020-0 |
|
GASKET; UNION BOLT |
2 |
1108- |
|
A |
(B) ID=12.2 |
| 16 |
I1-47615 005-0 |
|
SCREW; BLEEDER,FRT BRK |
2 |
1108- |
|
A |
L=66.5 |
| 41 |
I1-47169 032-1 |
|
INDICATOR |
4 |
1108- |
|
A |
|
| 43 |
I1-47131 038-0 |
|
PIN; ANCHOR |
4 |
1108- |
|
A |
L=106.5 |
| 46 |
I1-47133 005-0 |
|
PLATE; LOCK |
2 |
1108- |
|
A |
|
| 21 |
I1-09630 019-0 |
|
GASKET; UNION BOLT |
2 |
1108- |
|
A |
(A) ID=15.2 |
| 44 |
I0-20851 016-0 |
|
BOLT; LOCK,ANCHOR PIN |
2 |
1108- |
|
A |
M10X16 |
| 20 |
I1-47634 006-0 |
|
BOLT; JOINT |
2 |
1108- |
|
A |
|
| 15 |
I1-47600 778-0 |
|
CYLINDER; WHEEL,FRT BRK |
1 |
1108- |
|
A |
|
| 34 |
I1-47159 094-0 |
|
PLATE; DIRECTION,FRT |
2 |
1108- |
|
A |
|
| 35 |
I0-50551 235-0 |
|
BOLT; FRT WHEEL CYL |
4 |
1108- |
|
A |
M12X35 W/LK WASHER |
| 28 |
I1-47116 002-0 |
|
PIN; SHOE ADJ CAM GUIDE |
4 |
1108- |
|
A |
|
| 36 |
I1-47165 059-1 |
|
CAM ASM; ADJ |
2 |
1108- |
|
A |
(B) |
| 4 |
I6-88310 495-0 |
|
LINING SET; FRT BRK,STANDARD |
2 |
1104- |
|
A |
|
| 15 |
I1-47600 777-0 |
|
CYLINDER; WHEEL,FRT BRK |
1 |
1108- |
|
A |
|
| 36 |
I1-47165 058-1 |
|
CAM ASM; ADJ |
2 |
1108- |
|
A |
(A) |
| 30 |
I1-47137 435-0 |
|
BRACKET; ANCHOR,FRT |
2 |
1108- |
|
A |
|
| 45 |
I1-47133 011-0 |
|
WASHER; LK |
2 |
1108- |
|
A |
|
| 27 |
I1-47621 009-0 |
|
ROD; PUSH |
4 |
1108- |
|
A |
|
| 26 |
I1-87830 521-0 |
|
CUP SET; FRT WHEEL CYL |
2 |
1108- |
|
A |
ID=47.5 |
