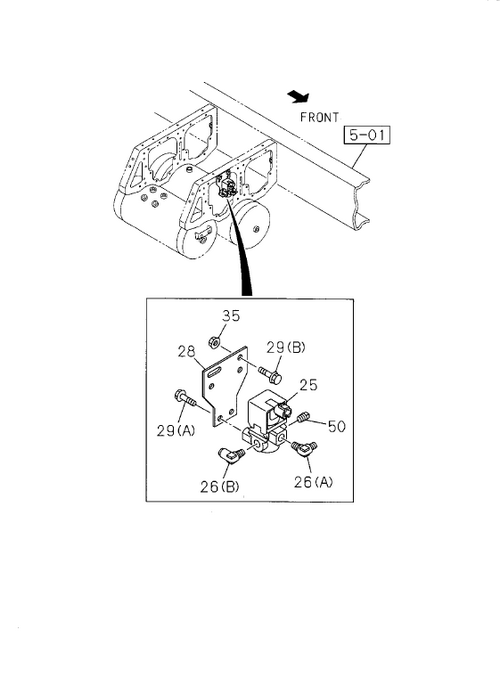

3-25 | BRAKE LOCK CONTROL
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 50 | I9-99204 513-0 | PLUG | 1 | 1108- | A | PT1/4 | ||
| 29 | I0-28650 825-0 | BOLT; BRKT,CONT VLV | 2 | 1108- | A | (B) M8X25 FLANGE IDN | ||
| 35 | I0-91180 108-0 | NUT; BRKT | 2 | 1108- | A | M8 FLANGE | ||
| 26 | I1-09650 430-0 | UNION; CONT VLV | 1 | 1108- | A | (A) M12 & PT1/4 ELBOW | ||
| 28 | I8-98273 570-0 | BRACKET; CONT VLV | 1 | 1108- | A | |||
| 25 | I1-82563 871-2 | VALVE; CONT,BRK LOCK | 1 | 1108- | A | |||
| 26 | I1-09660 956-0 | UNION; CONT VLV | 1 | 1108- | A | (B) DIN8 & R1/4 ELBOW | ||
| 29 | I0-28650 820-0 | BOLT; BRKT,CONT VLV | 2 | 1108- | A | (A) M8X2 0 FLANGE IDN | ||
| 28 | I8-98273 570-0 | BRACKET; CONT VLV | 1 | 1108- | A |
