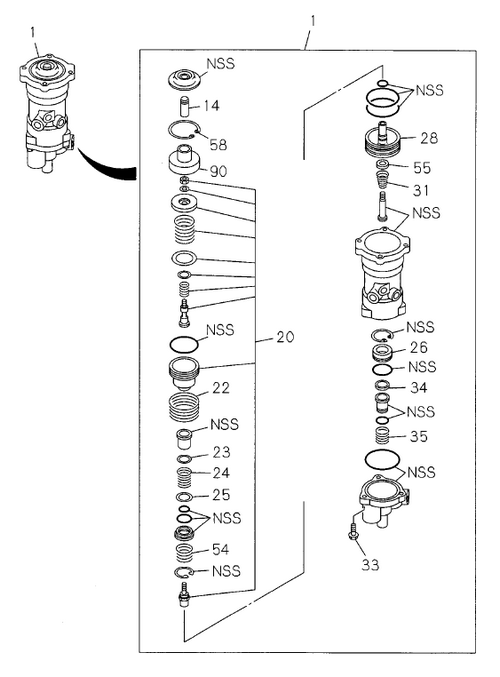

3-34 | BRAKE VALVE; AIR
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I1-48119 644-0 | PISTON; UPR,BRK VLV | 1 | 1108- | A | |||
| 31 | I1-48123 079-0 | SPRING; VLV,BRK VLV | 1 | 1108- | A | |||
| 34 | I1-48129 307-0 | RETAINER; VLV,BRK VLV | 1 | 1108- | A | |||
| 23 | I1-48129 299-0 | WASHER; UPR,BRK VLV | 1 | 1108- | A | |||
| 1 | I8-98222 789-0 | VALVE; BRK | 1 | 1211- | A | |||
| 33 | I1-48119 213-0 | BOLT; BODY,BRK VLV | 3 | 1108- | A | |||

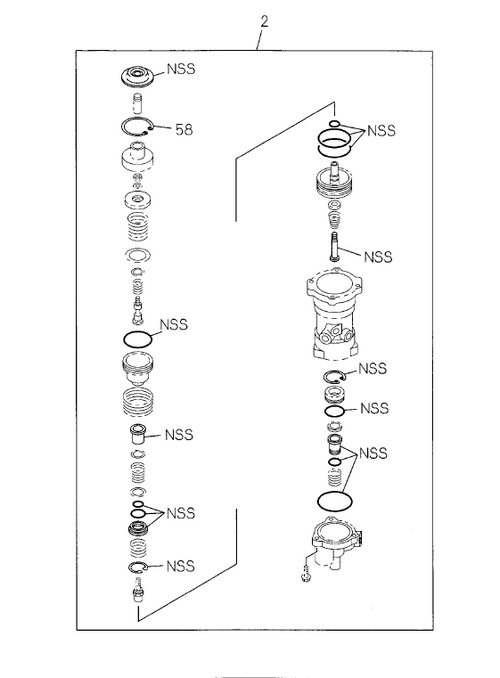

| 2 | I6-85576 454-0 | REPAIR KIT; BRK VLV | 1 | 1108- | A | IDN | ||
| 2 | I1-85576 454-A | REPAIR KIT; BRK VLV | 1 | 1108- | A | |||
| 58 | I1-48219 198-0 | RING; RET,EXH,BRK VLV | 1 | 1108- | A | |||
| 14 | I1-48119 641-0 | PLUNGER; BRK VLV | 1 | 1108- | A | |||
| 26 | I1-48129 308-0 | RETAINER; VLV,BRK VLV | 1 | 1108- | A | |||
| 25 | I1-48129 300-0 | WASHER; PISTON,BRK VLV | 1 | 1108- | A | |||
| 90 | I1-48119 642-0 | GUIDE; PLUNGER | 1 | 1108- | A | |||
| 2 | I1-85576 454-A | REPAIR KIT; BRK VLV | 1 | 1211- | A | |||
| 2 | I1-85576 454-A | REPAIR KIT; BRK VLV | 1 | 1108- | A | |||
| 1 | I8-98222 789-0 | VALVE; BRK | 1 | 1108- | A | |||
| 28 | I1-48129 302-0 | PISTON; LWR,BRK VLV | 1 | 1108- | A | |||
| 24 | I1-48123 077-0 | SPRING; UPR,BRK VLV | 1 | 1108- | A | |||
| 22 | I1-48123 076-0 | SPRING; PISTON,LWR,BRK VLV | 1 | 1108- | A | |||
| 35 | I1-48123 078-0 | SPRING; VLV,BRK VLV | 1 | 1108- | A | |||
| 55 | I1-48129 305-0 | RETAINER; PLATE,BRK VLV | 1 | 1108- | A | |||
| 54 | I1-48123 075-0 | SPRING; PISTON,UPR,BRK VLV | 1 | 1108- | A |
