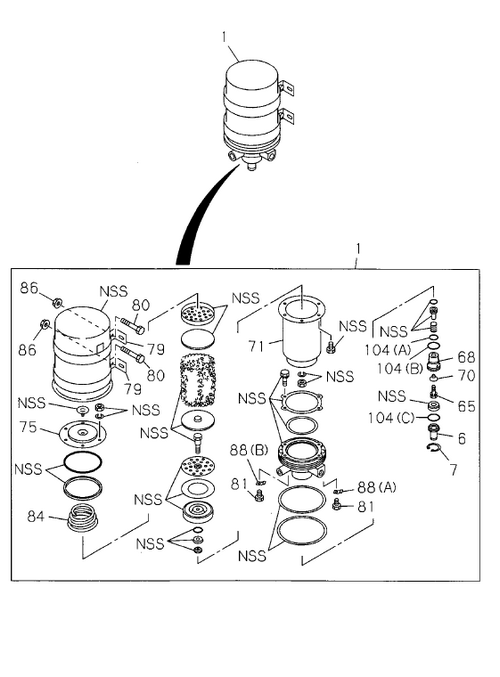

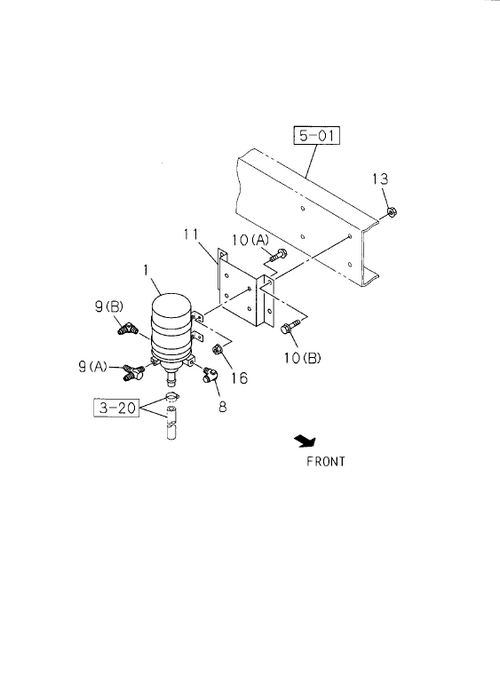

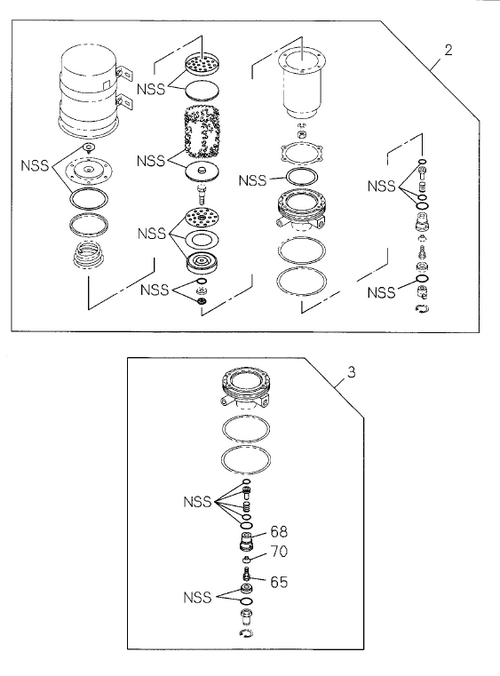

3-46 | AIR DRYER
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I1-48320 026-2 | CONNECTOR; PIPE,AIR DRYER 1-09656-230-1 | 1 | 1108- | A | (B) | ||
| 88 | I1-48199 179-0 | PLATE; STOPPER | 1 | 1108- | A | (B) | ||
| 80 | I1-48199 190-0 | BOLT; BRKT | 2 | 1108- | A | |||
| 71 | I1-48199 156-1 | CASE; INNER,AIR DRYER | 1 | 1108- | A | |||
| 7 | I1-48199 154-0 | RING; SNAP,AIR DRYER | 1 | 1108- | A | |||
| 65 | I1-48199 413-0 | BOLT; PURGE VLV | 1 | 1108- | A | |||
| 68 | I1-48199 216-0 | BODY; VALVE | 1 | 1108- | A | |||
| 88 | I1-48199 178-0 | PLATE; STOPPER | 1 | 1108- | A | (A) | ||
| 11 | I1-48317 876-A | BRACKET; AIR DRYER | 1 | 1108- | A | |||
| 70 | I1-48199 105-0 | VALVE; AIR DRYER | 1 | 1108- | A | |||
| 79 | I1-48199 189-0 | BRACKET; AIR DRYER | 2 | 1108- | A | |||
| 9 | I1-09656 230-1 | CONNECTOR; PIPE,AIR DRYER | 1 | 1108- | A | (A) M12X2 & PT1/4 3WAY | ||
| 104 | I1-48199 109-0 | GASKET | 1 | 1108- | A | (B) | ||
| 104 | I1-48199 153-0 | GASKET | 1 | 1108- | A | (C) | ||
| 104 | I1-48199 108-0 | GASKET | 1 | 1108- | A | (A) | ||
| 86 | I1-48199 320-0 | NUT; BRKT | 2 | 1108- | A | |||
| 6 | I1-48199 101-0 | COVER; EXH,AIR DRYER | 1 | 1108- | A | |||
| 10 | I0-28651 035-0 | BOLT; AIR DRYER | 4 | 1108- | A | (B) M10X35 FLANGE IDN | ||
| 13 | I7-05110 010-A | NUT; AIR DRYER | 4 | 1108- | A | M10 FLANGE | ||
| 1 | I8-98182 324-0 | DRYER; AIR | 1 | 1108- | A | |||
| 65 | I1-48199 413-0 | BOLT; PURGE VLV | 1 | 1108- | A | |||
| 81 | I1-48199 177-0 | BOLT; CASE,AIR DRYER | 2 | 1108- | A | |||
| 8 | I1-09660 960-0 | CONNECTOR; OUT,AIR DRYER | 1 | 1108- | A | DIN12 & R1/2 ELBOW | ||
| 11 | I1-48317 876-A | BRACKET; AIR DRYER | 1 | 1108- | A | |||
| 75 | I1-48199 167-0 | COVER; CASE,AIR DRYER | 1 | 1108- | A | |||
| 10 | I0-28651 025-0 | BOLT; AIR DRYER | 4 | 1108- | A | (A) M10X25 FLANGE IDN | ||
| 16 | I7-05110 010-A | NUT; BRKT | 4 | 1108- | A | M10 FLANGE | ||
| 84 | I1-48199 166-0 | SPRING; AIR DRYER | 1 | 1108- | A | |||
| 3 | I1-85576 057-1 | PISTON KIT; AIR DRYER | 1 | 1108- | A | |||
| 13 | I7-05110 010-A | NUT; AIR DRYER | 4 | 1108- | A | M10 FLANGE | ||
| 2 | I1-85576 463-0 | REPAIR KIT; AIR DRYER | 1 | 1108- | A | |||
| 16 | I7-05110 010-A | NUT; BRKT | 4 | 1108- | A | M10 FLANGE |
