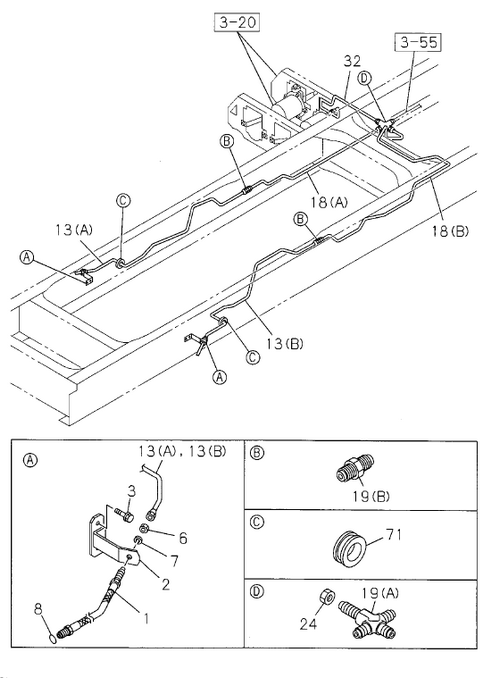

3-52 | BRAKE PIPING; OIL,FRONT
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1108- | A | ID=2 4 OD=3 0 T=17 | ||
| 13 | I8-98185 953-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | (A) L=1405 | ||
| 7 | I0-91510 512-0 | WASHER; LK,FLEX HOSE,FRT BRK | 2 | 1108- | A | ID=12.2 | ||
| 8 | I9-09920 472-0 | GASKET; FLEX HOSE,FRT BRK | 2 | 1108- | A | ID=9 OD=17 | ||
| 2 | I8-98177 524-0 | BRACKET; FLEX HOSE,FRT BRK | 2 | 1108- | A | |||
| 32 | I8-98184 180-A | PIPE; OIL,AIR MASTER TO UNION | 1 | 1108- | A | L=381 | ||
| 6 | I9-09840 280-0 | NUT; FLEX HOSE,FRT BRK | 2 | 1108- | A | M12 | ||
| 13 | I1-47428 734-0 | PIPE; OIL,UNION TO UNION | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) L=1331 SERVICED BY L=1370 | ||
| 3 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,FRT BRK | 4 | 1108- | A | M8X2 5 FLANGE IDN | ||
| 13 | I8-98185 953-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | (A) L=1405 | ||
| 32 | I8-98184 180-A | PIPE; OIL,AIR MASTER TO UNION | 1 | 1108- | A | L=381 | ||
| 13 | I1-47428 734-0 | PIPE; OIL,UNION TO UNION | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) L=1334 SERVICED BY L=1370 | ||
| 13 | I1-47428 734-0 | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | (B) L=1311 SERVICED BY L=13 70 | ||
| 19 | I0-92113 006-0 | UNION; OIL PIPE | 2 | 1108- | A | (B) M12 L=40 | ||
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1108- | A | ID=2 4 OD=3 0 T=17 | ||
| 18 | I1-47428 727-0 | PIPE; OIL,UNION TO FRT FLEX HOSE | 1 | 1108- | A | (A) L=689 SERVICED BY L=70 0 | ||
| 24 | I7-05014 012-A | NUT; UNION,OIL PIPE | 1 | 1108- | A | M14 | ||
| 1 | I0-05212 610-0 | HOSE; FLEX, FRT BRK | 2 | 1108- | A | L=610 | ||
| 19 | I1-09656 019-1 | UNION; OIL PIPE | 1 | 1108- | A | (A) | ||
| 18 | I1-47428 739-0 | PIPE; OIL,UNION TO FRT FLEX HOSE | 1 | 1108- | A | (B) L=1893 SERVICED BY L=20 00 | ||
| 24 | I7-05014 012-A | NUT; UNION,OIL PIPE | 1 | 1108- | A | M14 |
