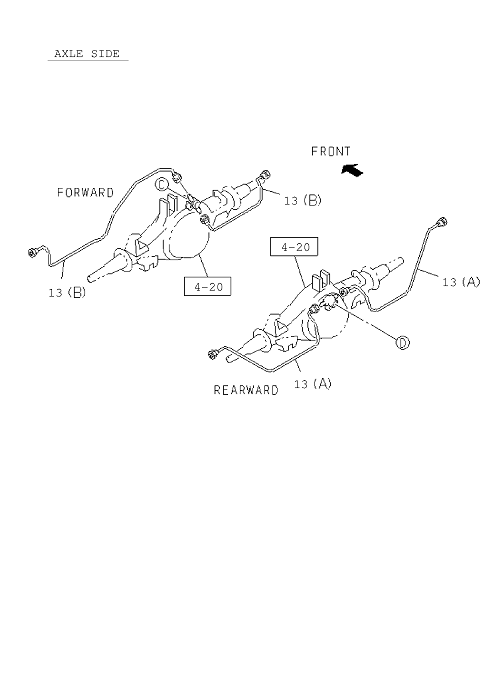

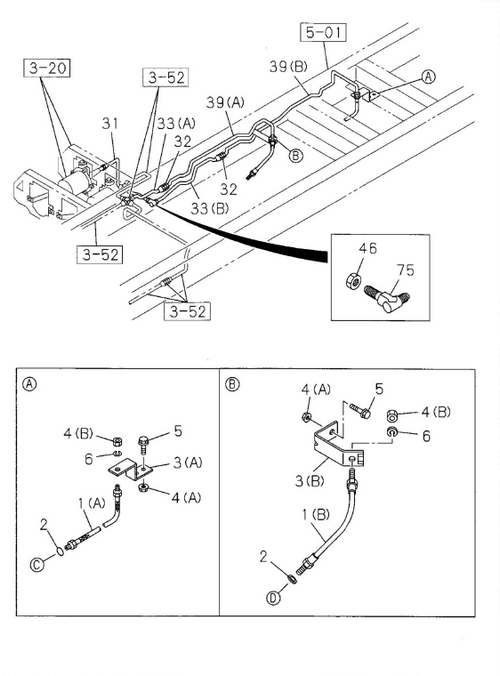

3-55 | BRAKE PIPING; OIL,REAR
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I8-98190 810-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (A) | ||
| 39 | I1-47428 742-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1108- | A | (B) L=2409 SERVICED BY L=2500 | ||
| 33 | I1-47428 738-0 | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 5500MM(55W) (B) L=1743 SERVICED BY L=1820 | ||
| 31 | I1-47428 726-0 | PIPE; OIL,AIR MASTER TO UNION | 1 | 1108- | A | L=646 SERVICED BY L=650 | ||
| 13 | I8-98191 101-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (B) | ||
| 13 | I8-98190 809-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (A) | ||
| 6 | I0-91510 512-0 | WASHER; LK,FLEX HOSE | 2 | 1108- | A | ID=12.2 | ||
| 13 | I8-98191 102-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (B) | ||
| 33 | I1-47428 746-0 | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 7100MM(71W) (B) L=3363 SERVICED BY L=3 40 0 | ||
| 13 | I8-98190 810-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (A) | ||
| 1 | I1-09364 201-0 | HOSE; FLEX,RR BRK | 1 | 1108- | A | (A) L=675 | ||
| 13 | I8-98191 101-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (B) | ||
| 1 | I1-09364 188-0 | HOSE; FLEX,RR BRK | 1 | 1108- | A | (B) L=450 | ||
| 39 | I1-47428 729-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1108- | A | (A) L=856 SERVICED BY L=900 | ||
| 33 | I1-47428 745-0 | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 7100MM(71W) (A) L=3196 SERVICED BY L=3200 | ||
| 32 | I0-92113 006-0 | UNION; OIL PIPE | 2 | 1108- | A | M12 L=40 | ||
| 2 | I9-09920 472-0 | GASKET; FLEX HOSE,RR BRK | 2 | 1108- | A | ID=9 OD=17 | ||
| 75 | I0-92125 206-0 | UNION; OIL PIPE | 1 | 1108- | A | M12 ELBOW | ||
| 3 | I1-47465 608-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 1108- | A | (A) | ||
| 33 | I8-98179 288-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 5500MM(55W) (A) L=1576 SERVICED BY L=1620 | ||
| 4 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,RR BRK | 4 | 1108- | A | (A) M8 FLANGE | ||
| 5 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,RR BRK | 4 | 1108- | A | M8X30 FLANGE | ||
| 33 | I8-98179 288-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 5500MM(55W) (A) L=1576 SERVICED BY L=1620 | ||
| 13 | I8-98191 102-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (B) | ||
| 4 | I9-09840 280-0 | NUT; BRKT,FLEX HOSE,RR BRK | 2 | 1108- | A | (B) M12 | ||
| 13 | I8-98190 809-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (A) | ||
| 46 | I9-09840 280-0 | NUT; UNION,OIL PIPE | 1 | 1108- | A | M12 | ||
| 3 | I1-47475 357-2 | BRACKET; FLEX HOSE,RR BRK | 1 | 1108- | A | (B) |
