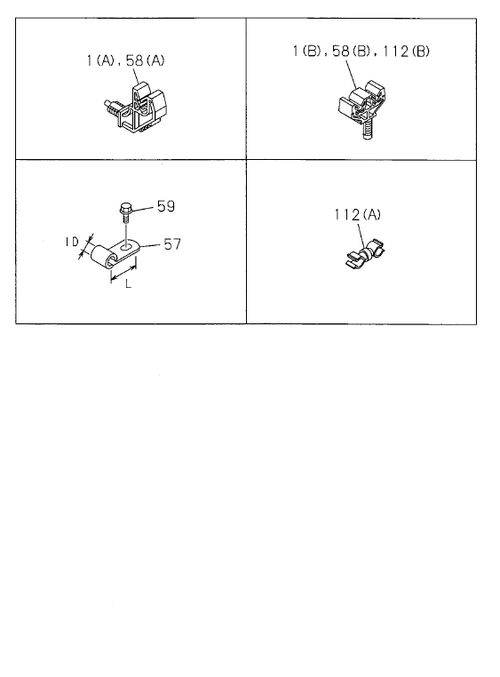

3-58 | FIXING PARTS; OIL PIPING
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 58 | I1-09701 247-1 | CLIP; OIL PIPE | 4 | 1108- | A | (A) ID=6.35 | ||
| 112 | I8-94167 742-0 | CLIP; OIL PIPE | 1 | 1108- | A | (A) ID=6 & 8.3 | ||
| 59 | I0-28050 810-0 | BOLT; BRK PIPE,RR AXLE | 5 | 1108- | A | M8X10 FLANGE | ||
| 57 | I0-95234 635-0 | CLIP; BRK PIPE,RR AXLE | 5 | 1108- | A | ID=7 L=2 0 | ||
| 112 | I8-98012 254-1 | CLIP; OIL PIPE | 8 | 1108- | A | WHEEL BASE 7100MM(71W) (B) | ||
| 1 | I8-98012 254-1 | CLIP; OIL PIPE TO BODY | 3 | 1108- | A | (B) | ||
| 1 | I1-09701 247-1 | CLIP; OIL PIPE TO BODY | 7 | 1108- | A | (A) ID=6.35 | ||
| 1 | I8-98012 254-1 | CLIP; OIL PIPE TO BODY | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) | ||
| 112 | I8-98012 254-1 | CLIP; OIL PIPE | 4 | 1108- | A | WHEEL BASE 550 0MM(55W) (B) | ||
| 58 | I8-98012 254-1 | CLIP; OIL PIPE | 1 | 1108- | A | (B) | ||
| 1 | I1-09701 247-1 | CLIP; OIL PIPE TO BODY | 9 | 1310- | A | 6HK1-TCS ENG(8 0L) ID=6.3 5 | ||
| 57 | I0-95234 635-0 | CLIP; BRK PIPE,RR AXLE | 4 | 1108- | A | ID=7 L=2 0 | ||
| 59 | I0-28050 810-0 | BOLT; BRK PIPE,RR AXLE | 4 | 1108- | A | M8X10 FLANGE |
