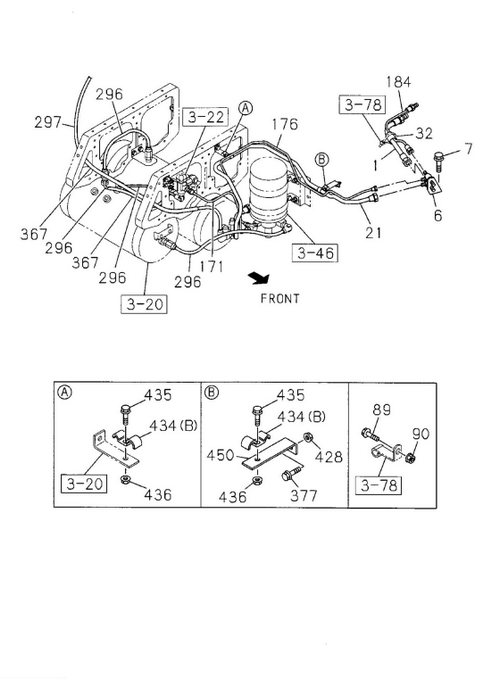

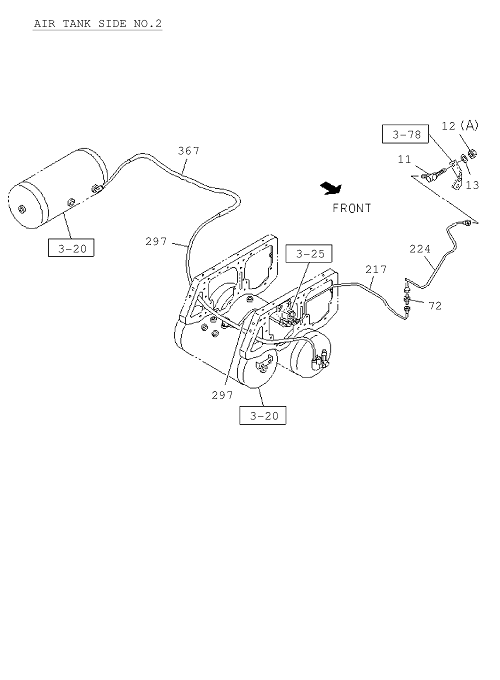

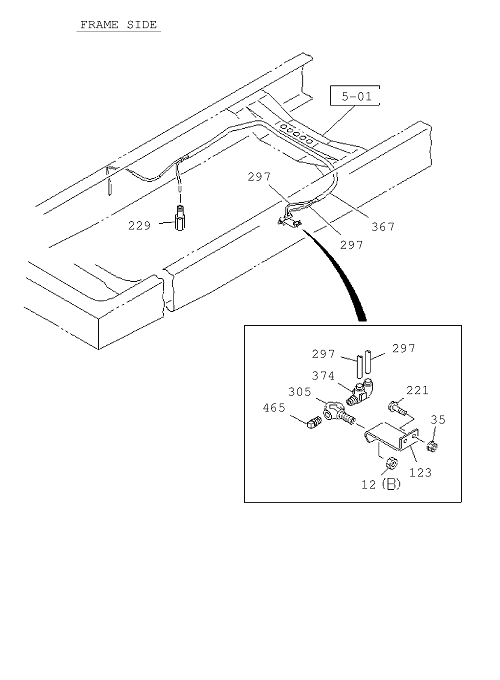

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 21 | I8-98189 194-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 1108- | A | L=1713 IDN | ||
| 184 | I1-09363 624-0 | HOSE; FLEX,AIR GOV | 1 | 1108- | A | L=350 | ||
| 32 | I1-09337 023-0 | SLEEVE; RUBBER,AIR PIPE | 1 | 1108- | A | ID=32 OD=36 L=50 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | 3 | 1108- | A | SERVICED BY L=2000 OD=12 | ||
| 374 | I8-98179 708-0 | CONNECTOR | 1 | 1108- | A | EXC. PTO CONTROL<SV6> | ||
| 217 | I8-98179 119-A | PIPE; VAC,UNION TO MAG VLV | 1 | 1108- | A | L=954 SERVICED BY L=1000 | ||
| 72 | I0-92113 006-0 | UNION; AIR PIPE | 1 | 1108- | A | M12 L=40 | ||
| 217 | I8-98179 119-A | PIPE; VAC,UNION TO MAG VLV | 1 | 1108- | A | L=954 SERVICED BY L=1000 | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | 2 | 1108- | A | SERVICED BY L=2000 ID=13 | ||
| 224 | I8-98184 733-A | PIPE; AIR,UNION TO FLEX HOSE | 1 | 1108- | A | L=720 SERVICED BY L=800 | ||
| 297 | I1-87411 006-0 | TUBE; NYLON | 1 | 1108- | A | SERVICED BY L=2000 OD=8 | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | 1 | 1108- | A | SERVICED BY L=2000 OD=8 | ||
| 229 | I1-09660 873-0 | ADAPTER; NYLON TUBE | 1 | 1108- | A | DIN8 & M12 STRAIGHT | ||
| 224 | I8-98184 733-A | PIPE; AIR,UNION TO FLEX HOSE | 1 | 1108- | A | L=720 SERVICED BY L=800 | ||
| 374 | I1-09650 430-0 | CONNECTOR | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) M12 & PT1/4 ELBOW | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | 1 | 1108- | A | SERVICED BY L=4000 OD=12 | ||
| 377 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 1108- | A | M8X3 0 FLANGE | ||
| 123 | I8-98118 545-0 | BRACKET; UNION | 1 | 1108- | A | EXC. PTO CONTROL<SV6> | ||
| 171 | I1-47428 808-0 | PIPE; AIR,GOV TO AIR DRYER | 1 | 1108- | A | L=515 SERVICED BY L=550 | ||
| 434 | I1-09700 675-0 | CLIP | 2 | 1108- | A | ID=16 & 7 L=21 & 17 | ||
| 176 | I1-49116 726-0 | PIPE; AIR,AIR DRYER TO UNION | 1 | 1108- | A | L=1427 SERVICED BY L=1500 | ||
| 7 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 1108- | A | M8X3 0 FLANGE | ||
| 465 | I9-99204 513-0 | PLUG | 1 | 1108- | A | EXC. PTO CONTROL<SV6> PT1/4 | ||
| 221 | I0-28650 835-0 | BOLT; BRKT | 2 | 1108- | A | EXC. PTO CONTROL<SV6> M8X35 FLANGE | ||
| 11 | I0-92125 206-0 | UNION; AIR PIPE | 1 | 1108- | A | M12 ELBOW | ||
| 176 | I1-49116 726-0 | PIPE; AIR,AIR DRYER TO UNION | 1 | 1108- | A | L=1427 SERVICED BY L=1500 | ||
| 450 | I1-47476 758-0 | BRACKET; CLIP | 1 | 1108- | A | L=85 | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | 1 | 1108- | A | SERVICED BY L=2000 ID=13 | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 2 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | 1 | 1108- | A | SERVICED BY L=2000 OD=8 | ||
| 6 | I8-98117 117-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 1108- | A | |||
| 90 | I0-91180 108-0 | NUT; TUBE CLIP | 1 | 1108- | A | M8 FLANGE | ||
| 305 | I8-98120 049-0 | UNION ASM; NYLON TUBE | 1 | 1108- | A | EXC. PTO CONTROL<SV6> | ||
| 21 | I8-98189 194-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 1108- | A | L=1713 IDN | ||
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | 1 | 1108- | A | SERVICED BY L=2000 ID=10 | ||
| 1 | I8-97607 730-0 | HOSE; FLEX,AIR TANK | 1 | 1108- | A | |||
| 13 | I0-91510 812-0 | WASHER; LK,UNION | 1 | 1108- | A | ID=12.2 | ||
| 12 | I0-91111 512-0 | NUT; UNION | 1 | 1108- | A | EXC. PTO CONTROL<SV6> (B) M12 | ||
| 89 | I0-28650 820-0 | BOLT; TUBE CLIP | 1 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 2 | 1108- | A | M8 FLANGE | ||
| 428 | I0-91180 108-0 | NUT; BRKT | 1 | 1108- | A | M8 FLANGE | ||
| 434 | I1-09707 183-0 | CLIP | 3 | 1310- | A | ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> L=350 | ||
| 35 | I0-91180 108-0 | NUT; BRKT | 2 | 1108- | A | EXC. PTO CONTROL<SV6> M8 FLANGE | ||
| 12 | I9-09840 280-0 | NUT; UNION | 1 | 1108- | A | (A) M12 |
