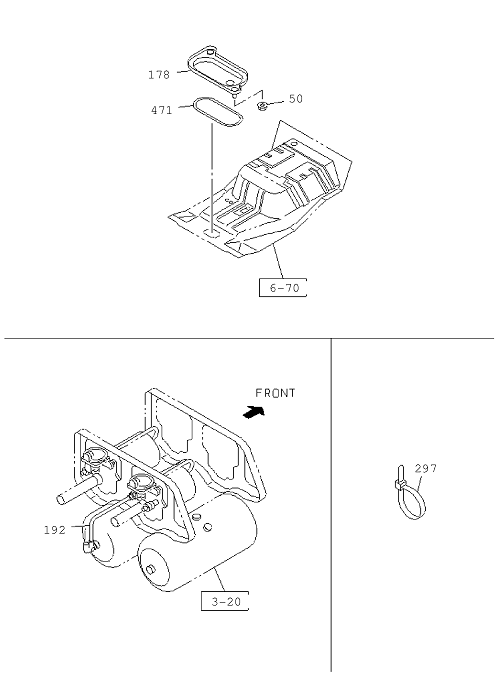

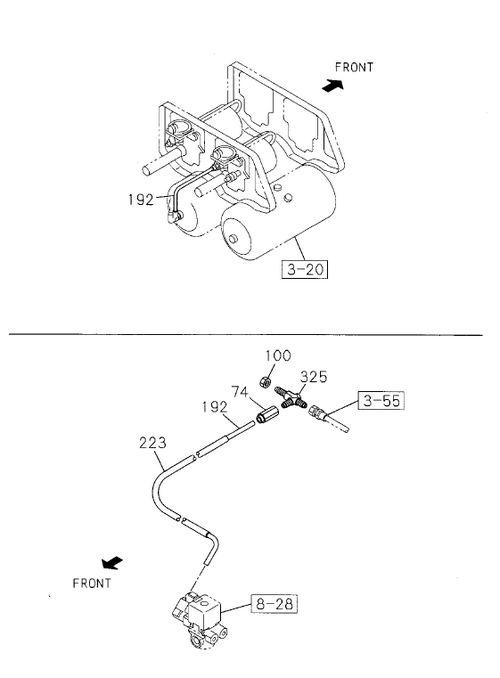

3-77 | BRAKE PIPING; AIR,REAR
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 1108- | A | |||
| 192 | I1-87411 011-0 | TUBE; NYLON | 1 | 1108- | A | SERVICED BY L=2000 OD=12 | ||
| 297 | I1-09707 183-0 | CLIP; BAND | 3 | 1108- | A | L=350 | ||
| 178 | I8-98017 052-1 | BRACKET; UNION | 1 | 1108- | A | |||
| 50 | I0-91180 108-0 | NUT; UNION BRKT | 2 | 1108- | A | M8 FLANGE | ||
| 178 | I8-98017 052-1 | A | BRACKET; UNION | 1 | 1108- | A |
