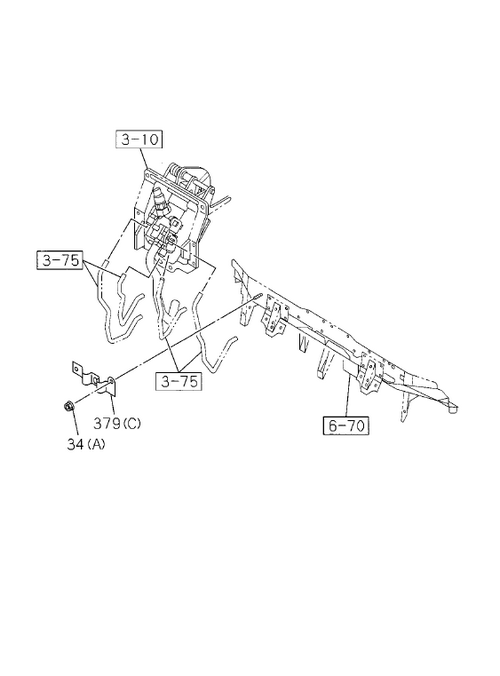

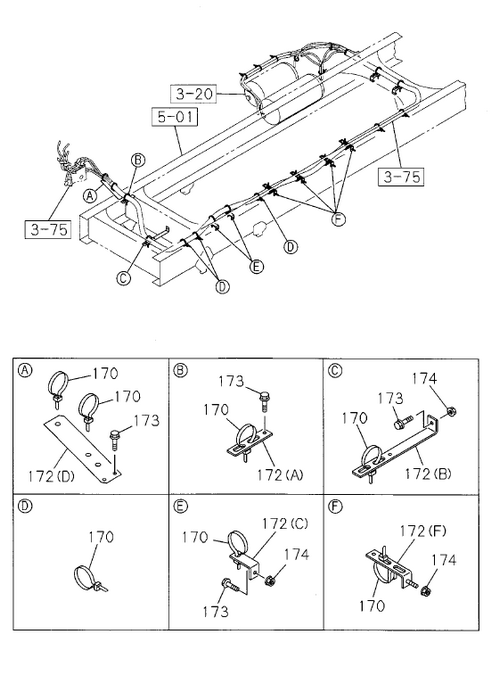

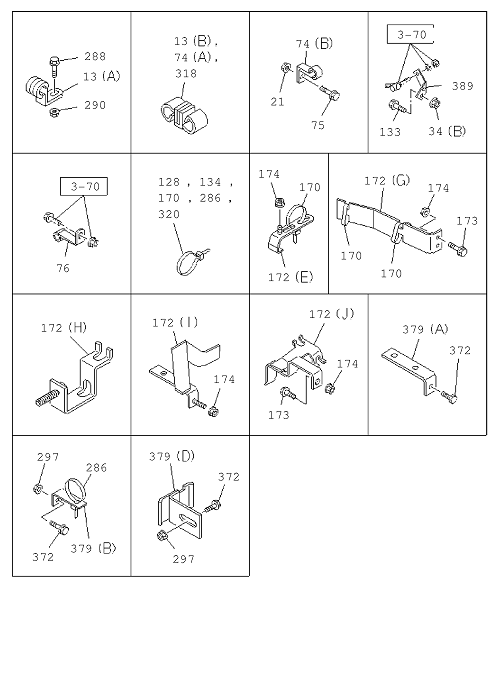

3-78 | FIXING PARTS; AIR PIPING
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 172 | I8-98184 177-A | BRACKET; TUBE CLIP | 1 | 1108- | A | (G) IDN | ||
| 172 | I8-98184 177-A | BRACKET; TUBE CLIP | 1 | 1108- | A | (G) IDN | ||
| 74 | I1-09700 838-0 | CLIP; NYLON TUBE | 1 | 1108- | A | (B) ID=13 H=50 L=25 | ||
| 74 | I1-09700 838-0 | CLIP; NYLON TUBE | 1 | 1108- | A | (B) ID=13 H=50 L=25 | ||
| 34 | I0-91180 108-0 | NUT; BRKT | 2 | 1108- | A | (B) M8 FLANGE | ||
| 173 | I0-28650 825-0 | BOLT; CLIP BRKT | 2 | 1108- | A | M8X2 5 FLANGE IDN | ||
| 286 | I1-09707 183-0 | CLIP; NYLON TUBE | 4 | 1108- | A | WHEEL BASE 7100MM(71W) L=350 | ||
| 172 | I8-98169 222-0 | BRACKET; TUBE CLIP | 1 | 1108- | A | (H) | ||
| 76 | I1-09700 838-0 | CLIP; NYLON TUBE | 1 | 1108- | A | ID=13 H=50 L=25 | ||
| 173 | I0-28650 820-0 | BOLT; CLIP BRKT | 2 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 13 | I1-09700 604-0 | CLIP; AIR PIPE | 1 | 1108- | A | (A) ID=8 H=20 L=20 | ||
| 372 | I0-28650 825-0 | BOLT; CLIP BRKT | 1 | 1108- | A | WHEEL BASE 550 0MM(55W) M8X2 5 FLANGE IDN | ||
| 172 | I8-98177 873-0 | BRACKET; TUBE CLIP | 4 | 1310- | A | 6HK1-TCS ENG(80L) | ||
| 172 | I1-47477 514-3 | BRACKET; TUBE CLIP | 1 | 1108- | A | (A) | ||
| 170 | I1-09707 183-0 | CLIP; NYLON TUBE | 27 | 1108- | A | L=350 | ||
| 320 | I5-09707 030-1 | CLIP; BAND,FLEX FIX | 1 | 1108- | A | L=250 IDN | ||
| 372 | I0-28650 830-0 | BOLT; CLIP BRKT | 3 | 1108- | A | WHEEL BASE 7100MM(71W) M8X3 0 FLANGE | ||
| 372 | I0-28650 830-0 | BOLT; CLIP BRKT | 2 | 1108- | A | WHEEL BASE 550 0MM(55W) M8X3 0 FLANGE | ||
| 172 | I8-98047 730-0 | BRACKET; TUBE CLIP | 2 | 1108- | A | (E) | ||
| 297 | I0-91180 108-0 | NUT; BRKT | 3 | 1108- | A | M8 FLANGE | ||
| 134 | I1-09707 183-0 | CLIP; AIR PIPE | 1 | 1108- | A | L=350 | ||
| 13 | I1-09709 276-1 | CLIP; AIR PIPE | 1 | 1108- | A | (B) ID=6.35 & 15 | ||
| 76 | I1-09700 838-0 | CLIP; NYLON TUBE | 1 | 1108- | A | ID=13 H=50 L=25 | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 1108- | A | (C) | ||
| 133 | I0-28650 820-0 | BOLT; BRKT | 2 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 128 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 1108- | A | L=350 | ||
| 174 | I0-91180 108-0 | NUT; CLIP BRKT | 11 | 1108- | A | M8 FLANGE | ||
| 379 | I1-47477 716-1 | BRACKET; NYLON TUBE | 2 | 1108- | A | WHEEL BASE 7100MM(71W) (B) L=45 B=2 0 | ||
| 172 | I8-98182 760-0 | BRACKET; TUBE CLIP | 1 | 1108- | A | (J) | ||
| 21 | I0-91180 108-0 | NUT; CLIP | 1 | 1108- | A | M8 FLANGE | ||
| 34 | I0-91180 106-0 | NUT; BRKT | 2 | 1108- | A | (A) M6 FLANGE | ||
| 172 | I8-98182 331-0 | BRACKET; TUBE CLIP | 1 | 1108- | A | (I) | ||
| 172 | I8-98177 873-0 | BRACKET; TUBE CLIP | 1 | 1108- | A | (F) | ||
| 379 | I1-47477 716-1 | BRACKET; NYLON TUBE | 1 | 1108- | A | WHEEL BASE 550 0MM(55W) (B) L=45 B=2 0 | ||
| 172 | I1-47477 646-3 | BRACKET; TUBE CLIP | 1 | 1108- | A | (B) L=225 | ||
| 389 | I1-47471 363-0 | BRACKET; UNION | 1 | 1108- | A | |||
| 172 | I1-47477 716-1 | BRACKET; TUBE CLIP | 2 | 1108- | A | (C) L=45 B=2 0 | ||
| 75 | I0-28650 820-0 | BOLT; CLIP | 1 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 379 | I1-47477 755-1 | BRACKET; NYLON TUBE | 1 | 1108- | A | (A) L=90 | ||
| 172 | I8-98031 420-2 | BRACKET; TUBE CLIP | 1 | 1108- | A | (D) | ||
| 288 | I0-28650 820-0 | BOLT; CLIP,AIR PIPE | 1 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 173 | I0-28650 830-0 | BOLT; CLIP BRKT | 5 | 1108- | A | M8X3 0 FLANGE | ||
| 286 | I1-09707 183-0 | CLIP; NYLON TUBE | 3 | 1108- | A | WHEEL BASE 550 0MM(55W) L=350 | ||
| 290 | I0-91180 108-0 | NUT; CLIP,AIR PIPE | 1 | 1108- | A | M8 FLANGE | ||
| 379 | I8-98119 184-1 | BRACKET; NYLON TUBE | 1 | 1108- | A | WHEEL BASE 550 0MM(55W) (D) | ||
| 74 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 1108- | A | (A) ID=12 & 15 | ||
| 318 | I1-09709 276-1 | CLIP; AIR PIPE | 5 | 1108- | A | ID=6.35 & 15 |
