PORTAL SPAREPART

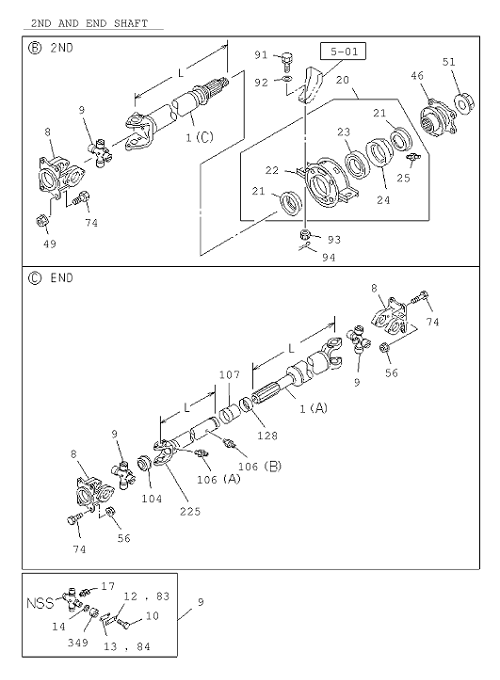

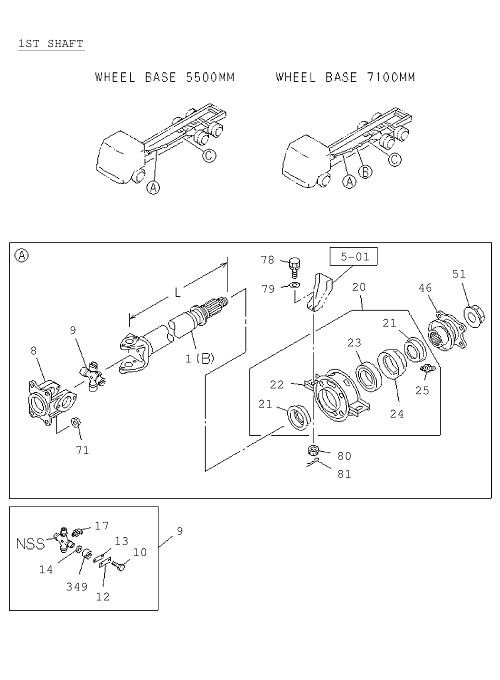

4-01 | PROPELLER SHAFT

Partial Engine Partial Engine

GIGA

GIGA FVM

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
20 I1-37510 093-3 BEARING ASM; CTR,PROP SHAFT 1 1108- B
74 I1-09000 383-0 BOLT; YOKE,TRANS 4 1108- AB
106 I1-09380 006-0 NIPPLE; GREASE,YOKE,PROP SHAFT 1 1108- AB (B) MT6 STRAIGHT IDN
46 I1-37245 283-1 FLANGE; SPLINED,PROP SHAFT,1ST 1 1108- AB
46 I1-37245 283-1 FLANGE; SPLINED,PROP SHAFT,1ST 1 1108- B
84 I1-37355 020-0 COVER; UJT,PROP SHAFT 4 1310- B P90 PROP SHAFT<C5T>
1 I1-37152 558-0 SHAFT; PROP 1 1108- A
20 I1-37510 093-3 BEARING ASM; CTR,PROP SHAFT 1 1108- AB
10 I0-20951 020-0 BOLT; UJT 24 1108- B
84 I1-37355 022-0 COVER; UJT,PROP SHAFT 4 1108- AB T=6 IDN
93 I8-98049 689-0 NUT; HOLDER SET,CTR BRG 2 1205- B M16 SLOTTED
93 I8-98049 689-0 NUT; HOLDER SET,CTR BRG 2 1108- B M16 SLOTTED
9 I1-37300 127-0 C JOURNAL ASM; PROP SHAFT AR 1108- AB
8 I1-37211 066-1 YOKE; FLALNGE,PROP SHAFT 2 1310- B P90 PROP SHAFT<C5T>
106 I0-90301 410-0 NIPPLE; GREASE,YOKE,PROP SHAFT 1 1108- AB (A) PT1/8 STRAIGHT
349 I1-09811 394-0 BEARING; FRT UJT,PROP SHAFT 4 1108- AB
94 I0-81124 025-0 PIN; SPLIT,HOLDER SET CTR BRG 2 1108- B OD=3.7 L=25
8 I1-37211 072-1 YOKE; FLANGE,PROP SHAFT 2 1108- A
20 I1-37510 094-3 BEARING ASM; CTR,PROP SHAFT 1 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
128 I1-37247 019-0 SEAL; SLEEVE 1 1310- B P90 PROP SHAFT<C5T>
21 I1-09625 126-0 SEAL; OIL,CENTER BRG 2 1108- B
349 I1-09811 394-0 BEARING; FRT UJT,PROP SHAFT 8 1108- AB
9 I1-37300 127-0 JOURNAL ASM; PROP SHAFT AR 1108- AB
17 I0-90301 610-0 NIPPLE; GREASE,PROP SHAFT 1 1108- B
107 I1-37249 137-1 COVER; RET,SLEEVE 1 1108- AB
80 I8-98049 689-0 NUT; HOLDER SET,CENTER BRG,1ST PROP 2 1205- AB M16 SLOTTED
17 I0-90301 510-0 NIPPLE; GREASE,PROP SHAFT 2 1108- AB
12 I1-37356 010-0 PLATE; LK,FRT UJT,PROP SHAFT 4 1108- A
12 I1-37356 008-0 PLATE; LK,FRT UJT,PROP SHAFT 4 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
24 I1-37529 039-0 RETAINER; CENTER BRG,1ST 1 1108- B
9 I1-37300 128-0 JOURNAL ASM; PROP SHAFT AR 1108- B
79 I1-09503 241-1 WASHER; PL,HOLDER SET,CENTER BRG 2 1108- AB
225 I1-37241 109-1 YOKE; SLEEVE,PROP SHAFT 1 1108- AB L=332
23 I9-00090 292-0 BEARING; CENTER,PROP SHAFT 1 1108- B
12 I1-37356 010-0 PLATE; LK,FRT UJT,PROP SHAFT 8 1108- B
1 I8-98239 158-0 SHAFT; PROP 1 1310- B P90 PROP SHAFT<C5T>
1 I8-98239 157-0 SHAFT; PROP 1 1310- B P90 PROP SHAFT<C5T>
22 I1-37516 048-2 RUBBER; CUSHION,CENTER BRG,1ST 1 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
14 I1-37249 131-0 COVER; DUST,SPIDER 4 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
128 I1-37247 021-0 SEAL; SLEEVE 1 1108- AB IDN
12 I1-37356 010-0 PLATE; LK,FRT UJT,PROP SHAFT 4 1108- AB
21 I1-09625 127-0 SEAL; OIL,CENTER BRG 2 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T> D=12 0
8 I1-37211 066-1 YOKE; FLALNGE,PROP SHAFT 1 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
74 I1-09000 383-0 BOLT; YOKE,TRANS 4 1108- AB
78 I1-09042 030-0 BOLT; HOLDER SET,CENTER BRG,1ST PROP 2 1108- AB
46 I1-37245 271-1 FLANGE; SPLINED,PROP SHAFT,1ST 1 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
104 I1-09600 067-0 PLUG; SLEEVE YOKE 1 1108- AB
8 I1-37211 072-1 YOKE; FLANGE,PROP SHAFT 1 1108- AB
22 I1-37516 047-2 RUBBER; CUSHION,CENTER BRG,1ST 1 1108- AB
14 I9-37352 023-0 COVER; DUST,SPIDER 12 1108- B
9 I1-37300 127-0 JOURNAL ASM; PROP SHAFT AR 1108- AB
1 I1-37123 818-0 SHAFT; PROP 1 1108- B
24 I1-37529 039-0 RETAINER; CENTER BRG,1ST 1 1108- AB
51 I1-09449 051-0 NUT; FLANGE,SPLINED 1 1108- B
14 I1-37249 131-0 COVER; DUST,SPIDER 8 1310- B P90 PROP SHAFT<C5T>
49 I1-09449 065-0 NUT; YOKE 4 1108- B
13 I1-37355 022-0 COVER; FRT UJT,PROP SHAFT 4 1108- A
14 I9-37352 023-0 COVER; DUST,SPIDER 8 1108- A
225 I1-37241 103-1 YOKE; SLEEVE,PROP SHAFT 1 1310- B P90 PROP SHAFT<C5T> L=332
14 I9-37352 023-0 COVER; DUST,SPIDER 4 1108- AB
24 I1-37529 041-0 RETAINER, CENTER BRG,1ST 1 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
17 I0-90301 510-0 NIPPLE; GREASE,PROP SHAFT 1 1108- AB
8 I1-37211 072-1 YOKE; FLANGE,PROP SHAFT 3 1108- B
13 I1-37355 020-0 COVER; FRT UJT,PROP SHAFT 4 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
81 I0-81124 025-0 PIN; SPLIT,HOLDER SET,CENTER BRG 2 1108- AB
56 I1-09449 065-0 NUT; YOKE 4 1108- AB
349 I1-09811 394-0 BEARING; FRT UJT,PROP SHAFT 4 1108- B
51 I1-09440 046-0 NUT; FLANGE,SPLINED 1 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T> M39 FLANGE
9 I1-37300 128-0 C JOURNAL ASM; PROP SHAFT AR 1108- B
1 I8-98189 372-0 SHAFT; PROP 1 1108- B
51 I1-09449 051-0 NUT; FLANGE,SPLINED 1 1108- AB
25 I1-09380 006-0 NIPPLE; GREASE,CENTER BRG 1 1108- B
23 I9-00090 292-0 BEARING; CENTER,PROP SHAFT 1 1108- AB
10 I0-20951 020-0 BOLT; UJT 8 1108- AB
56 I1-09449 065-0 NUT; YOKE 4 1108- AB
91 I1-09042 030-0 BOLT; HOLDER SET,CTR BRG 2 1108- B M16X45
22 I1-37516 047-2 RUBBER; CUSHION,CENTER BRG,1ST 1 1108- B
13 I1-37355 022-0 COVER; FRT UJT,PROP SHAFT 4 1108- AB
13 I1-37355 022-0 COVER; FRT UJT,PROP SHAFT 8 1108- B
80 I8-98049 689-0 NUT; HOLDER SET,CENTER BRG,1ST PROP 2 1108- AB
10 I0-20951 020-0 BOLT; UJT 16 1108- A
92 I1-09503 241-1 WASHER; LK,HOLDER SET,CTR BRG 2 1108- B ID=17
83 I1-37356 010-0 PLATE; LK,UJT,PROP SHAFT 4 1108- AB IDN
1 I8-98185 867-0 SHAFT; PROP 1 1108- B
71 I1-09449 065-0 NUT; YOKE 4 1108- AB
25 I1-09380 006-0 NIPPLE; GREASE,CENTER BRG 1 1108- AB
21 I1-09625 126-0 SEAL; OIL,CENTER BRG 2 1108- AB
1 I1-37124 114-0 SHAFT; PROP 1 1108- A
83 I1-37356 008-0 PLATE; LK,UJT,PROP SHAFT 4 1310- B P90 PROP SHAFT<C5T>
23 I9-00090 256-0 BEARING; CENTER,PROP SHAFT 1 1310- B B P90 PROP SHAFT<C5T> P90 PROP SHAFT<C5T>
74 I1-09000 383-0 BOLT; YOKE,TRANS 4 1108- B
9 I1-37300 127-0 C JOURNAL ASM; PROP SHAFT AR 1108- AB
