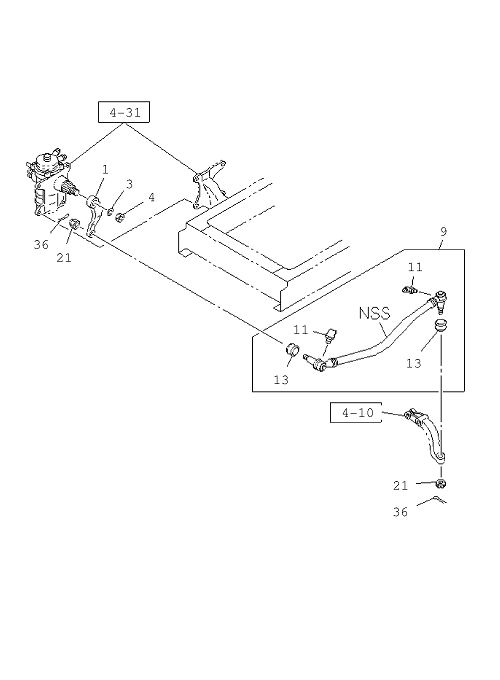

4-33 | STEERING LINKAGE
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I8-98181 399-0 | LINK; DRAG | 1 | 1108- | A | |||
| 36 | I0-81125 035-0 | PIN; SPLIT,DRAG LINK | 2 | 1108- | A | OD=4.6 L=35 | ||
| 3 | I1-09500 056-0 | WASHER; LK,PITMAN ARM | 1 | 1108- | A | |||
| 1 | I1-44341 423-1 | ARM; PITMAN,STRG | 1 | 1108- | A | |||
| 21 | I1-09442 032-0 | NUT; LK,JOINT BALL | 2 | 1108- | A | M2 4 | ||
| 11 | I8-98160 122-0 | NIPPLE; GREASE,DRAG LINK | 2 | 1108- | A | |||
| 13 | I1-43159 131-0 | BOOT; DRAG LINK | 2 | 1108- | A | |||
| 1 | I1-44341 423-1 | ARM; PITMAN,STRG | 1 | 1108- | A | |||
| 4 | I1-09440 098-0 | NUT; PITMAN ARM | 1 | 1108- | A | M36 FLANGE |
