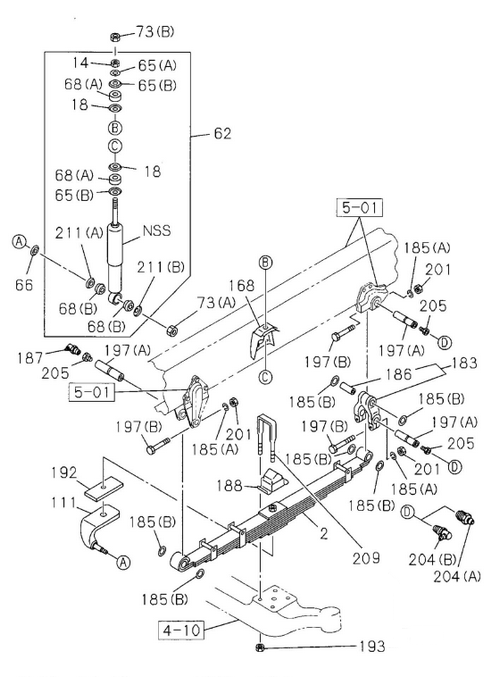

| 185 |
I8-98179 315-0 |
|
WASHER; LK,PIN |
12 |
1108- |
|
A |
(A) ID=12.2 |
| 111 |
I8-98121 193-A |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
1108- |
R |
A |
|
| 208 |
I6-87870 493-0 |
|
U-BOLT SET; FRT SPRING |
4 |
1108- |
|
A |
L=23 0 |
| 14 |
I0-91111 514-0 |
C |
NUT; S/ABS,UPR |
2 |
1108- |
|
A |
M14 |
| 62 |
I1-51630 512-A |
C |
ABSORBER ASM; SHOCK,FRT |
2 |
1108- |
|
A |
|
| 201 |
I0-91110 512-0 |
C |
NUT; PIN LK |
12 |
1108- |
|
A |
M12 |
| 185 |
I1-51169 018-0 |
|
WASHER; LK,PIN |
12 |
1108- |
|
A |
(B) ID=32.4 |
| 183 |
I1-51162 029-5 |
A |
SHACKLE; FRT SUSP |
2 |
1108- |
|
A |
|
| 68 |
I9-51631 026-0 |
|
BUSHING; S/ABS |
4 |
1108- |
|
A |
(B) |
| 197 |
I1-51161 043-1 |
|
PIN; FRT SPR,FRT |
6 |
1108- |
|
A |
(A) |
| 211 |
I9-51631 027-0 |
|
WASHER; BRKT,SHOCK |
2 |
1108- |
|
A |
(A) ID=2 7 |
| 2 |
I7-65020 321-A |
C |
SPRING ASM; LEAF, FRT |
2 |
1108-1207 |
|
A |
IDN |
| 197 |
I0-10856 280-0 |
|
PIN; FRT SPR,FRT |
12 |
1108- |
|
A |
(B) M12X80 |
| 18 |
I1-51631 067-0 |
|
WASHER; CENTERING,S/ABS |
4 |
1108- |
|
A |
ID=2 4 |
| 66 |
I0-91610 520-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
1108- |
|
A |
ID=21 |
| 65 |
I1-51631 068-0 |
|
WASHER; S/ABS |
4 |
1108- |
|
A |
(B) ID=16.5 |
| 183 |
I1-51162 029-5 |
|
SHACKLE; FRT SUSP |
2 |
1108- |
|
A |
|
| 209 |
I1-51171 043-A |
|
U-BOLT SET; FRT SPRING |
4 |
1111- |
|
A |
L=230 |
| 111 |
I8-98121 193-A |
A |
SUPPORTER; S/ABS,FRT SUSP |
1 |
1108- |
R |
A |
|
| 2 |
I7-65020 321-A |
|
SPRING ASM; LEAF, FRT |
2 |
1208- |
|
A |
IDN |
| 204 |
I0-90301 410-0 |
|
NIPPLE; GREASE,RR |
2 |
1108- |
|
A |
(A) PT1/8 STRAIGHT |
| 65 |
I1-09503 266-0 |
|
WASHER; S/ABS |
2 |
1108- |
|
A |
(A) ID=16.5 |
| 211 |
I9-51631 028-0 |
|
WASHER; BRKT,SHOCK |
2 |
1108- |
|
A |
(B) ID=21 |
| 197 |
I1-51161 043-1 |
C |
PIN; FRT SPR,FRT |
6 |
1108- |
|
A |
(A) |
| 186 |
I1-51351 009-A |
|
BUSHING; SHACKLE |
2 |
1108- |
|
A |
OD=3 8 |
| 68 |
I1-51631 013-0 |
|
BUSHING; S/ABS |
4 |
1108- |
|
A |
(A) ID=16 T=25 |
| 187 |
I0-90301 610-0 |
|
NIPPLE; GREASE,FRT |
2 |
1108- |
|
A |
PT1/8 ELBOW |
| 168 |
I1-51681 616-0 |
|
BRACKET; S/ABS,FRT SUSP |
2 |
1108- |
|
A |
|
| 73 |
I0-91110 520-0 |
|
NUT; BRKT,SHOCK |
2 |
1108- |
|
A |
(A) M20 |
| 188 |
I1-51172 125-A |
A |
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
1108- |
|
A |
|
| 111 |
I8-98121 195-A |
A |
SUPPORTER; S/ABS,FRT SUSP |
1 |
1108- |
L |
A |
|
| 14 |
I0-91111 514-0 |
|
NUT; S/ABS,UPR |
2 |
1108- |
|
A |
M14 |
| 201 |
I7-05012 010-A |
|
NUT; PIN LK |
12 |
1108- |
|
A |
M12 |
| 111 |
I8-98121 195-A |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
1108- |
L |
A |
|
| 204 |
I0-90301 510-0 |
|
NIPPLE; GREASE,RR |
2 |
1108- |
|
A |
(B) PT1/8 ELBOW 67.5fi |
| 186 |
I1-51351 009-A |
C |
BUSHING; SHACKLE |
2 |
1108- |
|
A |
OD=3 8 |
| 192 |
I1-51177 284-A |
A |
PIECE; DIST |
AR |
1108- |
|
A |
80X144 ID=17.5 |
| 208 |
I1-87870 493-0 |
C |
U-BOLT SET; FRT SPRING |
4 |
1108- |
|
A |
L=23 0 |
| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
6 |
1108- |
|
A |
|
| 193 |
I8-98179 318-0 |
|
NUT; U BOLT |
8 |
1108- |
|
A |
|
| 208 |
I1-87870 493-0 |
|
U-BOLT SET; FRT SPRING |
4 |
1108- |
|
A |
L=23 0 |
| 62 |
I1-51630 512-A |
|
ABSORBER ASM; SHOCK,FRT |
2 |
1108- |
|
A |
|
| 2 |
I7-65020 321-A |
C |
SPRING ASM; LEAF, FRT |
2 |
1108- |
|
A |
IDN |
| 188 |
I1-51172 125-A |
|
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
1108- |
|
A |
|
| 197 |
I6-51161 043-0 |
|
PIN; FRT SPR,FRT |
6 |
1108- |
|
A |
(A) |
| 68 |
I1-51631 013-0 |
C |
BUSHING; S/ABS |
4 |
1108- |
|
A |
(A) ID=16 T=25 |
| 73 |
I0-91111 514-0 |
|
NUT; BRKT,SHOCK |
2 |
1108- |
|
A |
(B) M14 |
| 192 |
I1-51177 284-A |
|
PIECE; DIST |
AR |
1108- |
|
A |
80X144 ID=17.5 |
