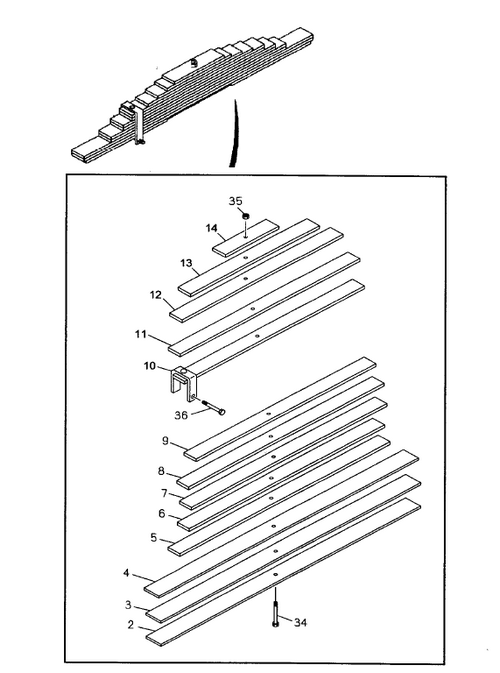

4-65 | REAR LEAF SPRING
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 14 | I7-66000 339-A | MAIN SPRING NO.13 | 2 | 1108- | ||||
| 10 | I7-66000 335-A | MAIN SPRING NO.9 | 2 | 1108- | ||||
| 12 | I7-66000 337-A | MAIN SPRING NO.11 | 2 | 1108- | ||||
| 4 | I7-66000 329-A | MAIN SPRING NO.3 | 2 | 1108- | ||||
| 2 | I7-66000 327-A | MAIN SPRING NO.1 | 2 | 1108- | ||||
| 7 | I7-66000 332-A | MAIN SPRING NO.6 | 2 | 1108- | ||||
| 3 | I7-66000 328-A | MAIN SPRING NO.2 | 2 | 1108- | ||||
| 8 | I7-66000 333-A | MAIN SPRING NO.7 | 2 | 1108- | ||||
| 13 | I7-66000 338-A | MAIN SPRING NO.12 | 2 | 1108- | ||||
| 5 | I7-66000 330-A | MAIN SPRING NO.4 | 2 | 1108- | ||||
| 34 | I7-04016 250-A | CENTER BOLT | 2 | 1108- | ||||
| 6 | I7-66000 331-A | MAIN SPRING NO.5 | 2 | 1108- | ||||
| 11 | I7-66000 336-A | MAIN SPRING NO.10 | 2 | 1108- | ||||
| 9 | I7-66000 334-A | MAIN SPRING NO.8 | 2 | 1108- |
