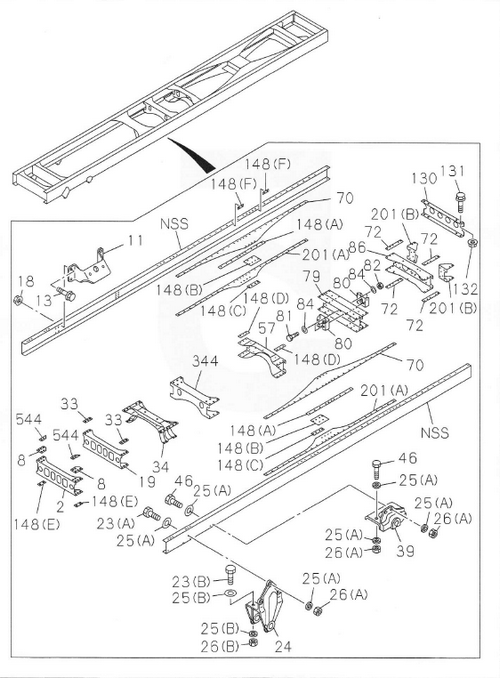

5-01 | FRAME AND OTHER PARTS
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I0-20951 660-0 | BOLT; BRKT,SPR | 4 | 1108- | AB | (B) M16X60 | ||
| 201 | I8-97695 036-A | GUSSET; C/MBR | 1 | 1305- | AB | (A) | ||
| 201 | I8-97640 016-0 | GUSSET; C/MBR | 1 | 1108- | A | (A) | ||
| 148 | I8-97612 115-0 | SPACER; C/MBR | 2 | 1108- | AB | (C) | ||
| 46 | I0-20951 450-0 | BOLT; BRKT FIX | 8 | 1108- | AB | M14X50 | ||
| 65 | I8-97614 129-0 | BRACKET; CENTER BRG | 2 | 1310- | B | 6HK1-TCS ENG(8 0L) | ||
| 86 | I8-97695 006-A | MEMBER; CROSS,RR SUSP RR | 1 | 1108- | AB | |||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 1108- | AB | |||
| 79 | I8-97695 005-A | MEMBER; CROSS,TRUNNION ASM | 1 | 1108- | AB | |||
| 148 | I8-97612 109-A | SPACER; C/MBR | 2 | 1108- | AB | (D) | ||
| 39 | I8-98043 649-0 | BRACKET; FRT SPR,RR | 1 | 1108- | AB | |||
| 13 | I0-28661 240-0 | BOLT; BRKT,ENG MTG | 8 | 1108- | AB | M12X40 FLANGE | ||
| 34 | I8-97610 854-2 | MEMBER; CROSS,3RD | 1 | 1108- | AB | |||
| 25 | I8-98010 627-1 | WASHER; PL,BRKT | 28 | 1108- | AB | (A) ID=15 | ||
| 345 | I8-97695 004-A | MEMBER; CROSS,5TH | 1 | 1108- | B | |||
| 26 | I7-05014 012-A | NUT; BRKT,SPR | 14 | 1108- | AB | (A) M14 | ||
| 82 | I7-05014 012-A | NUT; BRKT | 2 | 1108- | AB | M14 | ||
| 39 | I8-98043 648-0 | BRACKET; FRT SPR,RR | 1 | 1108- | AB | |||
| 8 | I8-97611 027-0 | GUSSET; 1ST C/MBR | 2 | 1108- | AB | |||
| 19 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 1108- | AB | |||
| 86 | I8-97695 006-A | MEMBER; CROSS,RR SUSP RR | 1 | 1108- | AB | |||
| 24 | I8-98018 841-0 | BRACKET; FRT SPR,FRT | 1 | 1108- | AB | |||
| 131 | I0-50541 230-0 | BOLT; END C/MBR | 4 | 1108- | AB | M12X3 0 W/LK WASHER | ||
| 201 | I8-97695 032-A | GUSSET; C/MBR | 1 | 1305- | AB | (A) | ||
| 25 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 1108- | AB | (B) ID=16.2 | ||
| 57 | I8-97695 021-A | MEMBER; CROSS,RR SUSP FRT | 1 | 1108- | AB | |||
| 81 | I0-10956 450-0 | BOLT; BRKT | 2 | 1108- | AB | M14X50 | ||
| 201 | I8-97640 348-0 | GUSSET; C/MBR | 1 | 1108- | A | (A) | ||
| 65 | I8-97614 150-0 | BRACKET; CENTER BRG | 2 | 1108- | B | (A) | ||
| 1 | I8-97520 545-A | FRAME; ASM | 1 | 1108- | A | FVM34-Q (5450) | ||
| 201 | I8-97695 035-A | GUSSET; C/MBR | 1 | 1305- | AB | (A) | ||
| 148 | I8-97612 113-0 | SPACER; C/MBR | 2 | 1108- | AB | (B) | ||
| 70 | I8-97695 027-A | GUSSET; TRUNNION,UPR | 2 | 1108- | AB | |||
| 80 | I1-53363 068-0 | BRACKET; C/MBR | 2 | 1108- | AB | |||
| 201 | I8-97640 017-0 | GUSSET; C/MBR | 1 | 1108- | B | (A) | ||
| 11 | I8-97619 550-0 | BRACKET; ENG MTG | 2 | 1108- | AB | |||
| 19 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 1108- | AB | |||
| 34 | I8-97695 016-A | MEMBER; CROSS,3RD | 1 | 1305- | AB | UPPER | ||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 1108- | AB | |||
| 65 | I8-97614 128-0 | BRACKET; CENTER BRG | 2 | 1108- | B | (B) | ||
| 24 | I8-98018 841-0 | BRACKET; FRT SPR,FRT | 1 | 1108- | AB | |||
| 201 | I8-97695 033-A | GUSSET; C/MBR | 1 | 1305- | AB | (A) | ||
| 201 | I8-97640 402-0 | GUSSET; C/MBR | 1 | 1108- | B | (A) | ||
| 65 | I8-97614 132-0 | BRACKET; CENTER BRG | 2 | 1310- | B | 6HK1-TCS ENG(8 0L) | ||
| 26 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 1108- | AB | (B) M16 | ||
| 33 | I8-97611 040-0 | SPACER; 2ND C/MBR,UPR | 2 | 1108- | AB | |||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 1108- | AB | |||
| 2 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 1108- | AB | |||
| 24 | I8-98018 840-0 | BRACKET; FRT SPR,FRT | 1 | 1108- | AB | |||
| 201 | I8-97695 028-A | GUSSET; C/MBR | 2 | 1305- | AB | (B) | ||
| 345 | I8-97695 004-A | MEMBER; CROSS,5TH | 1 | 1108- | B | |||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 1108- | AB | |||
| 65 | I8-97622 644-0 | BRACKET; CENTER BRG | 2 | 1108- | A | (A) | ||
| 34 | I8-97695 018-A | GUSSET;LH,3RD CROSSMEMBER | 1 | 1305- | AB | LOWER | ||
| 201 | I8-97695 028-A | GUSSET; C/MBR | 2 | 1108- | AB | (B) | ||
| 72 | I8-97612 110-0 | SPACER; TRUNNION | 4 | 1108- | AB | |||
| 132 | I0-91110 512-0 | NUT; END C/MBR | 4 | 1108- | AB | M12 | ||
| 544 | I8-97615 598-0 | PLATE; CAB FRT MTG | 2 | 1108- | AB | |||
| 132 | I7-05012 010-A | NUT; END C/MBR | 4 | 1108- | AB | M12 | ||
| 1 | I8-97520 712-A | FRAME; ASM | 1 | 1108- | B | FVM34-W (7120) | ||
| 2 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 1108- | AB | |||
| 34 | I8-97695 017-A | GUSSET;RH,3RD CROSSMEMBER | 1 | 1305- | AB | LOWER | ||
| 148 | I8-97612 112-0 | SPACER; C/MBR | 2 | 1108- | AB | (A) | ||
| 57 | I8-97695 021-A | MEMBER; CROSS,RR SUSP FRT | 1 | 1108- | AB | |||
| 148 | I8-97611 039-0 | SPACER; C/MBR | 2 | 1108- | AB | (E) | ||
| 26 | I7-05014 012-A | NUT; BRKT,SPR | 14 | 1108- | AB | (A) M14 | ||
| 148 | I8-97612 109-A | SPACER; C/MBR | 2 | 1108- | AB | (D) | ||
| 24 | I8-98018 840-0 | BRACKET; FRT SPR,FRT | 1 | 1108- | AB | |||
| 148 | I8-97612 111-0 | SPACER; C/MBR | 4 | 1108- | AB | (F) | ||
| 70 | I8-97695 027-A | GUSSET; TRUNNION,UPR | 2 | 1108- | AB | |||
| 84 | I8-98010 627-1 | WASHER; PL,BRKT | 4 | 1108- | AB | ID=15 | ||
| 18 | I0-91180 212-0 | NUT; BRKT,ENG MTG | 8 | 1108- | AB | M12 FLANGE | ||
| 23 | I0-20951 450-0 | BOLT; BRKT,SPR | 6 | 1108- | AB | (A) M14X50 | ||
| 79 | I8-97695 005-A | MEMBER; CROSS,TRUNNION ASM | 1 | 1108- | AB | |||
| 82 | I7-05014 012-A | NUT; BRKT | 2 | 1108- | AB | M14 |
