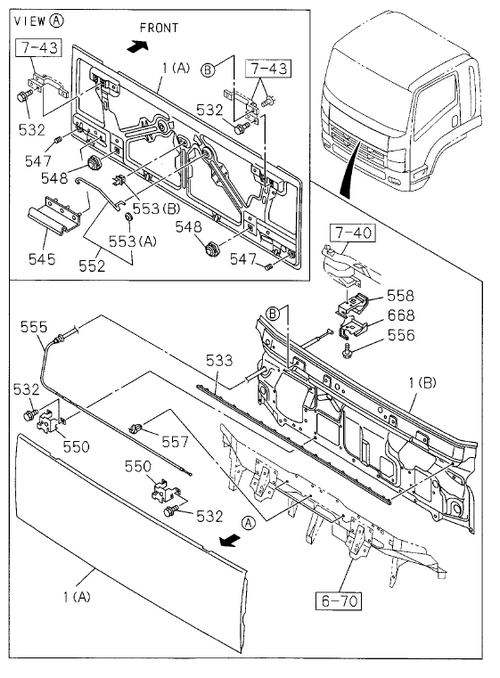

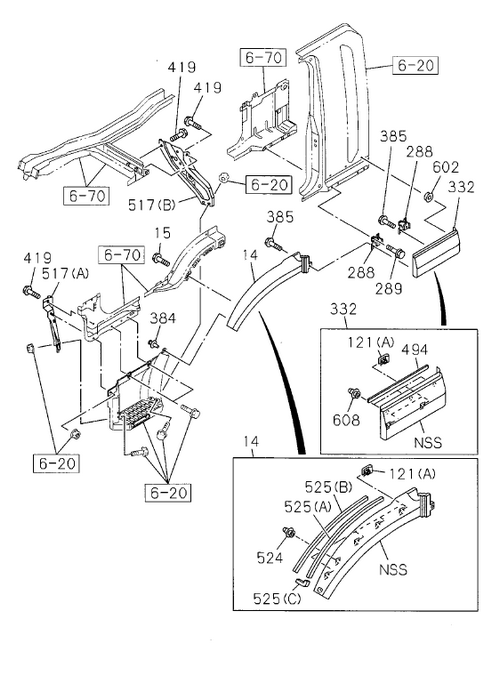

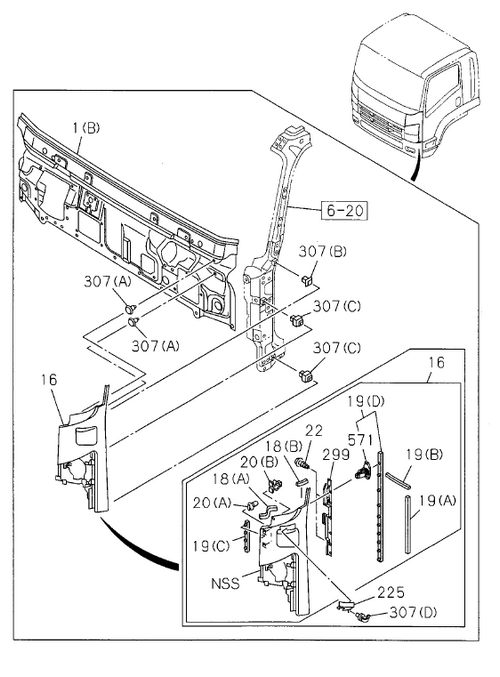

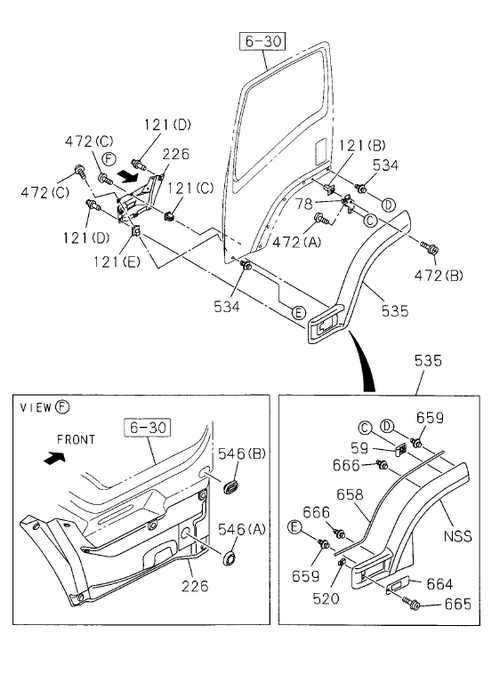

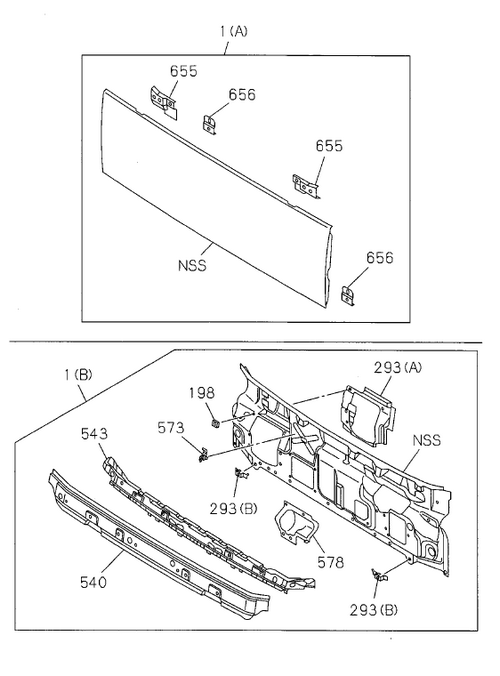

6-05 | FRONT PANEL
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 121 | I8-98073 421-0 | GROMMET; FENDER | 1 | 1108- | A | |||
| 578 | I8-97586 018-3 | COVER; WIPER MOTOR | 1 | 1108- | A | |||
| 16 | I8-97407 511-5 | PANEL; FRONT,SIDE | 1 | 1108- | A | |||
| 121 | I8-94279 989-0 | GROMMET; FENDER | 12 | 1108- | A | |||
| 546 | I8-94198 177-0 | PLUG; DUMMY HOLE | 2 | 1108- | A | (A) OD=38 | ||
| 553 | I8-97031 428-0 | CLIP; STAY | 1 | 1108- | A | (B) | ||
| 602 | I8-98241 984-0 | RETAINER; COVER | 6 | 1303- | A | ID=5.4 OD=6.8 | ||
| 658 | I8-98041 169-3 | FINISHER; BLISTER FENDER | 1 | 1108- | A | |||
| 546 | I8-94198 177-0 | PLUG; DUMMY HOLE | 2 | 1108- | A | (A) OD=38 | ||
| 332 | I8-98353 593-0 | FENDER; RR | 1 | 1108- | A | |||
| 548 | I8-98068 145-1 | STRIKER; FRT LID PANEL | 2 | 1108- | A | |||
| 288 | I8-98041 162-1 | BRACKET; FENDER SKIRT | 4 | 1108- | A | |||
| 299 | I8-98034 813-1 | COVER; FRT PANEL SIDE | 1 | 1108- | A | |||
| 520 | I8-94471 330-2 | NUT; FENDER | 2 | 1108- | A | |||
| 658 | I8-98041 168-3 | FINISHER; BLISTER FENDER | 1 | 1108- | A | |||
| 121 | I8-98073 420-0 | GROMMET; FENDER | 1 | 1108- | A | |||
| 293 | I8-98008 124-1 | BRACKET; PANEL | 1 | 1108- | A | |||
| 198 | I9-09114 086-0 | NUT; PANEL | 2 | 1108- | A | |||
| 19 | I8-98036 581-0 | SEAL; FRT SIDE PANEL | 1 | 1108- | A | |||
| 18 | I8-98043 511-1 | SEAL; A-POST UPR,FRT SIDE PANEL | 2 | 1108- | A | |||
| 555 | I8-98036 574-2 | CABLE; FRT LID | 1 | 1108- | A | |||
| 659 | I1-09983 174-0 | CLIP; FENDER | 8 | 1108- | A | D5.4X8 | ||
| 472 | I8-98059 505-0 | SCREW; FENDER TO CAB | 2 | 1108- | A | |||
| 608 | I1-09983 174-0 | CLIP | 6 | 1108- | A | D5.4X8 | ||
| 545 | I8-98123 265-A | SEAL; FRT LID | 1 | 1108- | A | |||
| 543 | I8-97585 990-4 | CLOSING; FRT MTG RAIL | 1 | 1108- | A | |||
| 533 | I8-98096 289-A | SEAL; FRT PANEL | 1 | 1108- | A | |||
| 655 | I8-98031 264-0 | PATCH; HINGE | 1 | 1108- | A | |||
| 535 | I8-98106 503-0 | FENDER; BLISTER | 1 | 1108- | A | |||
| 545 | I8-98123 265-A | SEAL; FRT LID | 1 | 1108- | A | |||
| 557 | I1-73907 618-0 | CLIP; CABLE | 3 | 1108- | A | ID=4.8 | ||
| 656 | I8-98031 265-0 | PATCH; STRIKER | 2 | 1108- | A | |||
| 517 | I8-98037 335-1 | SUPPORT; STEP PANEL | 1 | 1108- | A | |||
| 578 | I8-97586 018-3 | COVER; WIPER MOTOR | 1 | 1108- | A | |||
| 524 | I8-94279 974-1 | CLIP; FENDER COVER | 2 | 1108- | A | OD=7.9 BLACK | ||
| 121 | I8-94279 078-A | GROMMET; FENDER | 6 | 1108- | A | |||
| 664 | I8-98053 146-1 | BASE; DOOR,SIDE TURN | 1 | 1108- | A | |||
| 546 | I8-94430 184-1 | PLUG; DUMMY HOLE | 2 | 1108- | A | (B) | ||
| 552 | I8-97695 345-A | STAY; FRT LID | 1 | 1108- | A | |||
| 553 | I8-98071 399-0 | CLIP; STAY | 1 | 1108- | A | (A) | ||
| 664 | I8-98053 145-1 | BASE; DOOR,SIDE TURN | 1 | 1108- | A | |||
| 20 | I8-97410 740-3 | CLIP; FRT PANEL SIDE | 2 | 1108- | A | |||
| 19 | I8-98062 215-0 | SEAL; FRT SIDE PANEL | 2 | 1108- | A | |||
| 525 | I8-98061 761-0 | SEAL; FENDER | 2 | 1108- | A | (B) LOWER | ||
| 571 | I8-98027 457-0 | CLIP; SEAL | 20 | 1108- | A | NATURAL | ||
| 494 | I8-98072 723-0 | FINISHER; FENDER | 1 | 1108- | A | |||
| 78 | I8-98041 165-1 | BRACKET; FENDER | 1 | 1108- | A | |||
| 226 | I8-98037 715-2 | PROTECTOR; FRT | 1 | 1108- | A | |||
| 20 | I8-97410 739-1 | CLIP; FRT PANEL SIDE | 4 | 1108- | A | |||
| 22 | I0-74360 410-0 | SCREW; FRT PANEL SIDE | 6 | 1108- | A | |||
| 540 | I8-97585 966-2 | PANEL; FRONT,OUTER | 1 | 1108- | A | |||
| 293 | I8-97586 007-3 | BRACKET; PANEL | 1 | 1108- | A | |||
| 121 | I8-94463 268-A | GROMMET; FENDER | 4 | 1108- | A | |||
| 558 | I1-79338 007-1 | LEVER; FRT LID | 1 | 1108- | A | |||
| 59 | I8-94279 723-0 | GROMMET; SCREW | 2 | 1108- | A | |||
| 517 | I8-98037 336-1 | SUPPORT; STEP PANEL | 1 | 1108- | A | |||
| 121 | I8-94463 268-A | GROMMET; FENDER | 4 | 1108- | A | |||
| 525 | I8-98061 760-0 | SEAL; FENDER | 2 | 1108- | A | (A) UPPER | ||
| 534 | I8-98241 984-0 | FASTENER | 12 | 1303- | A | ID=5.4 OD=6.8 | ||
| 547 | I8-94324 556-2 | RUBBER; CUSHION | 2 | 1108- | A | OD=22 L=2 9 | ||
| 307 | I8-98021 300-1 | GROMMET; FRT PANEL | 4 | 1108- | A | |||
| 1 | I8-98030 234-5 | PANEL ASM; FRT | 1 | 1108- | A | |||
| 19 | I8-98041 358-2 | SEAL; FRT SIDE PANEL | 1 | 1108- | A | |||
| 289 | I0-28650 616-0 | BOLT; FENDER SKIRT BRKT | 8 | 1108- | A | |||
| 121 | I8-94279 723-0 | GROMMET; FENDER | 4 | 1108- | A | |||
| 520 | I8-94471 330-2 | NUT; FENDER | 2 | 1108- | A | |||
| 18 | I8-98038 608-0 | SEAL; A-POST UPR,FRT SIDE PANEL | 2 | 1108- | A | |||
| 608 | I1-09983 174-0 | CLIP | 6 | 1108- | A | D5.4X8 | ||
| 668 | I8-98076 339-1 | COVER; LEVER,FRT LID | 1 | 1108- | A | |||
| 550 | I8-98036 569-2 | LOCK ASM; FRT LID | 2 | 1108- | A | |||
| 225 | I8-98041 431-1 | COVER; SIDE,FRT | 1 | 1108- | A | |||
| 20 | I8-97410 740-3 | CLIP; FRT PANEL SIDE | 2 | 1108- | A | |||
| 385 | I8-98059 504-0 | SCREW; FENDER LWR | 4 | 1108- | A | |||
| 121 | I8-94279 078-A | GROMMET; FENDER | 6 | 1108- | A | |||
| 121 | I8-94279 723-0 | GROMMET; FENDER | 6 | 1108- | A | |||
| 573 | I8-98017 700-2 | BRACKET; SUPPORT | 1 | 1108- | A | |||
| 299 | I8-98034 814-1 | COVER; FRT PANEL SIDE | 1 | 1108- | A | |||
| 19 | I8-98041 359-2 | SEAL; FRT SIDE PANEL | 1 | 1108- | A | |||
| 15 | I8-98059 504-0 | BOLT; FENDER | 6 | 1108- | A | |||
| 226 | I8-98037 714-2 | PROTECTOR; FRT | 1 | 1108- | A | |||
| 419 | I0-28650 820-0 | BOLT; STEP | 8 | 1108- | A | |||
| 517 | I8-98037 351-2 | SUPPORT; STEP PANEL | 1 | 1108- | A | |||
| 534 | I8-98241 984-0 | FASTENER | 12 | 1108-1301 | A | ID=5.4 OD=6.8 | ||
| 14 | I8-98182 320-0 | FENDER; FRT | 1 | 1108- | A | |||
| 307 | I8-98034 363-1 | GROMMET; FRT PANEL | 4 | 1108- | A | |||
| 535 | I8-98106 502-0 | FENDER; BLISTER | 1 | 1108- | A | |||
| 384 | I1-09987 248-1 | CLIP; FENDER LWR | 2 | 1108- | A | |||
| 472 | I8-98090 737-0 | SCREW; FENDER TO CAB | 8 | 1108- | A | |||
| 534 | I8-98241 984-0 | FASTENER | 12 | 1108- | A | ID=5.4 OD=6.8 | ||
| 552 | I8-97695 345-A | STAY; FRT LID | 1 | 1108- | A | |||
| 494 | I8-98041 172-1 | FINISHER; FENDER | 1 | 1108- | A | |||
| 525 | I8-98061 762-0 | SEAL; FENDER | 2 | 1108- | A | (C) | ||
| 578 | I8-97586 018-3 | COVER; WIPER MOTOR | 1 | 1108- | A | |||
| 332 | I8-98353 594-0 | FENDER; RR | 1 | 1108- | A | |||
| 557 | I1-73907 618-0 | CLIP; CABLE | 3 | 1108- | A | ID=4.8 | ||
| 655 | I8-98031 263-0 | PATCH; HINGE | 1 | 1108- | A | |||
| 307 | I8-98028 743-0 | GROMMET; FRT PANEL | 1 | 1108- | A | |||
| 14 | I8-98182 321-0 | FENDER; FRT | 1 | 1108- | A | |||
| 517 | I8-98037 350-2 | SUPPORT; STEP PANEL | 1 | 1108- | A | |||
| 665 | I0-36210 620-0 | SCREW; FENDER | 2 | 1108- | A | M6X2 0 W/PL WASHER | ||
| 602 | I8-98241 984-0 | RETAINER; COVER | 6 | 1108- | A | ID=5.4 OD=6.8 | ||
| 78 | I8-98041 166-1 | BRACKET; FENDER | 1 | 1108- | A | |||
| 293 | I8-98008 126-1 | BRACKET; PANEL | 1 | 1108- | A | |||
| 307 | I8-97410 738-0 | GROMMET; FRT PANEL | 2 | 1108- | A | |||
| 16 | I8-97407 509-4 | PANEL; FRONT,SIDE | 1 | 1108- | A | |||
| 19 | I8-98035 268-0 | SEAL; FRT SIDE PANEL | 2 | 1108- | A | |||
| 666 | I8-98071 178-0 | CLIP; BLISTER FENDER | 4 | 1108- | A | |||
| 472 | I8-98093 669-0 | SCREW; FENDER TO CAB | 4 | 1108- | A | |||
| 533 | I8-98096 289-A | SEAL; FRT PANEL | 1 | 1108- | A | |||
| 659 | I1-09983 174-0 | CLIP; FENDER | 8 | 1108- | A | D5.4X8 | ||
| 19 | I8-98036 580-0 | SEAL; FRT SIDE PANEL | 1 | 1108- | A | |||
| 556 | I0-28650 616-0 | BOLT; CABLE | 1 | 1108- | A | M6X16 FLANGE | ||
| 602 | I8-98241 984-0 | RETAINER; COVER | 6 | 1303- | A | ID=5.4 OD=6.8 | ||
| 1 | I8-97585 960-9 | PANEL ASM; FRT | 1 | 1108- | A | |||
| 532 | I0-28650 820-0 | BOLT; FRT PANEL | 8 | 1108- | A | M8X2 0 FLANGE IDN |
