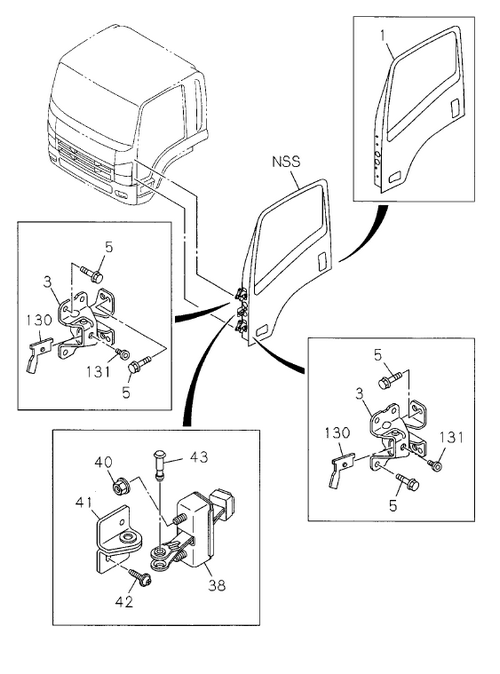

6-30 | FRONT DOOR AND HINGE
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 42 | I8-98032 159-2 | BOLT; BRKT | 4 | 1108- | A | M6X2 0 W/PL WASHER | ||
| 130 | I8-98038 299-1 | STOPPER; HINGE | 4 | 1108- | A | |||
| 1 | I8-98260 600-0 | DOOR ASM; FRT,WO/TRIM | 1 | 1108- | A | |||
| 3 | I8-98191 302-0 | HINGE; DOOR FRT | 4 | 1108- | A | |||
| 1 | I8-98260 599-1 | DOOR ASM; FRT,WO/TRIM | 1 | 1108- | A | |||
| 38 | I8-98330 950-0 | CHECKER ASM; DOOR | 2 | 1204- | A | |||
| 5 | I8-98049 756-0 | BOLT; HINGE | 20 | 1108- | A | M8X2 0 FLANGE | ||
| 38 | I8-98330 950-0 | CHECKER ASM; DOOR | 2 | 1108- | A | |||
| 131 | I8-98039 593-1 | BOLT; DOOR STOPPER | 4 | 1108- | A | M10X11 | ||
| 43 | I8-98037 152-2 | PIN | 2 | 1108- | A | |||
| 41 | I8-98029 290-4 | BRACKET; CHECKER | 2 | 1108- | A | |||
| 40 | I8-97329 625-0 | NUT; CHECKER | 4 | 1108- | A | M8 W/DISHED WASHER |
