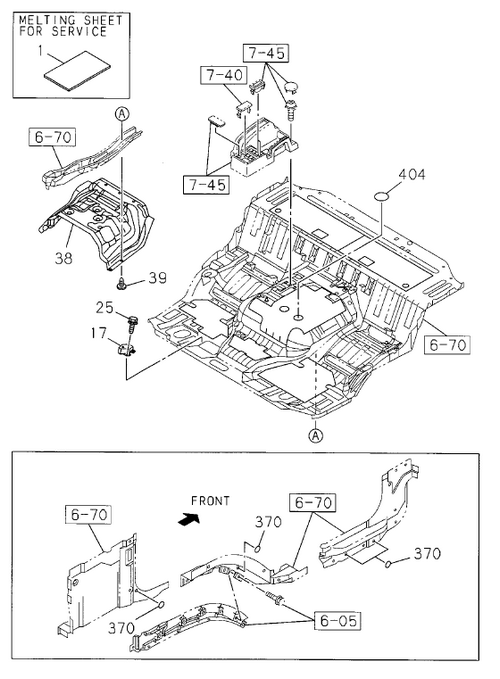

6-76 | FLOOR EQUIPMENT AND SEALING
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 370 | I8-98230 420-0 | SEAL; LOCATION HOLE | 8 | 1108- | A | OD=3 0 T=1.0 | ||
| 25 | I8-94279 201-0 | SCREW; FOOT REST | 3 | 1108- | A | M6X19.5 W/LK&PL WASHER | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 2 | 1108- | A | OD=2 5 BLACK | ||
| 38 | I8-98248 305-0 | INSULATOR; ENG COVER FVM34 | 1 | 1312- | A | |||
| 17 | I8-98076 322-1 | REST; FOOT,DRIVER | 1 | 1108- | A | |||
| 1 | I8-94262 093-0 | SHEET; MELTING,FLOOR | AR | 1108- | A | NON ASBESTOS 100 0X60 0 T=1.5; PARTS ONLY | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 2 | 1108- | A | OD=2 5 BLACK | ||
| 39 | I8-97808 623-0 | CLIP; INSULATOR,COVER | 17 | 1108- | A | ID=6.2 L=11.4 | ||
| 38 | I8-98248 305-0 | INSULATOR; ENG COVER | 1 | 1108- | A | |||
| 370 | I8-98230 420-0 | SEAL; LOCATION HOLE | 8 | 1108- | A | OD=3 0 T=1.0 | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 12 | 1108- | A | OD=2 5 BLACK | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 12 | 1108- | A | OD=2 5 BLACK |
