| 12 |
I7-31511 311-A |
|
CUSHION; SEAT,FRT |
1 |
1108- |
|
A |
DARK GRAY |
| 306 |
I1-75538 207-A |
|
NUT; SEAT ADJ |
8 |
1108- |
|
A |
(A) M8 FLANGE |

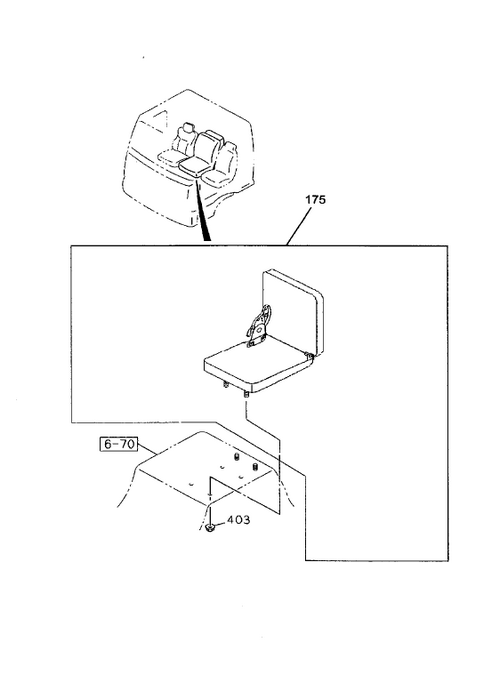

| 175 |
I7-31021 311-A |
|
BACK ASM; PASSENGER CENTER SEAT |
1 |
1108- |
|
A |
DARK GRAY |

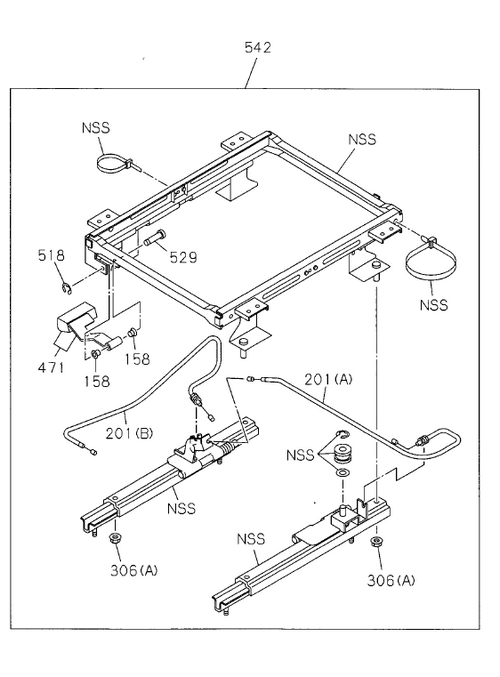

| 542 |
I7-32312 311-A |
|
ADJUSTER ASM; SEAT SLIDE |
1 |
1108- |
|
A |
|
| 228 |
I8-98062 662-0 |
|
SCREW; KNOB |
1 |
1108- |
|
A |
M4 |
| 19 |
I8-98062 663-A |
|
SCREW; COVER |
1 |
1108- |
|
A |
M5 |
| 398 |
I1-75538 207-A |
|
NUT; STAND |
4 |
1108- |
|
A |
M8 FLANGE |
| 175 |
I7-31021 311-A |
|
BACK ASM; PASSENGER CENTER SEAT |
1 |
1108- |
|
A |
DARK GRAY |
| 2 |
I8-97411 910-2 |
|
COVER; TRIM,FRT SEAT,BACK |
1 |
1108- |
|
A |
DARK GRAY |
| 306 |
I0-91180 110-0 |
|
NUT; SEAT ADJ |
2 |
1108- |
|
A |
(B) M10 FLANGE |
| 398 |
I1-75538 207-A |
|
NUT; STAND |
4 |
1108- |
|
A |
M8 FLANGE |
| 17 |
I8-98062 661-0 |
|
BOLT; RECLINING |
4 |
1108- |
|
A |
(B) M10 |
| 42 |
I7-31330 310-B |
|
STAND; DRIVER SEAT |
1 |
1108- |
|
A |
|
| 24 |
I7-32212 311-A |
|
KNOB; RECLINING,FRT,SEAT |
1 |
1108- |
|
A |
GRAY |
| 542 |
I7-32312 311-A |
|
ADJUSTER ASM; SEAT SLIDE |
1 |
1108- |
|
A |
|
| 18 |
I7-32211 311-A |
|
COVER; RECLINING |
1 |
1108- |
|
A |
GRAY |
| 122 |
I7-32221 311-A |
|
COVER; ADJ,RECLINING |
1 |
1108- |
|
A |
GRAY |
| 123 |
I8-98070 026-0 |
|
SCREW; COVER,RECLINING |
1 |
1108- |
|
A |
|
| 100 |
I8-98203 070-0 |
|
COVER; HINGE |
1 |
1110- |
|
A |
|
| 42 |
I7-31330 310-B |
|
STAND; DRIVER SEAT |
1 |
1108- |
|
A |
|
| 42 |
I7-31331 310-B |
|
STAND; DRIVER SEAT |
1 |
1106- |
|
A |
PASSENGER |
| 122 |
I7-32221 311-A |
|
COVER; ADJ,RECLINING |
1 |
1108- |
|
A |
GRAY |

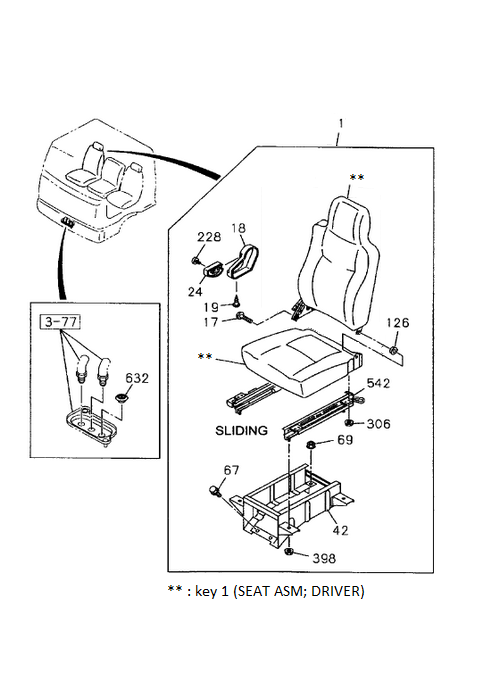

| 1 |
I7-31011 314-A |
|
SEAT ASM; DRVR |
1 |
1506- |
|
A |
DARK GRAY |
| 1 |
I7-31011 312-A |
|
SEAT ASM; DRVR |
1 |
1108-1505 |
|
A |
DARK GRAY |
| 42 |
I7-31330 310-B |
|
STAND; DRIVER SEAT |
1 |
1108- |
|
A |
|
| 17 |
I8-98092 334-0 |
|
BOLT; RECLINING |
4 |
1108- |
|
A |
(A) |
| 67 |
I0-28451 020-0 |
|
BOLT; FRT SEAT TO BODY |
2 |
1108- |
|
A |
M10X2 0 FLANGE |
| 42 |
I7-31331 310-B |
|
STAND; DRIVER SEAT |
1 |
1106- |
|
A |
PASSENGER |

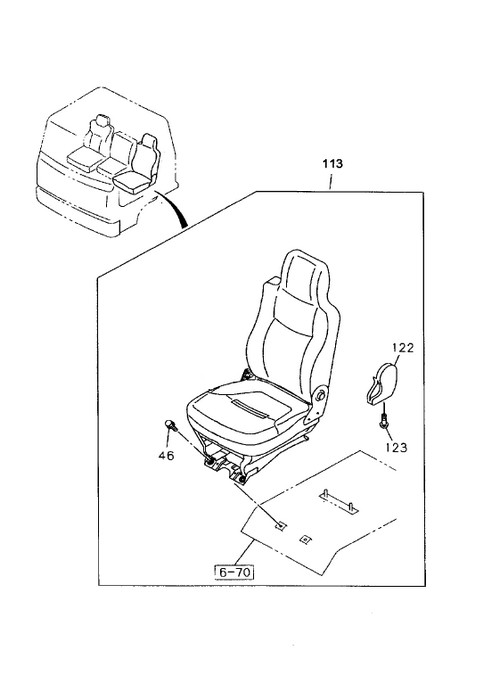

| 113 |
I7-31031 311-A |
|
BACK ASM; SEAT |
1 |
1108- |
|
A |
DARK GRAY |
| 632 |
I8-94119 796-0 |
|
GROMMET |
1 |
1108- |
|
A |
OD=24 |
| 18 |
I7-32211 311-A |
|
COVER; RECLINING |
1 |
1108- |
|
A |
GRAY |
| 46 |
I0-28451 020-0 |
|
BOLT; STAND TO FLOOR |
2 |
1108- |
|
A |
M10X2 0 FLANGE |
| 113 |
I7-31031 311-A |
|
BACK ASM; SEAT |
1 |
1108- |
|
A |
DARK GRAY |
| 306 |
I1-75538 207-A |
|
NUT; SEAT ADJ |
8 |
1108- |
|
A |
(A) M8 FLANGE |
| 12 |
I7-31511 311-A |
|
CUSHION; SEAT,FRT |
1 |
1112- |
|
A |
DARK GRAY |
| 69 |
I0-91180 110-0 |
|
NUT; FRT SEAT |
2 |
1108- |
|
A |
M10 FLANGE |
| 24 |
I7-32212 311-A |
|
KNOB; RECLINING,FRT,SEAT |
1 |
1108- |
|
A |
GRAY |
| 19 |
I8-98062 663-A |
|
SCREW; COVER |
1 |
1108- |
|
A |
M5 |
