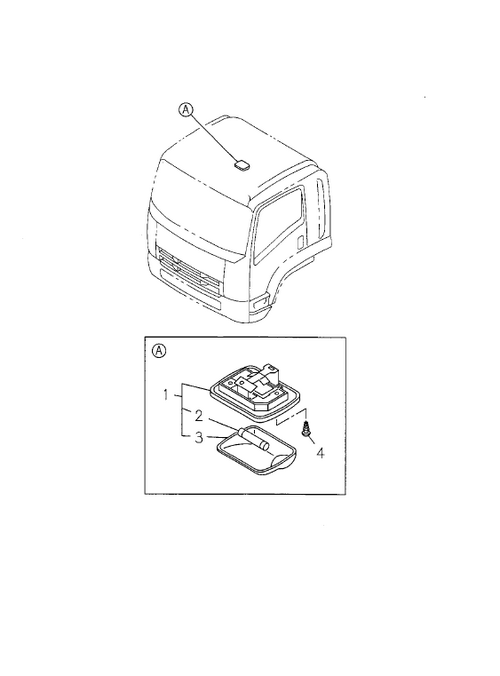

8-05 | INTERIOR LAMP
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97925 658-0 | LENS; ROOM LAMP | 1 | 1512- | A | |||
| 1 | I8-98013 421-3 | LAMP ASM; ROOM | 1 | 1108- | A | |||
| 2 | I8-97925 659-0 | BULB; ROOM LAMP | 1 | 1512- | A | 24V 10W | ||
| 4 | I8-98075 766-0 | SCREW; ROOM LAMP | 2 | 1108- | A | M5X14 W/WASHER | ||
| 3 | I8-98047 272-0 | LENS; ROOM LAMP | 1 | 1108-1511 | A | |||
| 2 | I5-82194 030-0 | BULB; ROOM LAMP | 1 | 1108-1511 | A | 24V 10W |
