8-15 | FIXING PARTS; WIRING HARNESS
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

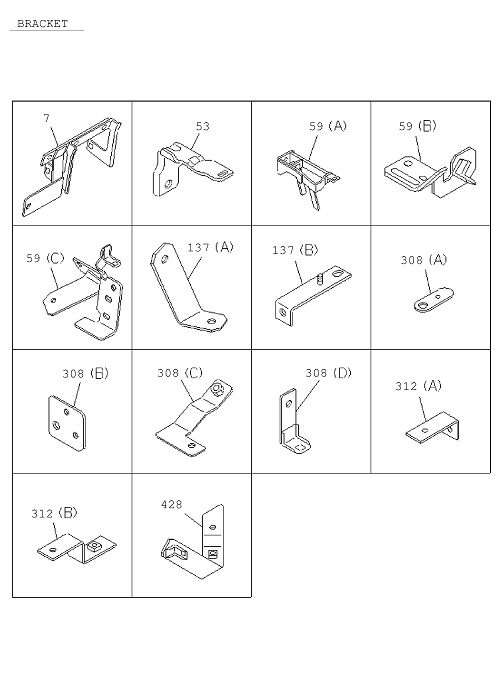

| 428 | I8-97620 514-0 | BRACKET | 1 | 1108- | A | |||

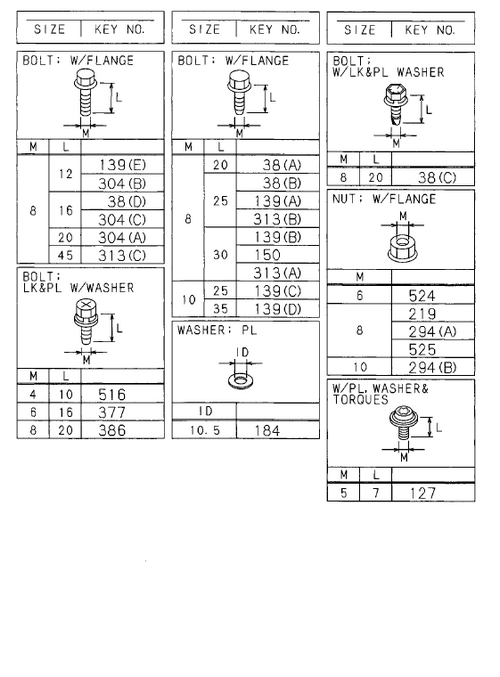

| 38 | I8-98141 255-0 | BOLT; CLIP,HARNESS | 3 | 1203- | A | (D) M8X18.5 W/PL WASHER | ||
| 294 | I0-91180 108-0 | NUT | 3 | 1108- | A | (A) M8 FLANGE | ||

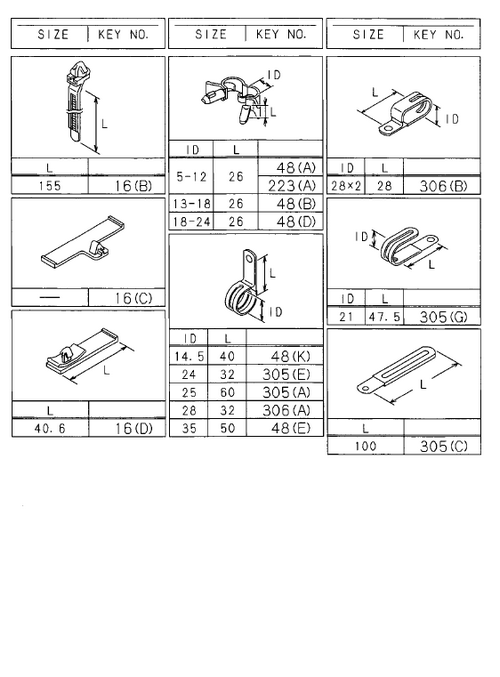

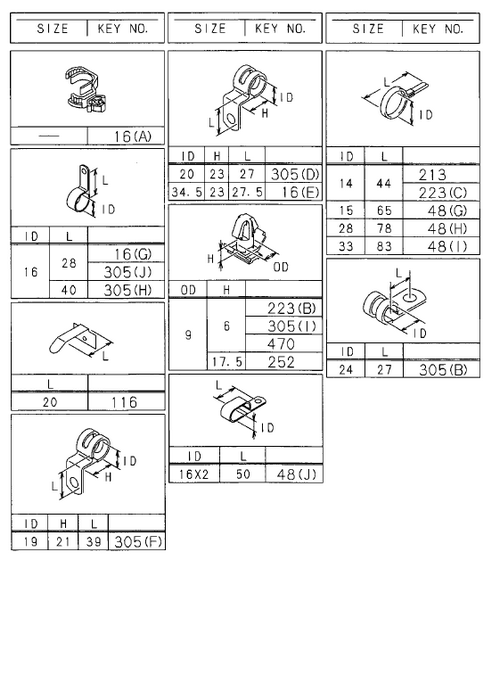

| 16 | I1-09700 905-0 | CLIP; HARNESS | 4 | 1108- | A | (G) ID=34.5 H=23 L=27.5 | ||
| 305 | I1-09700 861-0 | CLIP; ENG HARNESS | 1 | 1108- | A | (F) ID=20 H=23 L=27 | ||
| 16 | I8-98052 679-0 | CLIP; HARNESS | 2 | 1108- | A | (C) | ||
| 48 | I1-09700 466-0 | CLIP; FRAME HARNESS | 20 | 1108- | A | WHEEL BASE 550 0MM(55W) (G) ID=15 L=65 | ||
| 184 | I1-09503 265-0 | WASHER; PL,STARTER EARTH | 2 | 1108- | A | ID=10.5 | ||

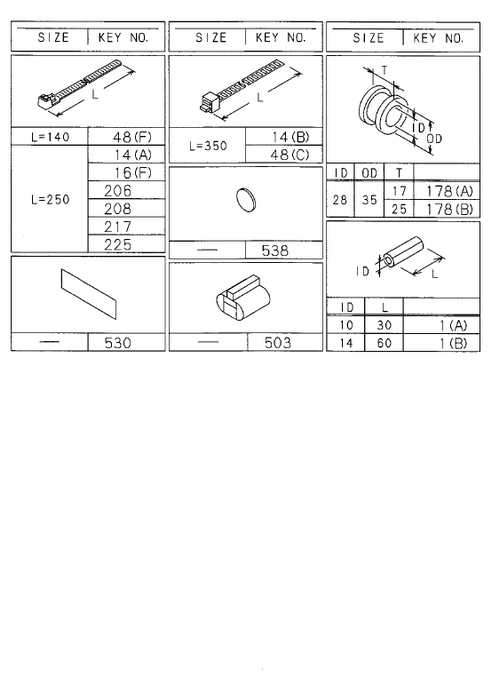

| 217 | I5-09707 030-1 | CLIP; RR BODY HARNESS | 2 | 1108- | A | L=250 IDN | ||
| 16 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1108- | A | (A) ID=16 IDN | ||
| 219 | I0-91180 108-0 | NUT | 2 | 1108- | A | M8 FLANGE | ||
| 386 | I8-97086 825-0 | BOLT; GRAND HARNESS | 2 | 1108- | A | M8X2 0 W/LK&PL WASHER IDN | ||
| 308 | I8-98032 178-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1108- | A | (C) | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 1108- | A | LAMPS TWO ROOF MARKER<TEC> L=20 | ||
| 16 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1108- | A | (A) ID=16 IDN | ||
| 305 | I1-09701 041-1 | CLIP; ENG HARNESS | 1 | 1108- | A | (H) ID=25 L=60 | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 1108- | A | (A) M8X12 FLANGE | ||
| 48 | I1-09709 293-0 | CLIP; FRAME HARNESS | 2 | 1108- | A | (C) ID=13-18 L=26 | ||
| 53 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 1108- | A | |||
| 252 | I1-09709 181-0 | CLIP; CONNECTOR FIX | 1 | 1108- | A | OD=9 H=17.5 | ||
| 48 | I1-09700 858-0 | CLIP; FRAME HARNESS | 1 | 1108- | A | (H) ID=28 L=78 | ||
| 223 | I1-09709 289-0 | CLIP; AIR TANK HARNESS | 3 | 1108- | A | (B) ID=5-12 L=26 | ||
| 294 | I7-05110 010-A | NUT | 2 | 1108- | A | (B) M10 FLANGE | ||
| 16 | I0-95235 556-0 | CLIP; HARNESS | 2 | 1108- | A | (F) ID=16 L=28 | ||
| 313 | I0-28050 845-0 | BOLT; BRKT | 1 | 1108- | A | (C) M8X45 FLANGE | ||
| 38 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 5 | 1108- | A | (B) M8X2 5 FLANGE IDN | ||
| 312 | I1-47475 304-0 | BRACKET; CLIP HARNESS | 1 | 1108- | A | (A) L=55 | ||
| 139 | I0-28650 830-0 | BOLT; BRKT | 1 | 1108- | A | (B) M8X3 0 FLANGE | ||
| 516 | I0-36230 410-0 | BOLT; HARNESS | 1 | 1108- | A | M4X10 W/LK&PL WASHER | ||
| 48 | I1-09707 183-0 | CLIP; FRAME HARNESS | 1 | 1108- | A | (B) L=350 | ||
| 7 | I8-98049 798-1 | BRACKET; CONNECTOR | 1 | 1108- | A | |||
| 223 | I9-09917 427-0 | CLIP; AIR TANK HARNESS | 4 | 1108- | A | (C) ID=14 L=44 | ||
| 312 | I8-97609 110-1 | BRACKET; CLIP HARNESS | 1 | 1108- | A | (B) | ||
| 225 | I5-09707 030-1 | CLIP; AIR TANK HARNESS | 4 | 1108- | A | L=250 IDN | ||
| 48 | I1-09701 291-0 | CLIP; FRAME HARNESS | 5 | 1108- | A | (I) ID=33 L=83 | ||
| 137 | I8-97614 728-1 | BRACKET; HARNESS CLAMP | 1 | 1108- | A | (A) | ||
| 59 | I8-97616 305-0 | BRACKET; FRAME HARNESS | 1 | 1108- | A | (B) | ||
| 38 | I0-28650 820-0 | BOLT; CLIP,HARNESS | 2 | 1108- | A | (A) M8X2 0 FLANGE IDN | ||
| 1 | I9-09956 682-0 | SLEEVE; RUBBER | 3 | 1108- | A | (B) ID=10 OD=14 L=30 | ||
| 305 | I0-95235 556-0 | CLIP; ENG HARNESS | 2 | 1108- | A | (B) ID=16 L=28 | ||
| 503 | I1-82690 668-0 | CONNECTOR | 1 | 1108- | A | |||
| 137 | I8-97624 013-0 | BRACKET; HARNESS CLAMP | 1 | 1108- | A | (B) | ||
| 308 | I8-98021 692-1 | BRACKET; CLIP,ENG HARNESS | 1 | 1108- | A | (B) | ||
| 48 | I5-09707 031-1 | CLIP; FRAME HARNESS | 2 | 1108- | A | (F) L=140 IDN | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 2 | 1108- | A | M8 FLANGE M8 FLANGE | ||
| 38 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 1 | 1108- | A | (B) M8X2 5 FLANGE IDN | ||
| 139 | I0-28651 025-0 | BOLT; BRKT | 2 | 1108- | A | (C) M10X25 FLANGE IDN | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1108- | A | OD=2 5 BLACK | ||
| 223 | I1-09709 178-0 | CLIP; AIR TANK HARNESS | 1 | 1108- | A | (A) OD=9 H=6 | ||
| 178 | I1-09332 011-1 | GROMMET; HARNESS | 3 | 1108- | A | (A) ID=28 OD=35 T=25 | ||
| 16 | I8-97173 307-0 | CLIP; HARNESS | 18 | 1108- | A | (B) L=155 IDN | ||
| 304 | I0-28050 820-0 | BOLT; ENG HARNESS CLIP | 4 | 1108- | A | (A) M8X20 FLANGE | ||
| 139 | I0-28651 035-0 | BOLT; BRKT | 1 | 1108- | A | (E) M10X35 FLANGE IDN | ||
| 313 | I0-28650 830-0 | BOLT; BRKT | 1 | 1108- | A | (A) M8X3 0 FLANGE | ||
| 139 | I0-28650 825-0 | BOLT; BRKT | 1 | 1108- | A | (D) M8X2 5 FLANGE IDN | ||
| 59 | I8-98107 611-0 | BRACKET; FRAME HARNESS | 1 | 1108- | A | (C) | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 4 | 1108- | A | M6 FLANGE | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 11 | 1108- | A | 180X40 | ||
| 14 | I1-09707 183-0 | CLIP; BAND,HARNE S S | 1 | 1108- | A | (B) L=350 | ||
| 313 | I0-28650 825-0 | BOLT; BRKT | 1 | 1108- | A | (B) M8X2 5 FLANGE IDN | ||
| 208 | I5-09707 030-1 | CLIP; HARNESS,MAG VLV | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> L=250 IND ITOCHU | ||
| 14 | I5-09707 030-1 | CLIP; BAND,HARNE S S | 9 | 1108- | A | (A) L=250 IDN | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1108- | A | OD=2 5 BLACK | ||
| 304 | I0-28050 816-0 | BOLT; ENG HARNESS CLIP | 5 | 1108- | A | (C) M8X16 FLANGE | ||
| 305 | I1-09709 178-0 | CLIP; ENG HARNESS | 1 | 1108- | A | (I) OD=9 H=6 | ||
| 292 | I1-82691 191-0 | CAP; RUBBER | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) | ||
| 48 | I1-09700 466-0 | CLIP; FRAME HARNESS | 1 | 1108- | A | (G) ID=15 L=65 | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 3 | 1108- | A | EXC. LAMPS TWO ROOF MARKER<TEC> L=20 | ||
| 304 | I0-28050 812-A | BOLT; ENG HARNESS CLIP | 6 | 1108- | A | (B) M8X12 FLANGE | ||
| 305 | I8-94178 108-0 | CLIP; ENG HARNESS | 1 | 1108- | A | (C) ID=21 L=47.5 | ||
| 48 | I1-09709 296-0 | CLIP; FRAME HARNESS | 2 | 1108- | A | (D) ID=18-24 L=26 | ||
| 38 | I8-97086 825-0 | BOLT; CLIP,HARNESS | 3 | 1108- | A | (C) M8X2 0 W/LK&PL WASHER IDN | ||
| 14 | I8-98216 430-0 | CLIP; BAND,HARNESS | 9 | 1206- | A | (A) L=250 | ||
| 48 | I1-09701 014-0 | CLIP; FRAME HARNESS | 1 | 1310- | A | ZF9S1110 DD M/T(Y5P) (K) ID=14.5 L=40 | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 1108- | A | OD=9 H=6 | ||
| 294 | I0-91180 108-0 | NUT | 1 | 1108- | A | (A) M8 FLANGE | ||
| 306 | I1-09701 107-1 | CLIP; HARNESS,ELEC GOV | 1 | 1108- | A | (A) ID=28 L=32 | ||
| 178 | I9-09956 256-2 | GROMMET; HARNESS | 1 | 1108- | A | (B) ID=28 OD=35 T=17 | ||
| 150 | I0-28650 830-0 | BOLT; CLIP | 1 | 1108- | A | M8X3 0 FLANGE | ||
| 305 | I8-94443 021-1 | CLIP; ENG HARNESS | 1 | 1108- | A | (J) L=100 | ||
| 313 | I0-28650 830-0 | BOLT; BRKT | 1 | 1108- | A | (A) M8X3 0 FLANGE | ||
| 16 | I5-09707 030-1 | CLIP; HARNESS | 3 | 1108- | A | (E) L=250 IDN | ||
| 206 | I5-09707 030-1 | CLIP; FUEL TANK HARNESS | 2 | 1108- | A | L=250 IDN | ||
| 16 | I8-97229 357-0 | CLIP; HARNESS | 2 | 1108- | A | (D) L=40.6 | ||
| 59 | I8-97609 264-2 | BRACKET; FRAME HARNESS | 1 | 1108- | A | (A) | ||
| 308 | I8-98075 824-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1108- | A | (D) | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 1108- | A | M6X16 W/LK&PL WASHER | ||
| 102 | I1-09707 162-1 | CLIP; BAND | 1 | 1310- | A | 6HK1-TCS ENG(8 0L) L=180 | ||
| 48 | I1-09700 466-0 | CLIP; FRAME HARNESS | 30 | 1108- | A | WHEEL BASE 7100MM(71W) (G) ID=15 L=65 | ||
| 213 | I9-09917 427-0 | CLIP; END CROSS HARNESS | 3 | 1108- | A | ID=14 L=44 | ||
| 306 | I1-09701 302-0 | CLIP; HARNESS,ELEC GOV | 2 | 1108- | A | (B) ID=28X2 L=28 | ||
| 308 | I8-97601 310-0 | BRACKET; CLIP,ENG HARNESS | 2 | 1108- | A | (A) | ||
| 305 | I1-09700 809-0 | CLIP; ENG HARNESS | 3 | 1108- | A | (E) ID=24 L=27 | ||
| 294 | I7-05110 010-A | NUT | 2 | 1108- | A | (B) M10 FLANGE | ||
| 48 | I1-09709 289-0 | CLIP; FRAME HARNESS | 1 | 1108- | A | (A) ID=5-12 L=26 | ||
| 305 | I0-95235 576-0 | CLIP; ENG HARNESS | 1 | 1108- | A | (A) ID=16 L=40 | ||
| 305 | I1-09700 766-1 | CLIP; ENG HARNESS | 1 | 1108- | A | (D) ID=24 L=32 | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 1108- | A | M5X7 W/PL WASHER&TORQUES | ||
| 48 | I1-09701 214-0 | CLIP; FRAME HARNESS | 1 | 1108- | A | (E) ID=35 L=50 | ||
| 1 | I1-09337 030-0 | SLEEVE; RUBBER | 1 | 1108- | A | (A) ID=14 OD=18 L=60 | ||
| 305 | I1-09700 972-1 | CLIP; ENG HARNESS | 1 | 1108- | A | (G) ID=19 L=39 H=21 | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 1108- | A | M8 FLANGE M8 FLANGE |
