8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

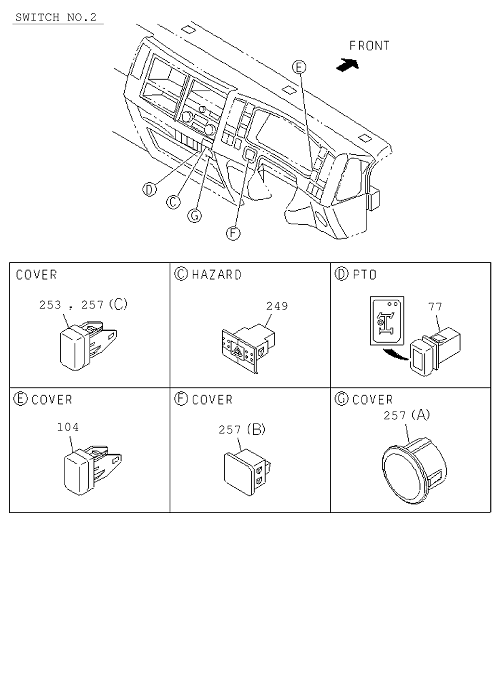

| 249 | I8-97386 922-1 | SWITCH; HAZARD | 1 | 1108- | A | |||
| 253 | I8-98025 954-1 | COVER; SW HOLE | 1 | 1108- | A | |||
| 77 | I8-97615 488-2 | SWITCH; PTO | 1 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 21 | I8-94337 761-0 | SWITCH; CLU | 1 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 104 | I8-98025 954-1 | COVER; SW HOLE,FOG LAMP | 1 | 1108- | A | |||

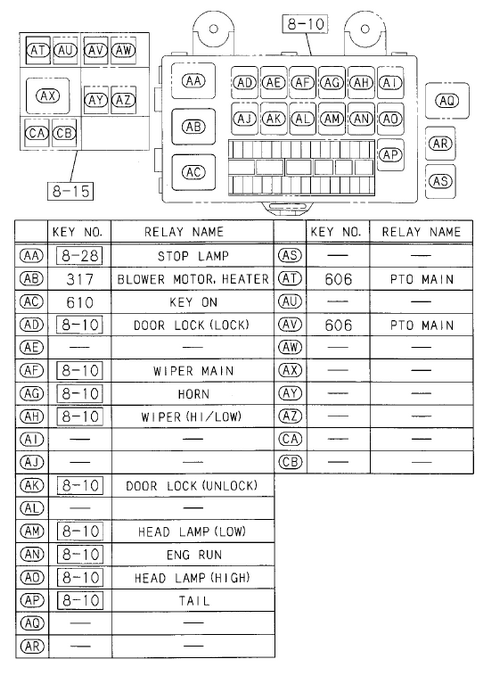

| 606 | I8-97173 035-1 | RELAY; PTO MAIN | 1 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A MATSUSHITA IDN | ||
| 610 | I8-97262 933-0 | RELAY; KEY ON | 1 | 1108- | A | 24V 12.5A MATSUSHITA | ||
| 257 | I8-98029 917-0 | COVER; HOLE,SW | 1 | 1108- | A | (D) | ||

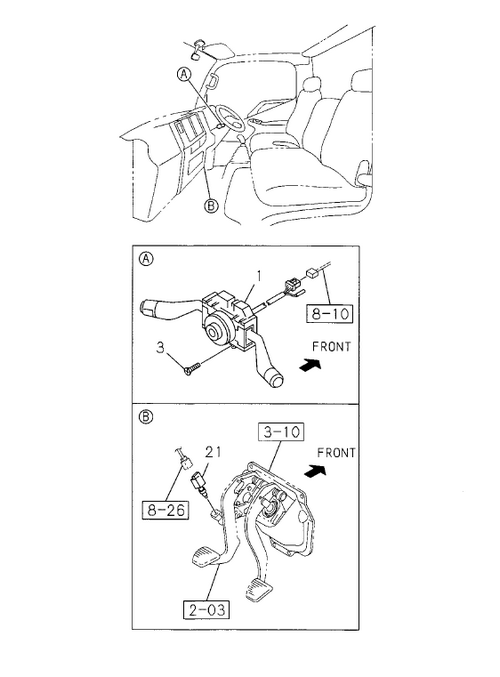

| 1 | I8-98243 704-0 | SWITCH; COMB | 1 | 1310- | A | |||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 9 | 1108- | A | (C) | ||
| 1 | I8-98243 704-0 | SWITCH; COMB | 1 | 1108- | A | |||
| 30 | I8-98047 201-0 | SCREW; DOOR SW | 1 | 1108- | A | M5X18 | ||
| 257 | I8-98070 401-2 | COVER; HOLE,SW | 1 | 1108- | A | (A) | ||
| 317 | I8-97262 933-0 | RELAY; BLOWER MOTOR,HTR | 1 | 1108- | A | 24V 12.5A MATSUSHITA | ||
| 253 | I8-98025 954-1 | COVER; SW HOLE | 3 | 1108- | A | |||
| 3 | I8-98061 743-0 | SCREW; COMB SW | 2 | 1108- | A | M5X2 0 W/PL WASHER&TORQUES | ||
| 606 | I8-97173 035-1 | RELAY; PTO MAIN | 1 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A MATSUSHITA IDN | ||
| 257 | I8-98029 914-1 | COVER; HOLE,SW | 1 | 1108- | A | (B) | ||
| 21 | I8-97358 248-0 | SWITCH; CLU | 1 | 1108- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||

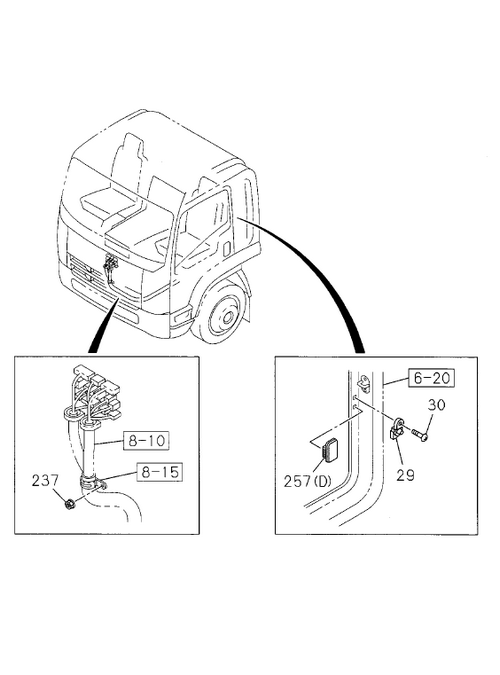

| 237 | I0-91180 108-0 | NUT | 1 | 1108- | A | M8 FLANGE | ||
| 29 | I8-98022 211-0 | SWITCH; DOOR | 1 | 1108- | A | BLACK | ||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1108- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) |
