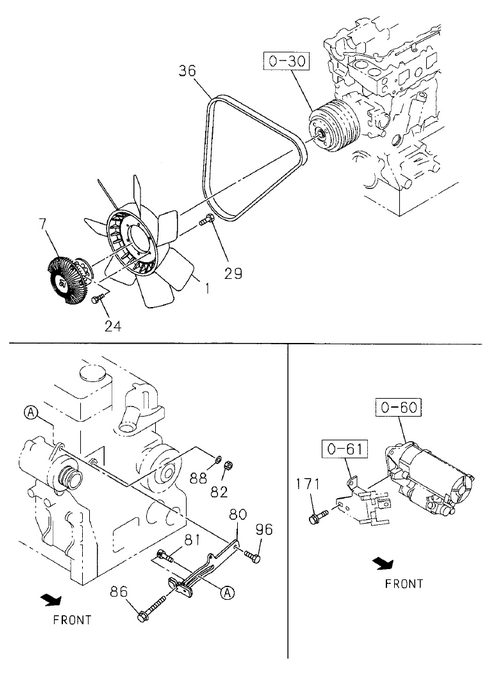

0-33 | FAN AND FAN BELT
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98073 467-1 | FAN; COOLING | 1 | 1108- | A | |||
| 80 | I8-97601 020-1 | PLATE; ADJ | 1 | 1108- | A | |||
| 24 | I0-28151 025-0 | BOLT; FAN | 4 | 1108- | A | M10X2 5 FLANGE | ||
| 29 | I0-28050 816-0 | BOLT; COUPLING TO WATER PUMP | 6 | 1108- | A | M8X16 FLANGE | ||
| 96 | I0-28051 045-0 | BOLT; ADJ PLATE | 1 | 1108- | A | M10X45 FLANGE | ||
| 171 | I0-28051 020-0 | BOLT; HEAT PROTECTOR | 1 | 1108- | A | M10X2 0 FLANGE | ||
| 82 | I0-91180 112-0 | NUT; ADJ PLATE | 1 | 1108- | A | M12 FLANGE IDN | ||
| 96 | I0-28051 045-0 | BOLT; ADJ PLATE | 1 | 1108- | A | M10X45 FLANGE | ||
| 36 | I8-97611 859-A | BELT; COOLING FAN | 1 | 1108- | A | L=117 0 | ||
| 86 | I1-09009 114-1 | BOLT; ADJ | 1 | 1108- | A | M10X155 FLANGE | ||
| 81 | I1-13674 160-0 | PIECE; SLIDING | 1 | 1108- | A | M12X45 | ||
| 88 | I0-91614 712-0 | WASHER; PL,ADJ PLATE | 1 | 1108- | A | ID=12.5 OD=32 | ||
| 36 | I8-97611 859-A | BELT; COOLING FAN | 1 | 1108- | A | L=117 0 | ||
| 7 | I8-98075 290-1 | COUPLING; FAN | 1 | 1108- | A |
