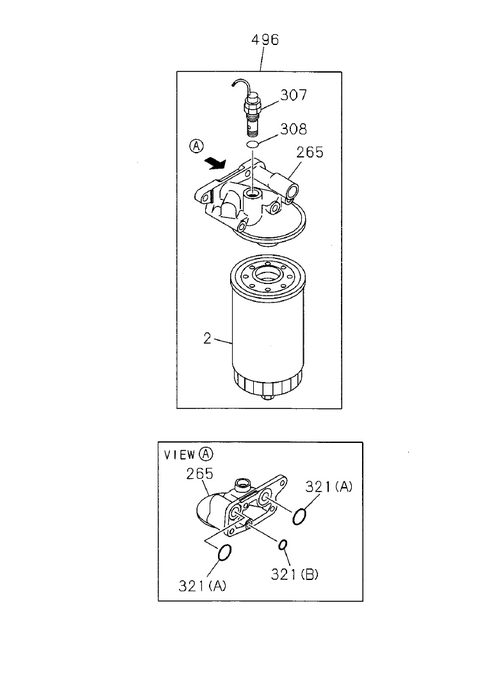

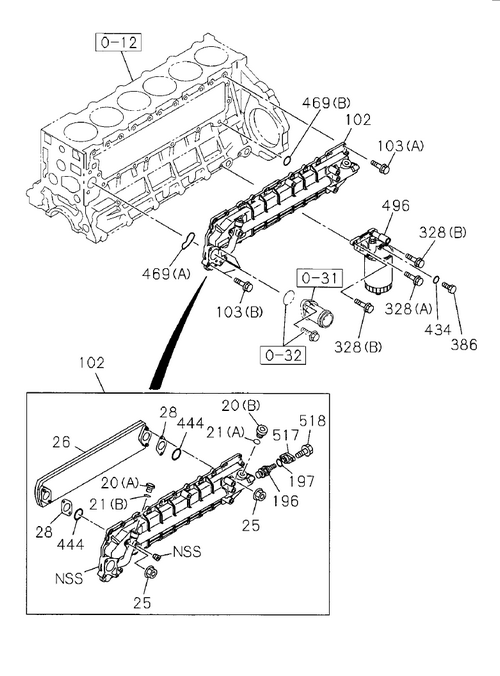

0-50 | OIL COOLER AND OIL FILTER
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I8-98238 944-0 | VALVE; RELIEF | 1 | 1308- | A | |||
| 518 | I0-28050 816-0 | BOLT; PLUG,THERMOSTAT | 2 | 1108- | A | M8X16 FLANGE | ||
| 469 | I8-98045 449-0 | GASKET; OIL COOLER TO C/BL | 1 | 1108- | A | (B) | ||
| 434 | I8-98238 942-0 | GASKET; PLUG,OIL FILTER | 1 | 1308- | A | (B) | ||
| 265 | I8-94391 016-4 | BODY; OIL FILTER | 1 | 1108-1307 | A | IDN | ||
| 496 | I8-94391 015-8 | FILTER ASM; OIL | 1 | 1108-1307 | A | |||
| 33 | I8-97600 158-0 | HOUSING ASM; COOLER | 1 | 1108- | A | |||
| 444 | I8-94396 810-0 | GASKET; ELEMENT TO BODY | 2 | 1108- | A | |||
| 386 | I0-28051 012-0 | PLUG; OIL FILTER | 1 | 1108- | A | M10X10 | ||
| 308 | I1-09623 163-0 | GASKET; VLV,OVERFLOW | 1 | 1108- | A | ID=15.8 | ||
| 103 | I8-97365 376-0 | BOLT; OIL COOLER | 24 | 1312-1402 | A | 6HK1-TCN ENG(82L) | ||
| 20 | I8-94393 604-0 | PLUG; COOLER BODY | 1 | 1108- | A | (A) | ||
| 321 | I8-94399 399-0 | GASKET; OIL FILTER TO C/BL | 2 | 1108- | A | (A) ID=22.1 | ||
| 25 | I1-13219 324-0 | NUT; CORE TO BODY | 4 | 1108- | A | M10 FLANGE | ||
| 21 | I1-09623 499-0 | GASKET; PLUG | 1 | 1108- | A | (B) | ||
| 386 | I0-28051 012-0 | PLUG; OIL FILTER | 1 | 1403- | AB | 6HK1-TCN ENG(82L) & 6HK1-TCS ENG(80L) | ||
| 103 | I8-97365 376-0 | BOLT; OIL COOLER | 24 | 1108- | A | (A) M8X2 2 FLANGE | ||
| 434 | I1-09630 083-0 | GASKET; PLUG,OIL FILTER | 1 | 1108- | A | ID=10.2 OD=15.2 | ||
| 2 | I6-94396 375-0 | ELEMENT; OIL FILTER | 1 | 1108- | A | (IADG) | ||
| 103 | I0-28050 835-0 | BOLT; OIL COOLER | 3 | 1108- | A | (B) M8X3 5 FLANGE | ||
| 386 | I0-28051 012-0 | PLUG; OIL FILTER | 1 | 1312-1402 | A | 6HK1-TCN ENG(82L) | ||
| 21 | I8-94396 755-0 | GASKET; PLUG | 1 | 1108- | A | (A) M24 | ||
| 496 | I8-94391 015-8 | FILTER ASM; OIL | 1 | 1108-1307 | A | |||
| 386 | I8-98238 941-0 | PLUG; OIL FILTER | 1 | 1308- | A | (B) | ||
| 307 | I8-94395 700-0 | VALVE; OVERFLOW | 1 | 1108- | A | IDN | ||
| 13 | I8-98238 944-0 | VALVE; RELIEF | 1 | 1403- | B | GVR-TH | ||
| 103 | I8-97365 376-0 | BOLT; OIL COOLER | 24 | 1108- | A | (A) M8X2 2 FLANGE | ||
| 197 | I8-94399 279-0 | GASKET; THERMOSTAT | 1 | 1108- | A | ID=25.7 | ||
| 21 | I1-09623 499-0 | GASKET; PLUG | 1 | 1403- | AB | 6HK1-TCN ENG(82L) & 6HK1-TCS ENG(80L) | ||
| 321 | I8-94399 339-0 | GASKET; OIL FILTER TO C/BL | 1 | 1108- | A | (B) ID=9.8 | ||
| 26 | I8-94391 738-1 | CORE ASM; OIL COOLER | 1 | 1108- | A | |||
| 2 | I8-94391 049-4 | ELEMENT; OIL FILTER | 1 | 1108- | A | |||
| 265 | I8-98238 939-0 | BODY; OIL FILTER | 1 | 1308- | A | |||
| 20 | I8-94396 753-0 | PLUG; COOLER BODY | 1 | 1108- | A | (B) | ||
| 328 | I0-28151 030-0 | BOLT; OIL FILTER | 2 | 1108- | A | (A) M10X3 0 FLANGE | ||
| 102 | I8-97600 156-1 | COOLER ASM; OIL | 1 | 1108- | A | |||
| 517 | I8-94391 740-0 | PLUG; THERMOSTAT,OIL COOLER | 1 | 1108- | A | |||
| 21 | I1-09623 499-0 | GASKET; PLUG | 1 | 1312-1402 | A | 6HK1-TCN ENG(82L) | ||
| 196 | I8-97600 936-0 | THERMOSTAT; OIL COOLER | 1 | 1108- | A | 90 beta C | ||
| 386 | I0-28051 012-0 | PLUG; OIL FILTER | 1 | 1108- | A | M10X10 | ||
| 496 | I8-98236 649-0 | FILTER ASM; OIL | 1 | 1308- | A | |||
| 434 | I8-98238 942-0 | GASKET; PLUG,OIL FILTER | 1 | 1403- | B | GVR-TH | ||
| 328 | I0-28151 090-0 | BOLT; OIL FILTER | 2 | 1108- | A | (B) M10X90 FLANGE | ||
| 2 | I8-94396 375-4 | ELEMENT; OIL FILTER | 1 | 1108- | A | |||
| 103 | I8-97365 376-0 | BOLT; OIL COOLER | 24 | 1403- | AB | 6HK1-TCN ENG(82L) & 6HK1-TCS ENG(80L) | ||
| 469 | I8-94399 002-0 | GASKET; OIL COOLER TO C/BL | 1 | 1108- | A | (A) | ||
| 21 | I1-09623 499-0 | GASKET; PLUG | 1 | 1108- | A | (B) | ||
| 28 | I8-94394 930-0 | GASKET; CORE TO BODY | 2 | 1108- | A |
