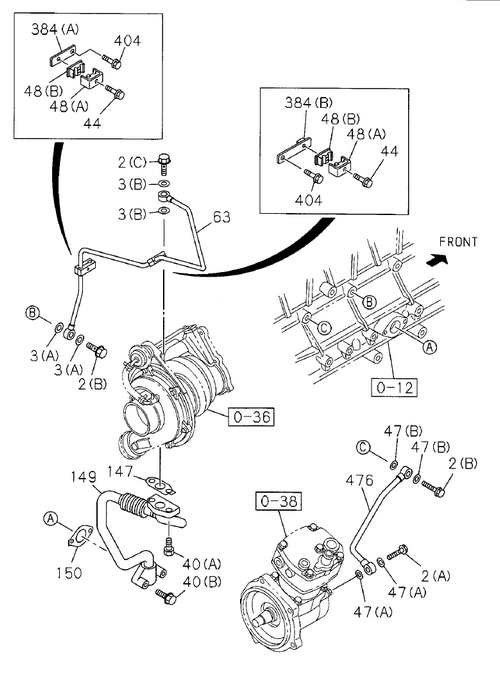

0-52 | OIL AND VACUUM PIPING; ENGINE
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 384 | I1-13319 041-0 | BRACKET; CLIP,OIL PIPE,TURBOCHARGER | 1 | 1108- | A | (B) | ||
| 48 | I1-09701 229-2 | CLIP; OIL PIPE | 2 | 1108- | A | (B) | ||
| 48 | I1-09701 228-3 | CLIP; OIL PIPE | 2 | 1108- | A | (A) | ||
| 47 | I1-09630 085-0 | GASKET; OIL PIPE | 2 | 1108- | A | (B) ID=14.2 OD=19.2 | ||
| 3 | I1-09630 084-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 1108- | A | (B) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 404 | I1-09000 114-0 | BOLT; BRKT | 2 | 1108- | A | M8X15 | ||
| 2 | I8-97372 238-0 | BOLT; EYE,OIL PIPE | 1 | 1108- | A | (A) M10X21 FLANGE | ||
| 2 | I1-09675 086-0 | BOLT; EYE,OIL PIPE | 2 | 1108- | A | (B) M14X2 7 FLANGE | ||
| 3 | I1-09630 085-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 1108- | A | (A) ID=14.2 OD=19.2 | ||
| 47 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 1108- | A | (A) ID=10.2 OD=15.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD | ||
| 40 | I0-28151 030-0 | BOLT; OIL PIPE | 2 | 1108- | A | (A) M10X3 0 FLANGE | ||
| 149 | I8-98147 092-0 | PIPE; OIL RETURN,TURBOCHARGER | 1 | 1108- | A | |||
| 2 | I5-09675 006-1 | BOLT; EYE,OIL PIPE | 1 | 1108- | A | (C) M12X25 | ||
| 63 | I8-98074 254-0 | PIPE; OIL,TURBOCHARGER FEED | 1 | 1108- | A | |||
| 40 | I0-28650 825-0 | BOLT; OIL PIPE | 2 | 1108- | A | (B) M8X2 5 FLANGE IDN | ||
| 384 | I1-13319 020-0 | BRACKET; CLIP,OIL PIPE,TURBOCHARGER | 1 | 1108- | A | (A) | ||
| 150 | I8-94394 671-0 | GASKET; OIL PIPE TO C/BL | 1 | 1108- | A | ID=3 0 ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 44 | I0-28050 630-0 | BOLT; CLIP,OIL PIPE | 2 | 1108- | A | M6X3 0 FLANGE | ||
| 147 | I1-09637 058-2 | GASKET; OIL PIPE TO TURBOCHARGER | 1 | 1108- | A | ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 476 | I8-97608 935-0 | PIPE; OIL,C/BL TO AIR CMPR | 1 | 1108- | A |
