0-60 | ENGINE ELECTRICAL CONTROL PARTS
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 379 | I8-94279 219-0 | BOLT; BRKT | 1 | 1108- | A | M10X25 W/LK&PL WASHER | ||
| 379 | I8-94279 219-0 | BOLT; BRKT | 1 | 1403- | AB | FVR WIDE CAB(FGR5MV) & GVR WIDE CAB(GGR5MV) | ||
| 813 | I8-98177 447-0 | HARNESS; INJECTOR | 1 | 1108- | A | (A) FRONT | ||
| 56 | I1-82410 170-1 | SWITCH; OIL PRESSURE WARNING | 1 | 1108- | A | |||
| 26 | I0-28151 040-0 | BOLT; GEN BRKT | 2 | 1108- | A | (B) M10X40 FLANGE | ||

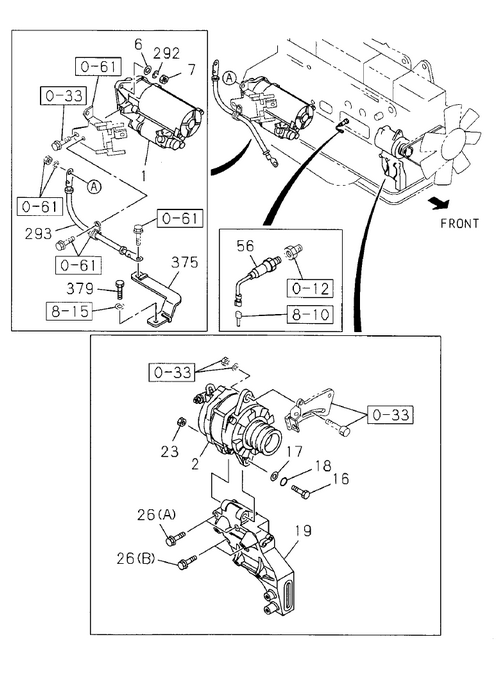

| 1 | I6-98141 206-0 | STARTER ASM | 1 | 1203- | A | 24V 5.0KW | ||
| 10 | I8-98005 631-1 | RELAY; STARTER | 1 | 1108- | A | (B) 2 4V NIKKO | ||
| 732 | I0-28651 030-0 | BOLT; BRKT | 3 | 1108- | A | M10X3 0 FLANGE | ||
| 379 | I8-94279 219-0 | BOLT; BRKT | 1 | 1312-1402 | A | FVR WIDE CAB(FGR5MV) | ||
| 2 | I8-97688 036-0 | GENERATOR ASM | 1 | 2102- | A | 24V 50A | ||
| 260 | I8-98260 257-0 | SENSOR; WATER TEMP | 1 | 1108- | A | |||
| 897 | I8-98260 912-1 | DRM | 1 | 1108- | A | |||
| 836 | I0-28050 812-A | BOLT; CONNECTOR | 2 | 1108- | A | M8X12 FLANGE | ||
| 375 | I8-98131 726-0 | BRACKET | 1 | 1108- | A | |||
| 101 | I0-28650 840-0 | BOLT; HARNESS | 4 | 1108- | A | M8X40 FLANGE | ||
| 16 | I1-09000 133-1 | BOLT; GEN | 1 | 1108- | A | M14X135 | ||
| 292 | I0-91510 514-0 | WASHER; LK,STARTER | 1 | 1108- | A | ID=14.2 | ||
| 6 | I0-91610 514-0 | WASHER; PL,STARTER | 1 | 1108- | A | ID=15 | ||
| 11 | I0-28650 820-0 | BOLT; RELAY STARTER | 2 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 296 | I0-91180 108-0 | NUT; RELAY,STARTER | 2 | 1108- | A | M8 FLANGE | ||

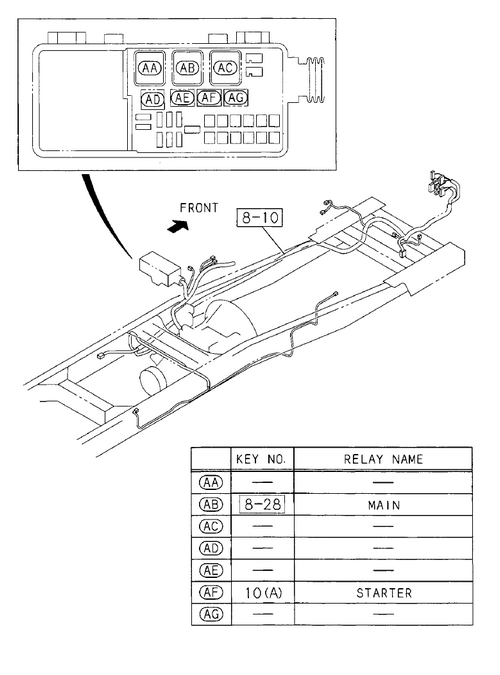

| 10 | I8-98167 173-0 | RELAY; STARTER | 1 | 1108- | A | (A) 2 4V 10A | ||

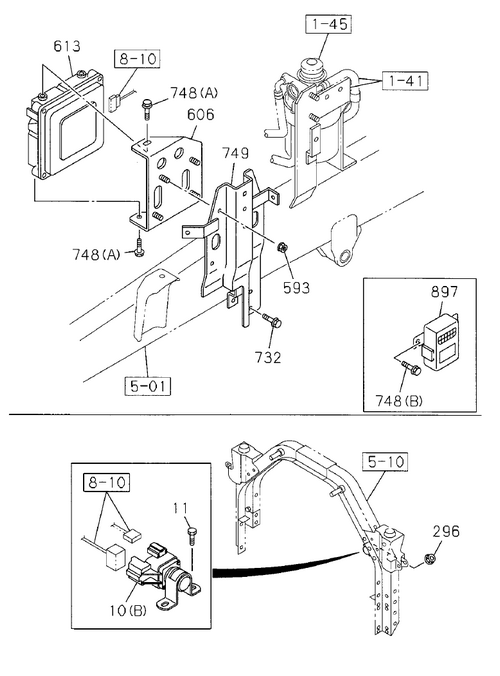

| 606 | I1-53194 675-0 | BRACKET; CONT UNIT | 1 | 1108- | A | |||
| 613 | I8-98229 598-0 | CONTROL UNIT; ENG | 1 | 1108- | A | |||
| 690 | I8-94390 858-1 | CONNECTOR | 2 | 1108- | A | |||
| 19 | I8-98082 615-1 | BRACKET; GEN | 1 | 1108- | A | |||
| 293 | I8-98131 856-0 | CABLE; STARTER EARTH | 1 | 1108- | A | L=420 | ||
| 740 | I0-91180 108-0 | NUT | 2 | 1108- | A | M8 FLANGE | ||
| 749 | I1-53194 595-3 | STAY; CONT UNIT | 1 | 1108- | A | |||
| 23 | I7-05014 012-A | NUT; GEN | 1 | 1108- | A | M14 | ||
| 1 | I8-98141 206-3 | STARTER ASM | 1 | 1108- | A | 24V 5.0KW MITSUBISHI | ||
| 23 | I7-05014 012-A | NUT; GEN | 1 | 1108- | A | M14 | ||
| 898 | I8-98009 418-0 | SENSOR; BOOST | 1 | 1108- | A | |||
| 1 | I8-98141 206-3 | STARTER ASM | 1 | 1108- | A | 24V 5.0KW MITSUBISHI | ||
| 748 | I0-28050 612-0 | BOLT; CONT UNIT | 3 | 1108- | A | (A) M6X12 FLANGE | ||
| 813 | I8-98177 448-0 | HARNESS; INJECTOR | 1 | 1108- | A | (B) REAR | ||
| 752 | I8-94391 310-0 | GASKET | 2 | 1108- | A | ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 613 | I8-98229 598-0 | CONTROL UNIT; ENG | 1 | 1108- | A | |||
| 379 | I8-94279 219-0 | BOLT; BRKT | 1 | 1108- | A | M10X25 W/LK&PL WASHER | ||
| 23 | I7-05014 012-A | NUT; STARTER | 2 | 1403- | AB | FVR WIDE CAB(FGR5MV) & GVR WIDE CAB(GGR5MV) | ||
| 7 | I7-05014 012-A | NUT; STARTER | 2 | 1312-1402 | A | FVR WIDE CAB(FGR5MV) | ||
| 897 | I8-98260 912-1 | DRM | 1 | 1108- | A | |||
| 18 | I0-91510 514-0 | WASHER; LK,GEN | 1 | 1108- | A | ID=14.2 | ||
| 7 | I7-05014 012-A | NUT; STARTER | 2 | 1108- | A | M14 | ||
| 17 | I0-91610 514-0 | WASHER; PL,GEN | 1 | 1108- | A | ID=15 | ||
| 593 | I0-91180 106-0 | NUT; BRKT | 4 | 1108- | A | M6 FLANGE | ||
| 7 | I7-05014 012-A | NUT; STARTER | 2 | 1403- | AB | FVR WIDE CAB(FGR5MV) & GVR WIDE CAB(GGR5MV) | ||
| 7 | I7-05014 012-A | NUT; STARTER | 2 | 1108- | A | M14 | ||
| 23 | I7-05014 012-A | NUT; STARTER | 2 | 1312-1402 | A | FVR WIDE CAB(FGR5MV) | ||
| 813 | I8-98204 717-0 | HARNESS; INJECTOR | 1 | 1201- | A | (A) FRONT | ||
| 813 | I8-98204 718-0 | HARNESS; INJECTOR | 1 | 1201- | A | (B) REAR | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 1108- | A | (B) M6X16 FLANGE | ||
| 26 | I0-28151 080-0 | BOLT; GEN BRKT | 2 | 1108- | A | (A) M10X8 0 FLANGE | ||
| 2 | I8-97481 701-0 | GENERATOR ASM | 1 | 1108-1710 | A | 24V 50A |
