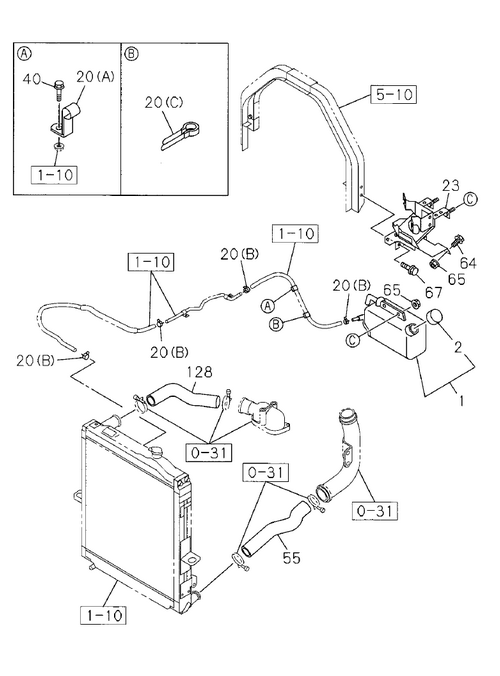

1-11 | RADIATOR HOSE AND SUB TANK
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 128 | I8-98050 924-A | HOSE; WATER,RAD INL | 1 | 1108- | A | |||
| 55 | I8-98079 429-A | HOSE; WATER,RAD OUTLET | 1 | 1301- | A | |||
| 64 | I1-09030 093-0 | BOLT; BRKT,SUB TANK | 1 | 1108- | A | M8X25 W/LK&PL WASHER | ||
| 2 | I8-98178 074-0 | CAP; SURGE TANK | 1 | 1108- | A | |||
| 67 | I0-28650 820-0 | BOLT; BRKT | 3 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 23 | I8-98049 965-4 | BRACKET; RESERVE TANK | 1 | 1108- | A | |||
| 20 | I8-97375 638-0 | CLIP; HOSE,RAD | 4 | 1108- | A | (B) ID=11 . 5 | ||
| 55 | I8-98079 429-A | HOSE; WATER,RAD OUTLET | 1 | 1108- | A | |||
| 40 | I0-28650 820-0 | BOLT; CLIP | 1 | 1108- | A | M8X2 0 FLANGE IDN | ||
| 1 | I8-98171 757-0 | TANK; SURGE,RAD | 1 | 1108- | A | |||
| 128 | I8-98050 924-A | HOSE; WATER,RAD INL | 1 | 1301- | A | |||
| 20 | I1-09700 620-0 | CLIP; HOSE,RAD | 1 | 1108- | A | (A) ID=13 H=40 L=25 | ||
| 65 | I0-91180 108-0 | NUT; BRKT,SUB TANK | 3 | 1108- | A | M8 FLANGE | ||
| 20 | I9-09917 430-0 | CLIP; HOSE,RAD | 1 | 1108- | A | (C) ID=20 L=50 |
