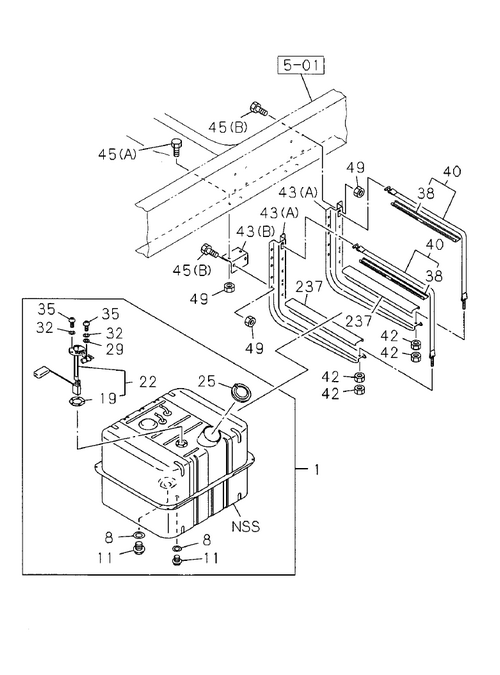

| 1 |
I7-56200 311-B |
|
TANK; FUEL |
1 |
1108- |
|
A |
720X610X496 200L |
| 237 |
I1-22553 010-0 |
|
GASKET; BRKT TO FUEL TANK |
2 |
1108- |
|
A |
L=580 |
| 38 |
I1-22553 025-1 |
|
INSULATION; SUPPORT BELT |
2 |
1108- |
|
A |
L=650 |
| 43 |
I8-98185 667-0 |
|
BRACKET; FUEL TANK |
2 |
1108- |
|
A |
(A) |
| 43 |
I8-98182 492-0 |
|
BRACKET; FUEL TANK |
1 |
1108- |
|
A |
(B) FRONT |
| 1 |
I8-98182 507-0 |
|
TANK; FUEL |
1 |
1108- |
|
A |
720X610X496 200L |
| 42 |
I7-05012 010-A |
|
NUT; SUPPORT BELT |
4 |
1312-1402 |
|
A |
FVR WIDE CAB(FGR5MV) |
| 11 |
I8-94152 613-A |
|
PLUG; DRAIN,FUEL TANK |
2 |
1108- |
|
A |
M14X14 IDN |
| 237 |
I1-22553 010-0 |
|
GASKET; BRKT TO FUEL TANK |
2 |
1108- |
|
A |
L=580 |
| 40 |
I1-22550 204-2 |
|
BELT; SUPPORT,FUEL TANK |
2 |
1108- |
|
A |
L=1030 |
| 8 |
I8-98067 041-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
1201- |
|
A |
LOCALLY ID=30 |
| 640 |
I8-98092 398-0 |
|
VENTILATOR; HOSE,BREATHER |
1 |
1201- |
|
A |
LOCALLY |
| 42 |
I0-91110 510-0 |
|
NUT; SUPPORT BELT |
4 |
1108- |
|
A |
M10 |
| 38 |
I1-22553 025-1 |
|
INSULATION; SUPPORT BELT |
2 |
1312- |
|
A |
FVR WIDE CAB(FGR5MV) |
| 40 |
I8-98042 715-1 |
|
BELT; SUPPORT,FUEL TANK |
2 |
1201- |
|
A |
LOCALLY |
| 45 |
I0-28651 235-0 |
|
BOLT; BRKT,FUEL TANK |
12 |
1108- |
|
A |
(B) M12X35 FLANGE |
| 19 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
1108- |
|
A |
|
| 159 |
I1-83149 003-0 |
|
SEAL; ROLL OVER & FLOAT VALVE |
2 |
1201- |
|
A |
LOCALLY |
| 22 |
I8-98099 320-0 |
|
UNIT; FUEL TANK |
1 |
1201- |
|
A |
|
| 29 |
I0-91610 505-0 |
|
WASHER; PL,FUEL TANK UNIT |
1 |
1108- |
|
A |
ID=5.3 |
| 1 |
I7-56200 311-B |
|
TANK; FUEL |
1 |
1108- |
|
A |
720X610X496 200L |
| 11 |
I8-94152 613-A |
|
PLUG; DRAIN,FUEL TANK |
2 |
1108- |
|
A |
M14X14 IDN |
| 8 |
I9-09572 014-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
2 |
1108- |
|
A |
ID=14.2 OD=23.0 IDN |
| 32 |
I0-91510 505-0 |
|
WASHER; LK,FUEL TANK UNIT |
5 |
1108- |
|
A |
ID=5.1 |
| 158 |
I8-98067 039-0 |
|
VALVE; ROLL OVER & FLOAT |
2 |
1201- |
|
A |
LOCALLY |
| 1 |
I7-56200 311-B |
|
TANK; FUEL |
1 |
1108- |
|
A |
720X610X496 200L |
| 369 |
I8-98067 080-0 |
|
JOINT; HOSE |
1 |
1201- |
|
A |
LOCALLY |
| 237 |
I1-22553 010-0 |
|
GASKET; BRKT TO FUEL TANK |
2 |
1312- |
|
A |
FVR WIDE CAB(FGR5MV) |
| 25 |
I1-22440 046-1 |
|
CAP; FILLER,FUEL TANK |
1 |
1108- |
|
A |
|
| 45 |
I0-28651 240-0 |
|
BOLT; BRKT,FUEL TANK |
4 |
1108- |
|
A |
(A) M12X40 FLANGE |
| 11 |
I8-98067 038-0 |
|
PLUG; DRAIN,FUEL TANK |
1 |
1201- |
|
A |
LOCALLY |
| 42 |
I7-05012 010-A |
|
NUT; SUPPORT BELT |
4 |
1403- |
|
AB |
FVR WIDE CAB(FGR5MV) & GVR WIDE CAB(GGR5MV) |
| 22 |
I8-98296 671-0 |
|
UNIT; FUEL TANK |
1 |
1108-1112 |
|
A |
|
| 43 |
I8-98182 493-0 |
|
BRACKET; FUEL TANK |
1 |
1108- |
|
A |
(B) REAR |
| 38 |
I1-22553 025-1 |
|
INSULATION; SUPPORT BELT |
2 |
1108- |
|
A |
L=650 |
| 35 |
I0-34218 510-0 |
|
SCREW; FUEL TANK UNIT |
5 |
1108- |
|
A |
M5X10 |
| 43 |
I8-98088 123-0 |
|
BRACKET; FUEL TANK |
1 |
1201- |
|
A |
LOCALLY ( C ) |
| 49 |
I0-91180 212-0 |
|
NUT; BRKT |
16 |
1108- |
|
A |
M12 FLANGE |
| 43 |
I8-98122 883-0 |
|
BRACKET; FUEL TANK |
1 |
1201- |
|
A |
LOCALLY ( D ) |
