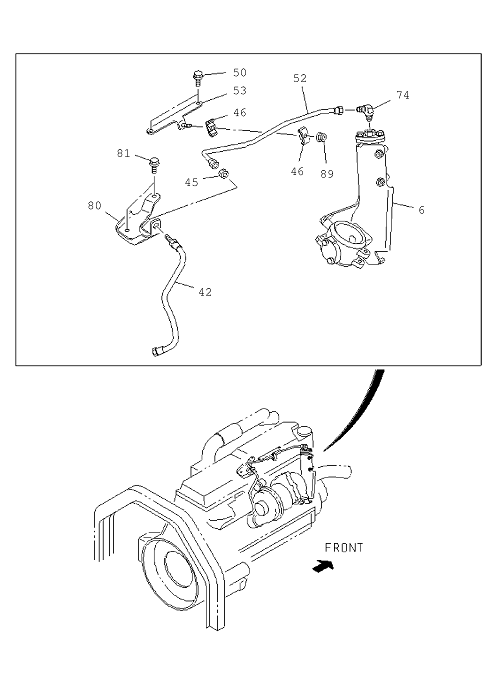

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 80 | I8-98182 767-A | BRACKET; FLEX HOSE | 1 | 1108- | A | IDN | ||
| 53 | I8-98182 766-A | BRACKET; CLIP | 1 | 1312-1402 | A | 6HK1-TCN ENG(82L) | ||
| 6 | I8-97602 527-1 | VALVE; EXH BRAKE | 1 | 1108- | A | |||
| 80 | I8-98182 767-A | BRACKET; FLEX HOSE | 1 | 1312-1402 | A | 6HK1-TCN ENG(82L) | ||
| 46 | I8-98148 996-2 | CLIP; AIR PIPE | 2 | 1108- | A | |||
| 74 | I1-09650 430-0 | CONNECTOR; EXH BRK VLV | 1 | 1108- | A | M12 & PT1/4 ELBOW | ||
| 42 | I1-09363 608-0 | HOSE; FLEX,EXH BRK | 1 | 1108- | A | L=300 | ||
| 80 | I8-98182 767-A | C | BRACKET; FLEX HOSE | 1 | 1108- | A | IDN | |
| 53 | I8-98182 766-A | BRACKET; CLIP | 1 | 1108- | A | IDN | ||
| 52 | I8-97603 547-A | PIPE ASM; AIR FLEX HOSE | 1 | 1403- | AB | 6HK1-TCN ENG(82L) & 6HK1-TCS ENG(80L) | ||
| 53 | I8-98182 766-A | BRACKET; CLIP | 1 | 1403- | AB | 6HK1-TCN ENG(82L) & 6HK1-TCS ENG(80L) | ||
| 80 | I8-98182 767-A | BRACKET; FLEX HOSE | 1 | 1403- | AB | 6HK1-TCN ENG(82L) & 6HK1-TCS ENG(80L) | ||
| 53 | I8-98182 766-A | C | BRACKET; CLIP | 1 | 1108- | A | IDN | |
| 6 | I8-97602 527-1 | A | VALVE; EXH BRAKE | 1 | 1108- | A | ||
| 52 | I8-97603 547-A | PIPE ASM; AIR FLEX HOSE | 1 | 1312-1402 | A | 6HK1-TCN ENG(82L) | ||
| 50 | I0-28050 812-A | BOLT; BRKT | 2 | 1108- | A | M8X12 FLANGE | ||
| 89 | I0-91180 106-0 | NUT; BRKT | 1 | 1108- | A | M6 FLANGE | ||
| 52 | I8-97603 547-A | PIPE ASM; AIR FLEX HOSE | 1 | 1108- | A | |||
| 45 | I9-09840 280-0 | NUT; FLEX HOSE | 1 | 1108- | A | M12 | ||
| 81 | I0-28050 812-A | BOLT; HOSE BRKT | 2 | 1108- | A | M8X12 FLANGE |
