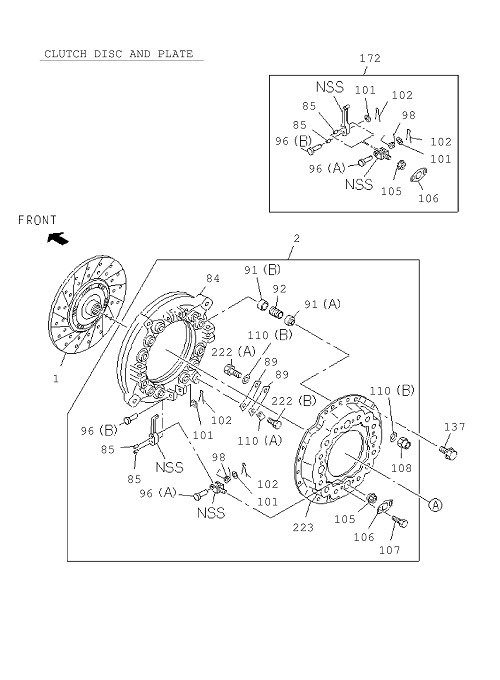

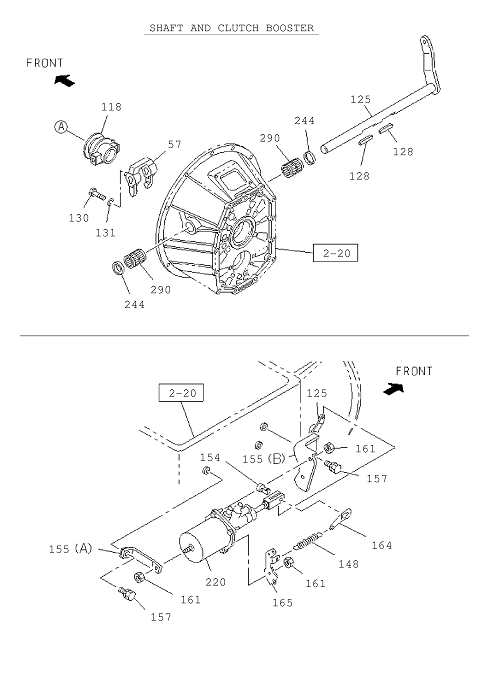

2-01 | CLUTCH
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 107 | I1-31239 061-0 | BOLT; LK PLATE | 8 | 1108- | A | IDN | ||
| 220 | I1-31800 516-2 | BOOSTER ASM; CLU | 1 | 1310- | A | FVR-HP | ||
| 118 | I1-31310 026-0 | BEARING; CLU RELEASE | 1 | 1108- | A | |||
| 102 | I9-08113 022-0 | PIN; SPLIT,RELEASE LEVER | 8 | 1312-1402 | A | |||
| 244 | I1-09625 002-0 | SEAL; DUST | 2 | 1108- | A | |||
| 1 | I6-31240 851-0 | DISC; CLUTCH | 1 | 1108- | A | |||
| 125 | I1-31342 335-0 | SHAFT; CLU | 1 | 1108- | A | |||
| 164 | I1-31426 041-0 | EYE; SPRING | 1 | 1108- | A | |||
| 290 | I1-09811 002-1 | BEARING; NEEDLE | 2 | 1108- | A | NTN | ||
| 2 | I1-31220 377-A | PLATE ASM; PRESSURE,CLU | 1 | 1108- | A | |||
| 92 | I1-31214 066-0 | SPRING; CLU | 12 | 1108- | A | |||
| 165 | I1-47477 789-0 | BRACKET; SPR EYE,MINIPACK,FLEX TUBE | 1 | 1108- | A | |||
| 106 | I1-31239 019-0 | PLATE; LK,LEVER SUPPORT | 4 | 1108- | A | |||
| 91 | I1-31219 012-0 | SEAT; SPR | 12 | 1108- | A | (A) ID=37 H=25 | ||
| 101 | I1-31239 058-0 | WASHER; RELEASE LEVER | 8 | 1108- | A | IDN | ||
| 1 | I8-98185 180-1 | DISC; CLUTCH | 1 | 1108- | A | 15" | ||
| 222 | I1-09040 042-0 | BOLT; STRAP | 4 | 1108- | A | (B) M10X23.2 | ||
| 148 | I1-09583 305-0 | SPRING; CLU RETURN | 1 | 1108- | A | L=135 | ||
| 102 | I9-08113 022-0 | PIN; SPLIT,RELEASE LEVER | 8 | 1108- | A | OD=2.7 L=22 | ||
| 110 | I8-97374 512-0 | WASHER; SPECIAL,STRAP | 8 | 1108- | A | (B) T=3.2 | ||
| 2 | I6-31220 377-0 | PLATE ASM; PRESSURE,CLU | 1 | 1108- | A | IDN | ||
| 105 | I1-31235 014-0 | NUT; SUPPORT | 4 | 1108- | A | IDN | ||
| 137 | I0-28151 020-0 | BOLT; CLU COVER | 12 | 1108- | A | M10X2 0 FLANGE | ||
| 91 | I1-31219 013-0 | SEAT; SPR | 12 | 1108- | A | (B) ID=37 H=15 | ||
| 2 | I1-31220 377-A | PLATE ASM; PRESSURE,CLU | 1 | 1108- | A | |||
| 223 | I1-31211 019-1 | COVER; CLU | 1 | 1108- | A | IDN | ||
| 84 | I1-31221 100-0 | PLATE; PRESSURE | 1 | 1108- | A | 15" IDN | ||
| 110 | I1-31229 009-0 | WASHER; SPECIAL,STRAP | 4 | 1108- | A | (A) T=1. 2 | ||
| 96 | I1-31232 014-0 | PIN; RELEASE LEVER | 4 | 1108- | A | (B) L=5 7.0 | ||
| 155 | I1-31429 478-0 | BRACKET; MINIPACK | 1 | 1108- | A | (B) | ||
| 154 | I1-31424 007-0 | PIN; JAW JOINT | 1 | 1108- | A | W/O PIN SNAP (1-09747 016-0) | ||
| 85 | I9-31239 116-0 | BUSHING; RELEASE LEVER | 8 | 1108- | A | |||
| 98 | I1-31233 003-0 | SPRING; RETURN | 4 | 1108- | A | |||
| 161 | I7-05110 010-A | NUT; BRKT | 5 | 1312- | A | M10 FLANGE | ||
| 102 | I9-08113 022-0 | PIN; SPLIT,RELEASE LEVER | 8 | 1406- | A | |||
| 157 | I0-28751 025-0 | BOLT; BRKT | 3 | 1108- | A | M10X25 FLANGE | ||
| 102 | I9-08113 022-0 | PIN; SPLIT,RELEASE LEVER | 8 | 1403-1405 | A | |||
| 108 | I1-09449 036-0 | NUT; STRAP | 4 | 1108- | A | |||
| 155 | I1-31429 475-1 | BRACKET; MINIPACK | 1 | 1108- | A | (A) | ||
| 172 | I1-87831 170-1 | LEVER KIT; RELEASE,CLU | 1 | 1108- | A | |||
| 130 | I0-61200 814-0 | SCREW; SHIFT FORK | 1 | 1108- | A | M8X14 | ||
| 161 | I7-05110 010-A | NUT; BRKT | 5 | 1108- | A | M10 FLANGE | ||
| 131 | I0-91510 508-0 | WASHER; LK,SHIFT FORK | 1 | 1108- | A | ID=8.2 | ||
| 89 | I1-31229 050-0 | PLATE; STRAP | 16 | 1108- | A | IDN | ||
| 220 | I1-31800 511-3 | BOOSTER ASM; CLU | 1 | 1108- | A | |||
| 222 | I1-09040 043-0 | BOLT; STRAP | 4 | 1108- | A | (A) M10X26 HEX SOCKET | ||
| 161 | I7-05110 010-A | NUT; BRKT | 5 | 1108- | A | M10 FLANGE | ||
| 57 | I1-31341 048-2 | FORK; SHIFT,CLU | 1 | 1108- | A | |||
| 128 | I9-09867 008-1 | KEY; FEATHER,CLU SHAFT | 2 | 1108- | A | |||
| 102 | I9-08113 022-0 | PIN; SPLIT,RELEASE LEVER | 8 | 1108- | A | OD=2.7 L=22 | ||
| 96 | I1-31232 005-0 | PIN; RELEASE LEVER | 4 | 1108- | A | (A) L=49.0 |
