2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

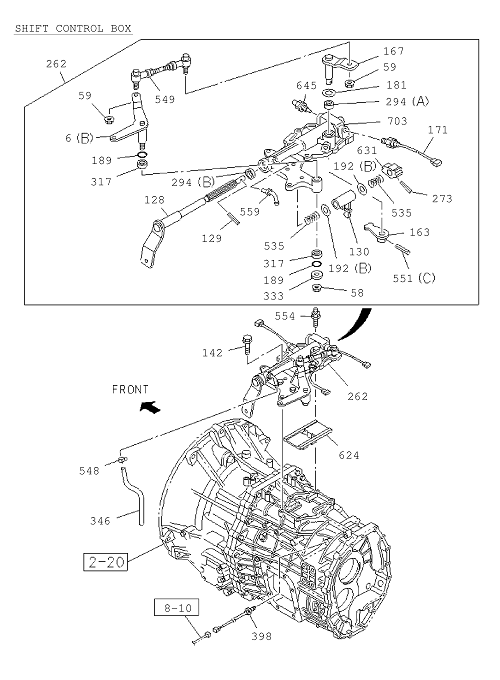

| 262 | I8-97529 377-1 | BOX ASM; SHIFT CONT | 1 | 1108- | A | |||
| 158 | I8-97367 984-1 | CLIP; HARNESS | 2 | 1108- | A | ID=12 | ||

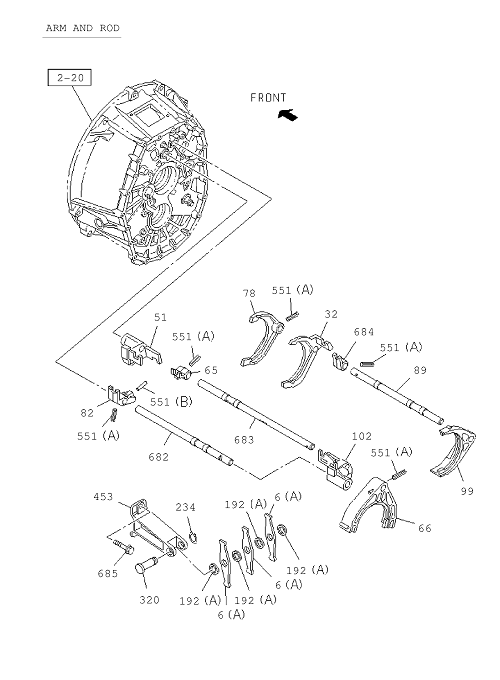

| 51 | I8-98074 457-1 | BLOCK; SHIFT,1ST & 2ND | 1 | 1108- | A | |||

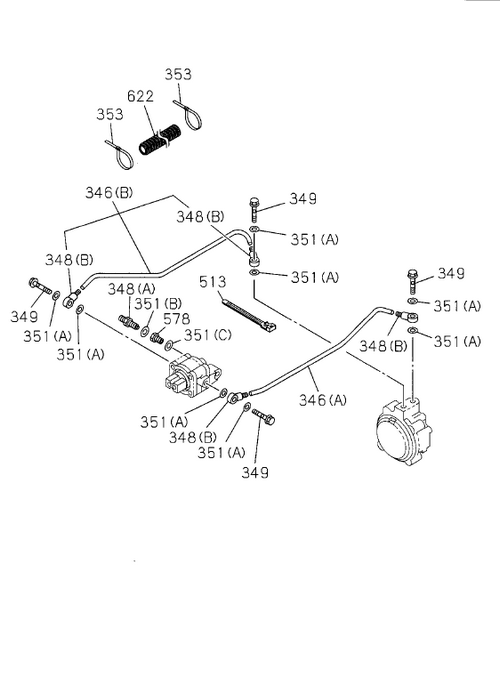

| 346 | I1-33549 618-0 | HOSE; AIR | 1 | 1403- | AB | FVR-HP | ||
| 398 | I8-98242 173-1 | SWITCH; REV LAMP | 1 | 1108-1312 | A | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1108-1312 | A | |||
| 6 | I8-98022 855-0 | LEVER; RELAY | 1 | 1108- | A | (B) | ||
| 398 | I8-98324 878-0 | SWITCH; REV LAMP | 1 | 1108-1312 | A | |||

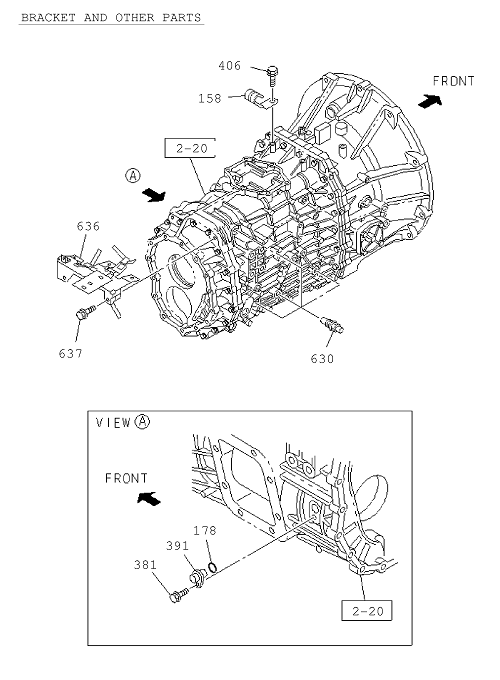

| 637 | I0-28050 816-0 | BOLT; BRACKET | 2 | 1108- | A | M8X16 FLANGE | ||
| 59 | I0-91180 108-0 | NUT | 2 | 1108- | A | M8 FLANGE | ||
| 65 | I8-97388 980-1 | BLOCK ASM; SHIFT,5TH & 6TH | 1 | 1108- | A | |||
| 91 | IE-88786 650-0 | PIN; SPR,SHIFT ARM | 1 | 1403- | B | GVR-TH | ||
| 398 | I8-98242 173-1 | SWITCH; REV LAMP | 1 | 1401- | A | |||
| 391 | I8-97300 273-1 | PLUG; SW HOLE | 1 | 1108- | A | |||
| 128 | I8-97306 927-0 | LEVER; SHIFT,EXTERNAL | 1 | 1108- | A | |||
| 453 | I8-97377 927-1 | BLOCK; RELAY LEVER | 1 | 1108- | A | |||
| 682 | I8-97388 974-0 | ROD; SHIFT,REV,SUB | 1 | 1108- | A | |||
| 172 | IE-55685 100-0 | GASKET; NEUTRAL SW | 1 | 1403- | B | GVR-TH | ||
| 130 | I8-97306 647-0 | LEVER; SHIFT,INTERNAL | 1 | 1108- | A | |||
| 398 | I8-98242 173-1 | SWITCH; REV LAMP | 1 | 1401- | A | |||
| 78 | I8-97388 975-1 | ARM; SHIFT,REV | 1 | 1108- | A | |||
| 406 | I0-28050 816-0 | BOLT; HARNESS CLIP | 2 | 1108- | A | M8X16 FLANGE | ||
| 551 | I8-97011 596-2 | PIN; SPRING | 5 | 1108- | A | (A) L=32 | ||
| 178 | I9-09567 113-0 | GASKET; PLUG | 1 | 1108- | A | |||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 1108- | A | |||
| 551 | I1-09748 032-0 | PIN; SPRING | 1 | 1108- | A | (C) L=17 | ||
| 685 | I8-98034 764-0 | BOLT; BLOCK | 2 | 1108- | A | M8X3 0 FLANGE | ||
| 234 | I0-91800 618-0 | RING; SNAP | 1 | 1108- | A | ID=16.5 | ||
| 273 | I8-97103 142-0 | PIN; SPR,STOPPER | 1 | 1108- | A | D=4.2 L=25 | ||
| 99 | I8-98309 861-0 | ARM; SHIFT,4TH & 3RD | 1 | 1108- | A | |||
| 559 | I8-97358 318-0 | PIPE; BREATHER | 1 | 1108- | A | |||
| 189 | I1-09623 594-0 | GASKET; SELECT LEVER,CONT BOX | 2 | 1108- | A | |||
| 82 | I8-97388 969-0 | BLOCK; SHIFT,REV | 1 | 1108- | A | |||
| 624 | I8-97241 317-3 | PLATE; INTER LOCK | 1 | 1108- | A | |||
| 549 | I8-98022 841-0 | ROD; LINK | 1 | 1108- | A | |||
| 381 | I0-28650 616-0 | BOLT | 1 | 1108- | A | M6X16 FLANGE | ||
| 171 | I8-98242 173-1 | SWITCH; NEUTRAL | 1 | 1108-1312 | A | |||
| 32 | I8-98236 424-0 | ARM; SHIFT,1ST & 2ND | 1 | 1108- | A | |||
| 684 | I8-97388 970-0 | BLOCK; SHIFT,REV,SUB | 1 | 1108- | A | |||
| 683 | I8-98062 173-1 | ROD; SHIFT,5TH & 6TH | 1 | 1108- | A | |||
| 192 | I1-09503 032-0 | WASHER; PL | 4 | 1108- | A | (A) ID=18.2 OD=2 9 | ||
| 262 | I8-98004 477-0 | BOX ASM; SHIFT CONT | 1 | 1108- | A | |||
| 346 | I8-97309 855-0 | HOSE; AIR | 1 | 1108- | A | |||
| 703 | I8-97305 733-0 | CASE; CONT BOX | 1 | 1108- | A | |||
| 163 | I8-97305 663-0 | LEVER; SELECT,INTERNAL | 1 | 1108- | A | |||
| 294 | I8-97363 225-0 | SEAL; OIL,SELECT | 1 | 1108- | A | (B) | ||
| 645 | I8-98019 536-0 | DETENT ASM | 1 | 1108- | A | |||
| 548 | I8-97031 674-0 | CLIP; HOSE | 1 | 1108- | A | |||
| 192 | I8-97305 661-0 | WASHER; PL | 2 | 1108- | A | (B) | ||
| 32 | I8-98236 424-0 | ARM; SHIFT,1ST & 2ND | 1 | 1309- | A | |||
| 66 | I8-97388 981-0 | ARM; SHIFT,5TH & 6TH | 1 | 1108- | A | |||
| 102 | I8-97388 978-2 | BLOCK; SHIFT,3RD & 4TH | 1 | 1108- | A | |||
| 535 | I8-97385 713-0 | SPRING; LEVER | 2 | 1108-1902 | A | |||
| 89 | I8-98062 172-0 | ROD; SHIFT,REV | 1 | 1108- | A | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1401- | A | |||
| 129 | I1-09748 031-0 | PIN; SPR,SHIFT | 1 | 1108- | A | D=4 | ||
| 285 | I8-97383 656-0 | BREATHER; AIR,QUAD BOX | 1 | 1204- | A | |||
| 636 | I8-97610 096-2 | BRACKET; CLIP | 1 | 1108- | A | |||
| 285 | I8-97383 656-0 | BREATHER; AIR,QUAD BOX | 1 | 1204- | A | |||
| 551 | I8-97241 340-0 | PIN; SPRING | 1 | 1108- | A | (B) L=20 | ||
| 630 | I8-98019 536-0 | DETENT ASM | 4 | 1108- | A | |||
| 181 | I8-97367 327-0 | WASHER; PL,SELECT LEVER | 1 | 1108- | A | |||
| 320 | I8-97377 928-0 | SHAFT; LEVER | 1 | 1108- | A | |||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 1108- | A | M8X2 2 FLANGE | ||
| 554 | I8-97365 378-0 | STUD; CONT BOX | 2 | 1108- | A | M8X15,M8X25 L=49 | ||
| 99 | I8-98309 861-0 | ARM ASM;SHIFT,3RD-4TH | 1 | 1507- | A | |||
| 535 | I8-98015 113-0 | SPRING; LEVER | 2 | 1903- | A | |||
| 6 | I8-97241 342-0 | LEVER; RELAY | 3 | 1108- | A | (A) | ||
| 167 | I8-98022 857-0 | LEVER; SELECT,EXTERNAL | 1 | 1108- | A | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1401- | A | |||
| 294 | I8-97305 662-0 | SEAL; OIL,SELECT | 1 | 1108- | A | (A) | ||
| 333 | I0-91610 710-0 | WASHER; PL,LEVER | 1 | 1108- | A | ID=10.5 | ||
| 58 | I0-91180 110-0 | NUT | 1 | 1108- | A | M10 FLANGE | ||
| 631 | I8-97305 666-0 | STOPPER; SPRING | 1 | 1108- | A |
