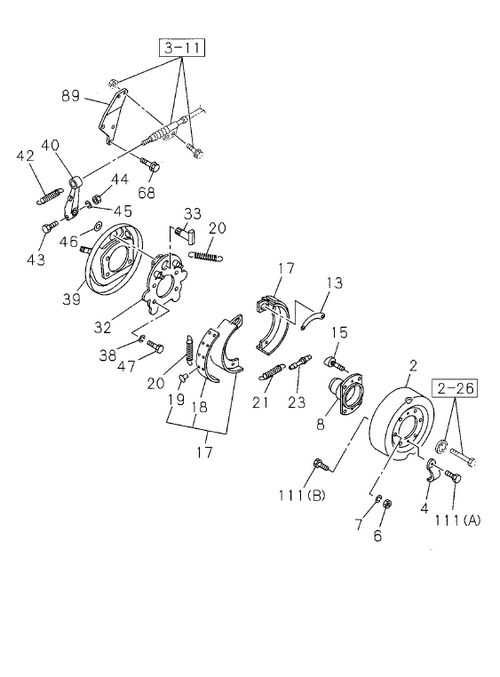

| 21 |
I9-09942 516-0 |
|
SPRING; RETURN,PARKING BRK SHOE |
1 |
1108- |
|
A |
|
| 40 |
I1-46252 046-0 |
|
LEVER; CM/SHF,PARKING BRK |
1 |
1108- |
|
A |
|
| 33 |
I1-46251 010-0 |
|
SHAFT; CAM,PARKING BRK |
1 |
1108- |
|
A |
|
| 23 |
I1-46240 003-0 |
|
SCREW; ADJ,PARKING BRK SHOE |
1 |
1108- |
|
A |
|
| 209 |
I0-91510 510-0 |
|
WASHER; SP,LEVER |
1 |
1108- |
|
A |
ID=10.2 |
| 114 |
I8-98014 138-0 |
|
STUD; SUPPORT PLATE |
1 |
1108- |
|
A |
(A) M14X22 W/DRY-ROCK |
| 20 |
I9-09942 434-0 |
|
SPRING; RETURN,SECONDARY,PARKING BRK |
2 |
1108- |
|
A |
|
| 111 |
I0-50740 820-0 |
|
BOLT; COVER,CHECK HOLE |
2 |
1108- |
|
A |
M8X2 0 W/LK WASHER |
| 114 |
I8-98014 137-0 |
|
STUD; SUPPORT PLATE |
3 |
1108- |
|
A |
(B) M14X22 WO/DRY-ROCK |
| 46 |
I9-09855 367-0 |
|
WASHER; LEVER |
1 |
1108- |
|
A |
|
| 17 |
I1-46220 022-1 |
|
SHOE; PARKING BRK |
2 |
1108- |
|
A |
|
| 37 |
I8-97365 444-0 |
|
NUT; SUPPORT PLATE |
4 |
1108- |
|
A |
M14 FLANGE |
| 42 |
I1-09583 104-0 |
|
SPRING; RETURN,LEVER |
1 |
1108- |
|
A |
|
| 39 |
I1-46213 038-0 |
|
COVER; DUST,PARKING BRK |
1 |
1108- |
|
A |
|
| 13 |
I9-46239 002-0 |
|
BRACE; PARKING BRK |
1 |
1108- |
|
A |
|
| 19 |
I1-09732 012-0 |
|
RIVET; LINING,PARKING BRK |
32 |
1108- |
|
A |
|
| 2 |
I1-46211 019-0 |
|
DRUM; PARKING BRK |
1 |
1108- |
|
A |
|
| 198 |
I8-98023 172-0 |
|
BOLT; KNURL |
4 |
1108- |
|
A |
M16X55 |
| 208 |
I0-91111 510-0 |
|
NUT; LEVER |
1 |
1108- |
|
A |
M10 |
| 46 |
I9-09855 367-0 |
C |
WASHER; LEVER |
1 |
1108- |
|
A |
|
| 8 |
I8-98153 193-0 |
|
FLANGE; PARKING BRK |
1 |
1108- |
|
A |
|
| 19 |
I1-09732 012-0 |
|
RIVET; LINING,PARKING BRK |
32 |
1108- |
|
A |
|
| 32 |
I1-46213 039-0 |
|
PLATE; SUPPORT,PARKING BRK |
1 |
1108- |
|
A |
|
| 130 |
I0-28751 025-0 |
|
BOLT; BRKT |
3 |
1108- |
|
A |
M10X2 5 FLANGE |
| 81 |
I1-46219 030-0 |
|
COVER; CHECK HOLE,PARKING BRK |
2 |
1108- |
|
A |
|
| 207 |
I8-98061 595-0 |
|
BOLT; LEVER |
1 |
1108- |
|
A |
|
| 197 |
I8-98009 002-1 |
|
BRACKET; CENTER BRAKE CABLE |
1 |
1108- |
|
A |
|
| 18 |
I1-46225 023-0 |
|
LINING; BRK,PARKING |
2 |
1108- |
|
A |
|
| 19 |
I1-09732 012-0 |
C |
RIVET; LINING,PARKING BRK |
32 |
1108- |
|
A |
|
