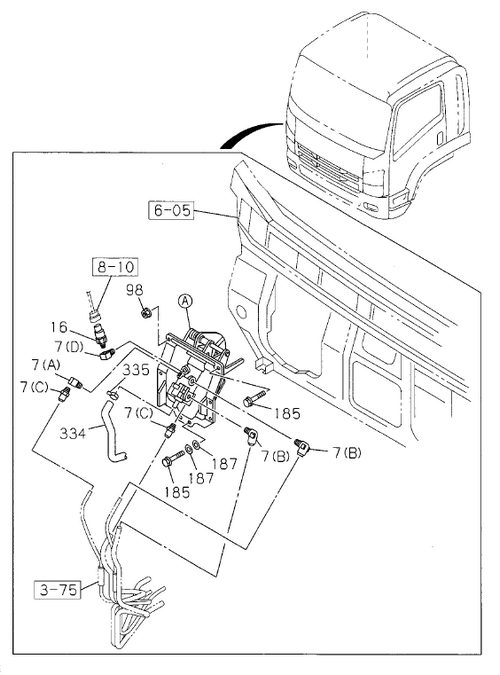

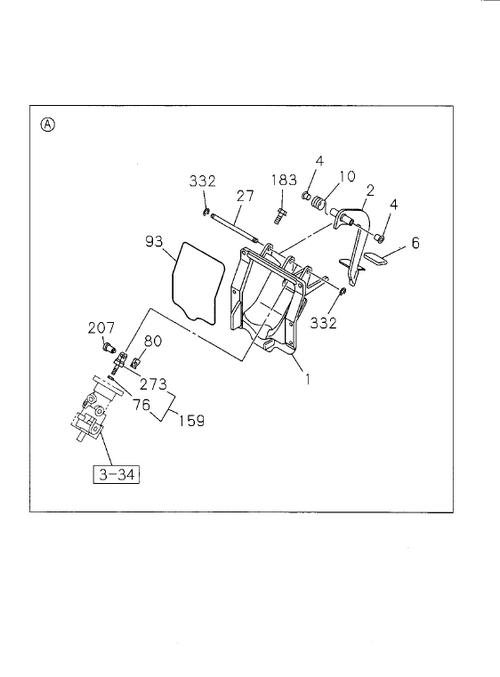

3-10 | BRAKE PEDAL AND CONTROL
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 332 | I0-91805 512-0 | RING; SNAP | 2 | 1108- | A | ID=12 | ||
| 187 | I0-91614 808-0 | WASHER; PL,BRKT | 4 | 1108- | A | ID=8.4 OD=26 | ||
| 7 | I1-09661 303-0 | CONNECTOR; BRK VALVE | 1 | 1403- | AB | (A) PT3/8 ELBOW | ||
| 27 | I8-98057 231-0 | SHAFT; BRK PEDAL | 1 | 1108- | A | |||
| 1 | I8-98071 972-1 | BRACKET ASM; PEDAL | 1 | 1108- | A | |||
| 334 | I8-97611 145-A | HOSE; AIR,BRK | 1 | 1108- | A | |||
| 335 | I1-09704 102-0 | CLAMP; HOSE | 1 | 1403- | B | (B) ID=14 | ||
| 6 | I8-98056 865-0 | COVER; BRK PEDAL | 1 | 1108- | A | |||
| 185 | I8-98057 109-0 | BOLT; BRKT | 7 | 1108- | A | M8X2 5 FLANGE | ||
| 334 | I8-97611 145-A | HOSE; AIR,BRK | 1 | 1312-1402 | A | (A) | ||
| 7 | I1-09660 965-0 | CONNECTOR; BRK VALVE | 2 | 1108- | A | (C) DIN12 & R3/8 STRAIGHT | ||
| 335 | I8-98025 921-0 | CLAMP; HOSE | 1 | 1108- | A | ID=2 4 | ||
| 273 | I8-98057 233-0 | ROD; PULL | 1 | 1108- | A | |||
| 207 | I8-98147 657-0 | PIN; JOINT,BRK PEDAL LINK | 1 | 1108- | A | |||
| 7 | I1-09661 303-0 | CONNECTOR; BRK VALVE | 1 | 1108- | A | (A) PT3/8 ELBOW | ||
| 80 | I8-98007 161-0 | PIN; SNAP,BRK PEDAL | 1 | 1108- | A | |||
| 76 | I0-91180 108-0 | NUT; PUSH ROD | 1 | 1108- | A | M8 FLANGE | ||
| 16 | I8-98010 857-0 | SWITCH; STOP LAMP | 1 | 1108- | A | |||
| 334 | I8-98251 374-0 | HOSE;TRLR, AIR BRK | 1 | 1403- | B | GVR-TH | ||
| 183 | I0-28660 830-0 | BOLT; BRK VLV | 4 | 1108- | A | M8X3 0 FLANGE | ||
| 159 | I8-98057 234-0 | ROD ASM; PUSH,BRK | 1 | 1108- | A | |||
| 7 | I1-09661 303-0 | CONNECTOR; BRK VALVE | 1 | 1312-1402 | A | (A) PT3/8 ELBOW | ||
| 334 | I8-97611 145-A | HOSE; AIR,BRK | 1 | 1403- | AB | (A) | ||
| 10 | I8-98367 967-0 | SPRING; RETURN,BRK PEDAL | 1 | 1108- | A | |||
| 1 | I8-98071 972-1 | BRACKET ASM; PEDAL | 1 | 1108- | A | |||
| 7 | I1-09661 303-0 | CONNECTOR; BRK VALVE | 1 | 1108- | A | (A) PT3/8 ELBOW | ||
| 7 | I1-09660 959-0 | CONNECTOR; BRK VALVE | 2 | 1108- | A | (B) DIN12 & R3/8 ELBOW | ||
| 98 | I0-91180 208-0 | NUT; BRKT | 1 | 1108- | A | M8 FLANGE | ||
| 93 | I1-48199 534-0 | SEAL; BRK PEDAL | 1 | 1108- | A | |||
| 7 | I1-09660 693-0 | CONNECTOR; BRK VALVE | 1 | 1108- | A | (D) PT1/4 2WAY | ||
| 4 | I8-94238 596-0 | BUSHING; BRK PEDAL | 2 | 1108- | A | |||
| 2 | I8-98057 226-0 | PEDAL; BRK | 1 | 1108- | A | |||
| 334 | I8-97611 145-A | HOSE; AIR,BRK | 1 | 1108- | A |
