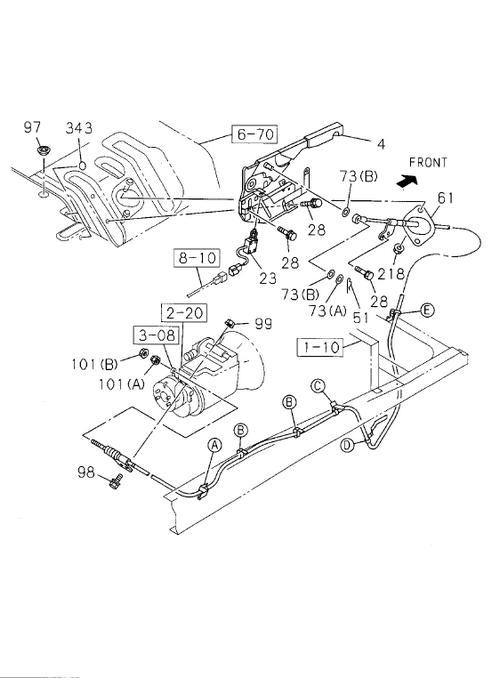

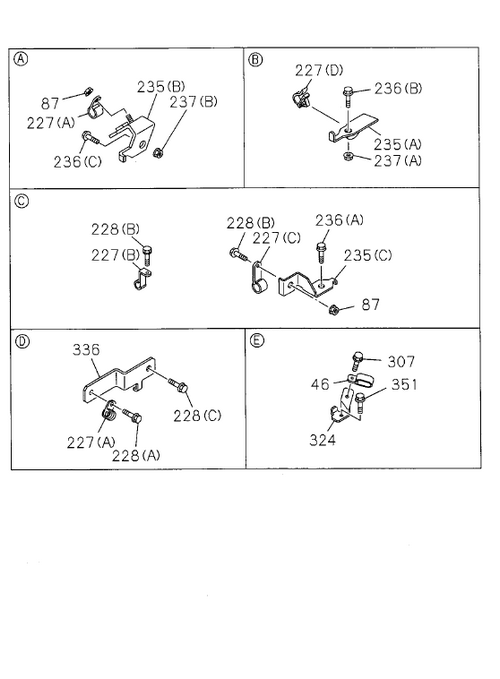

3-11 | PARKING BRAKE CONTROL
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 343 | I1-76798 029-0 | SEAL | 4 | 1312- | A | OD=25 BLACK | ||
| 227 | I1-09701 014-0 | CLIP; RAD | 1 | 1108- | A | (C) ID=14.5 L=40 | ||
| 4 | I1-79996 549-0 | STEM; PARKING BRK | 1 | 1108- | A | |||
| 228 | I0-28050 816-0 | BOLT; CLIP RAD MTG | 1 | 1108- | A | (A) M8X16 FLANGE | ||
| 61 | I8-98106 061-A | CABLE; PARKING BRK | 1 | 1108- | A | L=4615 | ||
| 227 | I1-09700 944-0 | CLIP; RAD | 1 | 1312-1402 | A | (B) ID=25 H=30 L=35 | ||
| 99 | I7-05110 010-A | NUT; CONT CABLE | 2 | 1403- | AB | M10 FLANGE | ||
| 227 | I1-09700 944-0 | CLIP; RAD | 1 | 1403- | AB | (B) ID=25 H=30 L=35 | ||
| 228 | I8-98051 939-0 | BOLT; CLIP RAD MTG | 2 | 1108- | A | (C) M8X16 W/LK&PL WASHER | ||
| 98 | I0-28651 030-0 | BOLT; RR COVER | 2 | 1108- | A | M10X3 0 FLANGE | ||
| 228 | I8-98051 939-0 | BOLT; CLIP RAD MTG | 1 | 1406- | A | ZF9S1110 DD M/T(Y5P) (C) M8X16 W/LK&PL WASHER | ||
| 218 | I0-91180 108-0 | NUT; BRKT,PARKING BRK CABLE | 2 | 1108- | A | M8 FLANGE | ||
| 235 | I8-98077 903-2 | BRACKET; CONT CABLE TO FRAME | 1 | 1108- | A | (B) | ||
| 307 | I0-51640 825-0 | BOLT; BRKT,PARKING BRK CABLE | 1 | 1108- | A | |||
| 227 | I1-09700 944-0 | CLIP; RAD | 1 | 1108- | A | (B) ID=25 H=30 L=35 | ||
| 23 | I1-82440 100-0 | SWITCH; PARKING BRK | 1 | 1108- | A | |||
| 51 | I1-09987 243-1 | PIN; JOINT,RELAY LEVER | 1 | 1108- | A | |||
| 227 | I0-95235 235-0 | CLIP; RAD | 2 | 1108- | A | (A) ID=13 L=2 0 | ||
| 413 | I8-98356 021-0 | JOINT; PARK BRK CABLE | 1 | 2002- | ALL | |||
| 235 | I8-98126 426-0 | BRACKET; CONT CABLE TO FRAME | 1 | 1108- | A | (C) | ||
| 336 | I8-98182 153-A | BRACKET; RADIATOR | 2 | 1406- | A | |||
| 236 | I0-28650 825-0 | BOLT; BRKT TO FRAME | 1 | 1108- | A | (A) M8X25 FLANGE IDN | ||
| 237 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 1108- | A | (B) M10 FLANGE | ||
| 101 | I1-46259 007-0 | NUT; CABLE TO LEVER | 1 | 1108- | A | (A) | ||
| 237 | I7-05110 010-A | NUT; BRKT TO FRAME | 2 | 1406- | B | (B) M10 FLANGE | ||
| 99 | I7-05110 010-A | NUT; CONT CABLE | 2 | 1312-1402 | A | M10 FLANGE | ||
| 236 | I0-28651 035-0 | BOLT; BRKT TO FRAME | 1 | 1108- | A | (B) M10X3 5 FLANGE IDN | ||
| 351 | I0-51640 825-0 | BOLT; CLIP | 3 | 1108- | A | |||
| 73 | I0-91610 516-0 | WASHER; PL,CABLE | 1 | 1108- | A | (A) ID=17 OD=30 | ||
| 227 | I1-09700 944-0 | CLIP; RAD | 1 | 1108- | A | (B) ID=25 H=30 L=35 | ||
| 237 | I7-05110 010-A | NUT; BRKT TO FRAME | 2 | 1406- | A | ZF9S1110 DD M/T(Y5P) (B) M10 FLANGE | ||
| 101 | I0-91180 108-0 | NUT; CABLE TO LEVER | 1 | 1108- | A | (B) M8 FLANGE | ||
| 87 | I0-91180 108-0 | NUT | 2 | 1108- | A | M8 FLANGE | ||
| 343 | I1-76798 029-0 | SEAL | 2 | 1403- | B | OD=25 BLACK | ||
| 228 | I8-98051 939-0 | BOLT; CLIP RAD MTG | 2 | 1108- | A | (C) M8X16 W/LK&PL WASHER | ||
| 61 | I8-98106 061-A | CABLE; PARKING BRK | 1 | 1403- | AB | |||
| 227 | I5-09709 020-0 | CLIP; RAD | 2 | 1108- | A | (D) ID=9.5 | ||
| 237 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 1108- | A | (B) M10 FLANGE | ||
| 228 | I8-98051 939-0 | BOLT; CLIP RAD MTG | 1 | 1406- | B | (C) M8X16 W/LK&PL WASHER | ||
| 28 | I8-98059 720-0 | BOLT; HAND BRK LEVER | 4 | 1108- | A | M8X24.5 W/LK&PL WASHER | ||
| 228 | I0-28650 825-0 | BOLT; CLIP RAD MTG | 2 | 1108- | A | (B) M8X25 FLANGE IDN | ||
| 99 | I7-05110 010-A | NUT; CONT CABLE | 2 | 1108- | A | M10 FLANGE | ||
| 73 | I8-94206 429-1 | WASHER; PL,CABLE | 2 | 1108- | A | (B) ID=19 | ||
| 99 | I7-05110 010-A | NUT; CONT CABLE | 2 | 1108- | A | M10 FLANGE | ||
| 228 | I8-98051 939-0 | BOLT; CLIP RAD MTG | 2 | 1312- | A | (C) M8X16 W/LK&PL WASHER | ||
| 236 | I0-28650 830-0 | BOLT; BRKT TO FRAME | 2 | 1108- | A | (C) M8X3 0 FLANGE | ||
| 237 | I7-05110 010-A | NUT; BRKT TO FRAME | 2 | 1403-1405 | B | (B) M10 FLANGE | ||
| 343 | I1-76798 029-0 | SEAL | 4 | 1108- | A | OD=25 BLACK | ||
| 46 | I0-95235 535-0 | CLIP; FRT CABLE TO FLOOR | 1 | 1108- | A | ID=16 L=2 0 | ||
| 237 | I0-91180 108-0 | NUT; BRKT TO FRAME | 2 | 1108- | A | (A) M8 FLANGE | ||
| 97 | I8-94122 971-0 | GROMMET; PARKING BRK CABLE | 1 | 1108- | A | OD=35 IDN | ||
| 324 | I8-98067 482-1 | BRACKET | 1 | 1108- | A | |||
| 336 | I8-98182 153-A | BRACKET; RADIATOR | 2 | 1403-1405 | B | |||
| 336 | I8-98182 153-A | BRACKET; RADIATOR | 2 | 1406- | B | |||
| 235 | I8-98100 152-0 | BRACKET; CONT CABLE TO FRAME | 1 | 1108- | A | (A) | ||
| 336 | I8-98044 680-0 | BRACKET; RADIATOR | 1 | 1108- | A | |||
| 343 | I1-76798 029-0 | SEAL | 4 | 1108- | A | OD=25 BLACK | ||
| 228 | I8-98051 939-0 | BOLT; CLIP RAD MTG | 1 | 1403-1405 | B | (C) M8X16 W/LK&PL WASHER |
