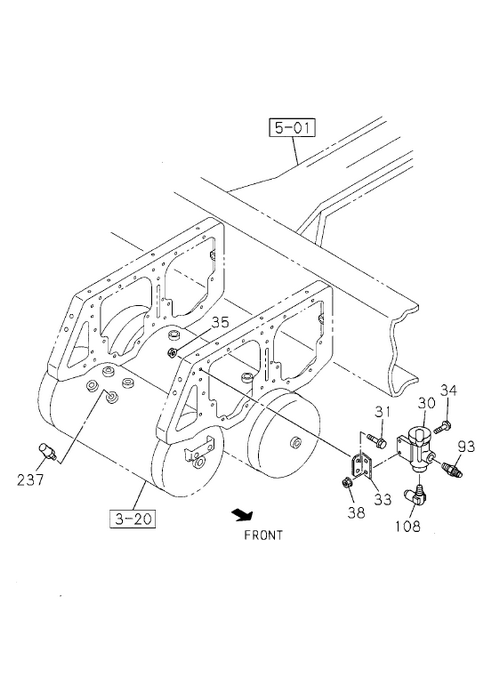

3-22 | AIR CONTROL PARTS
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

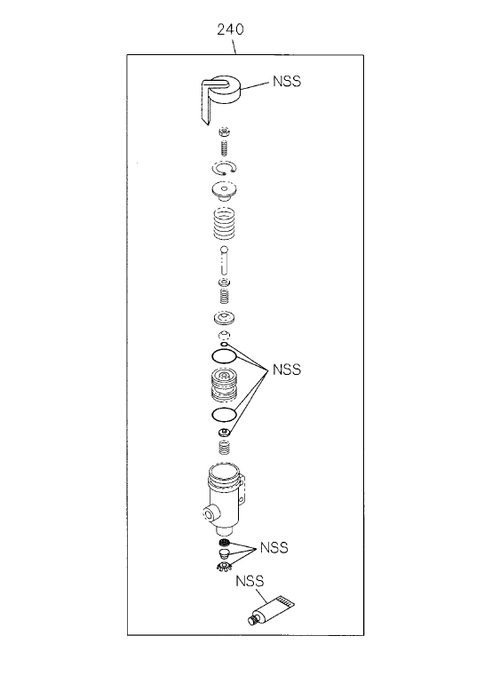

| 240 | I1-85576 467-0 | REPAIR KIT; AIR CONT GOV | 1 | 1108- | A | |||
| 30 | I1-48350 093-2 | GOVERNOR; AIR CONT | 1 | 1108- | A | |||
| 93 | I1-09650 074-1 | CONNECTOR; GOV | 1 | 1108- | A | M12 & PT1/4 STRAIGHT | ||
| 34 | I0-28650 825-0 | BOLT; BRKT,GOV | 2 | 1108- | A | M8X25 FLANGE IDN | ||
| 237 | I1-48320 012-2 | VALVE; SAFETY | 1 | 1108- | A | |||
| 108 | I1-09650 430-0 | CONNECTOR; ELBOW | 1 | 1108- | A | M12 & PT1/4 ELBOW | ||
| 38 | I0-91180 108-0 | NUT; BRKT,GOV | 2 | 1108- | A | M8 FLANGE | ||
| 33 | I8-98120 459-1 | BRACKET; GOV, AIR CONT | 1 | 1403- | B | GVR-TH | ||
| 33 | I8-98120 459-1 | BRACKET; GOV,AIR CONT | 1 | 1108- | A | |||
| 35 | I0-91180 108-0 | NUT; GOV TO FRAME | 2 | 1108- | A | M8 FLANGE | ||
| 31 | I0-28650 825-0 | BOLT; GOV TO FRAME | 2 | 1108- | A | M8X25 FLANGE IDN |
