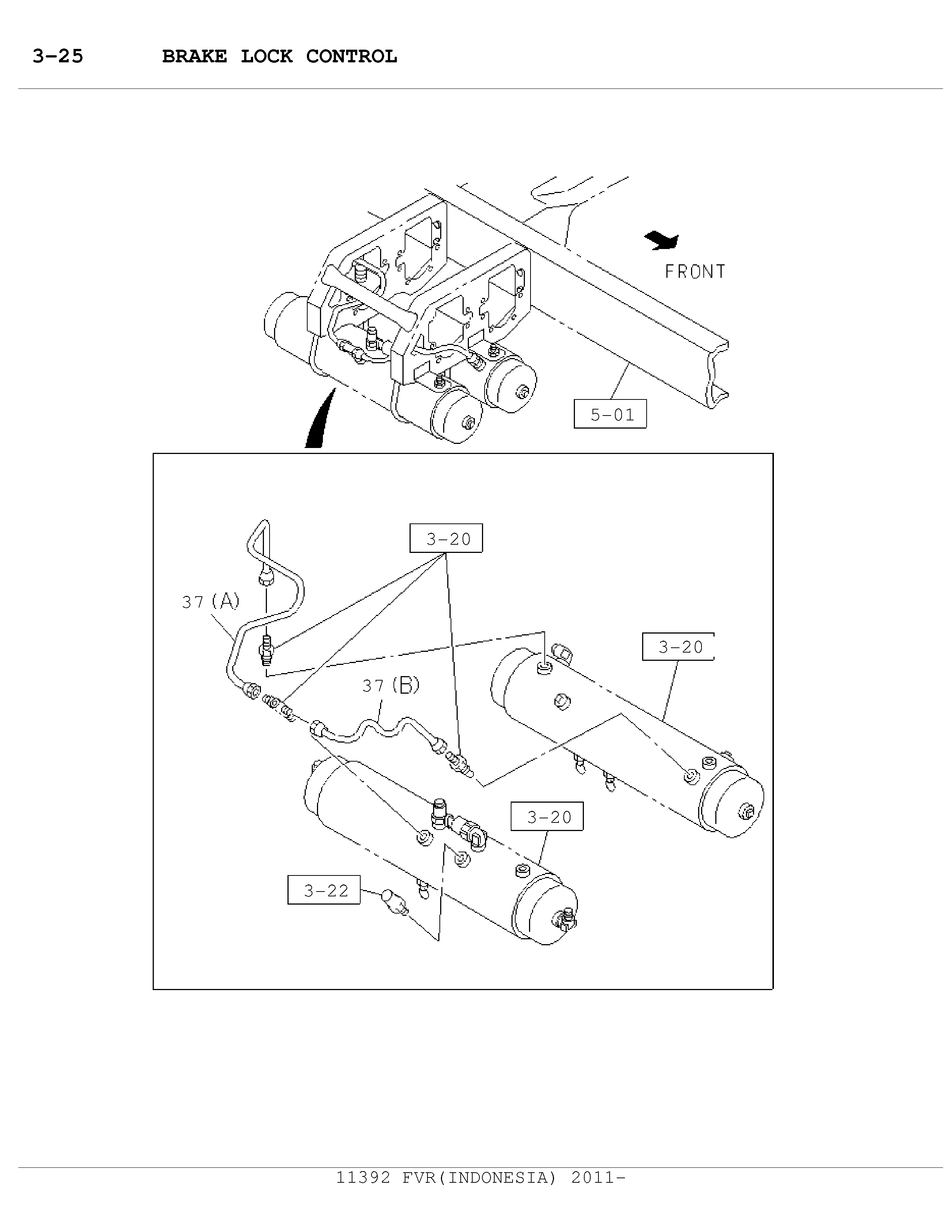

3-25 | BRAKE LOCK CONTROL
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 37 | I8-98178 585-A | PIPE; AIR,CHECK VLV TO DBL CHECK VLV | 1 | 1312-1402 | A | (B) | ||
| 37 | I8-98178 306-A | PIPE; AIR,CHECK VLV TO DBL CHECK VLV | 1 | 1108- | A | (A) | ||
| 37 | I8-98178 585-A | PIPE; AIR,CHECK VLV TO DBL CHECK VLV | 1 | 1108- | A | (B) | ||
| 35 | I7-05110 010-A | NUT; BRKT | 2 | 1403- | B | M10 FLANGE | ||
| 28 | I8-98273 321-0 | BRACKET; CONT VLV | 1 | 1403- | B | GVR-TH | ||
| 37 | I8-98178 306-A | PIPE; AIR,CHECK VLV TO DBL CHECK VLV | 1 | 1312- | A | (A) | ||
| 37 | I8-98197 586-0 | PIPE; AIR, CHECK VLV TO DBL CHECK VLV GV | 1 | 1403- | AB |
